1923 Yacht Blueprint – John Alden Design 138B Auxiliary Schooner Construction Plan

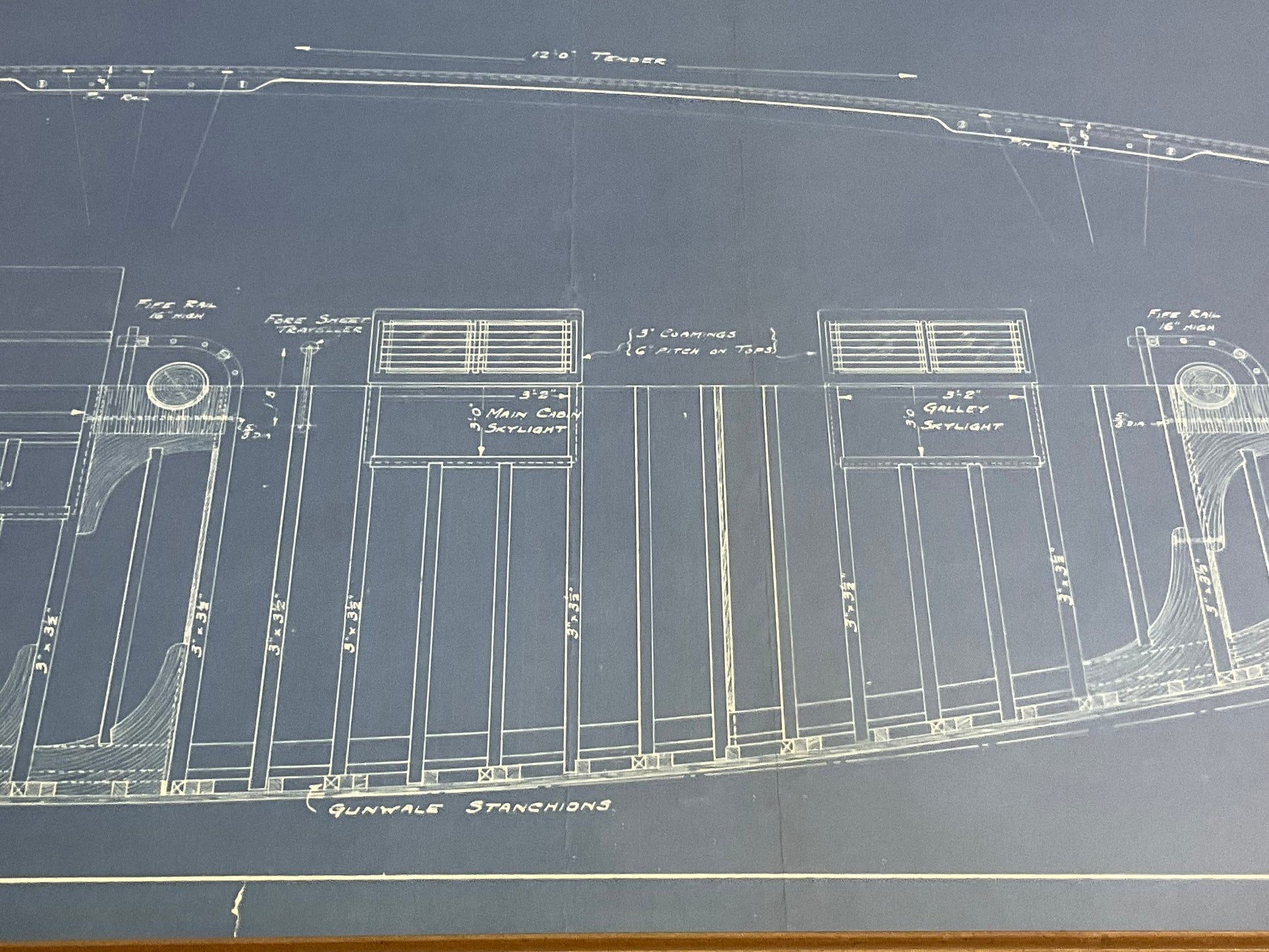

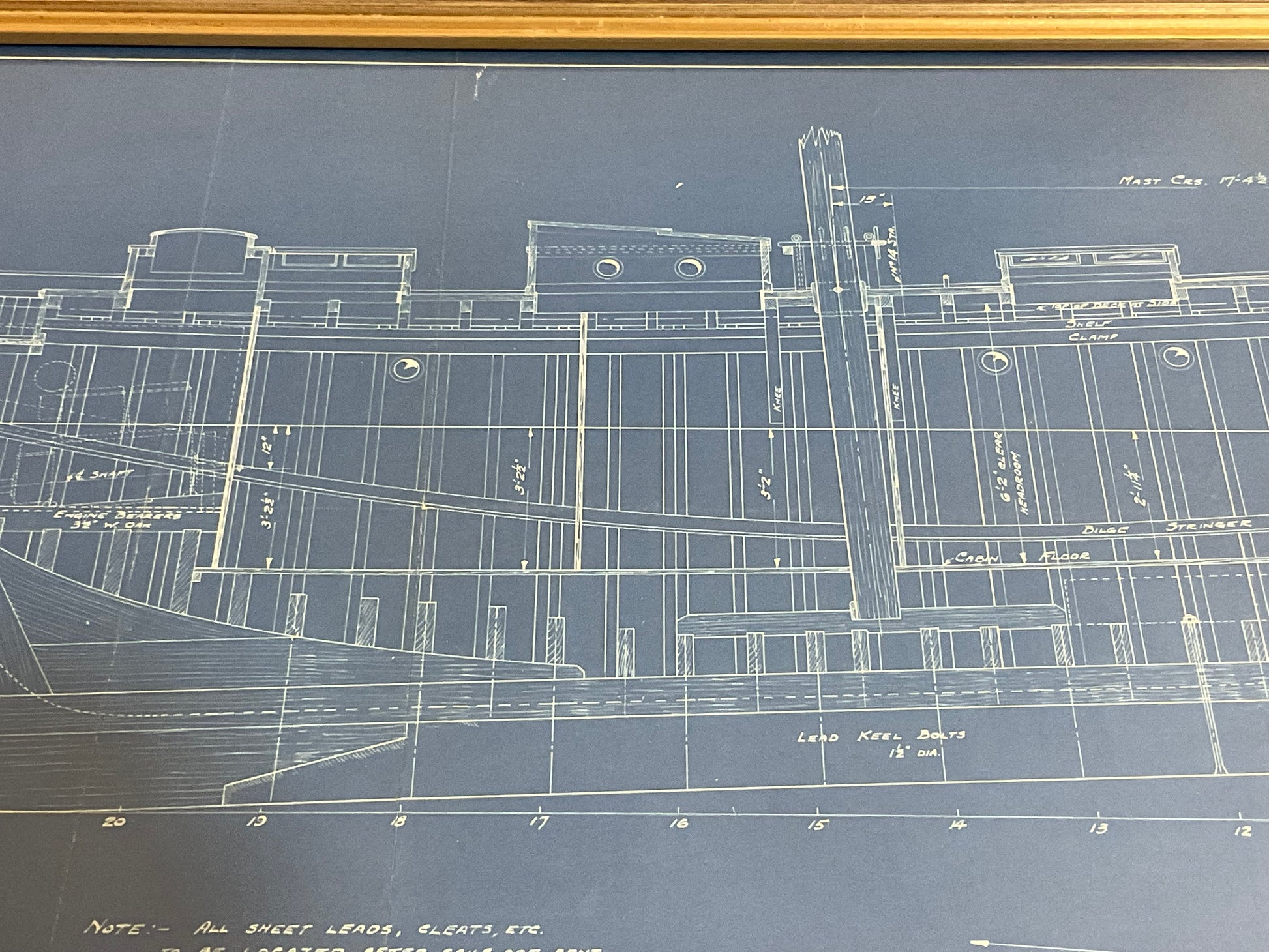

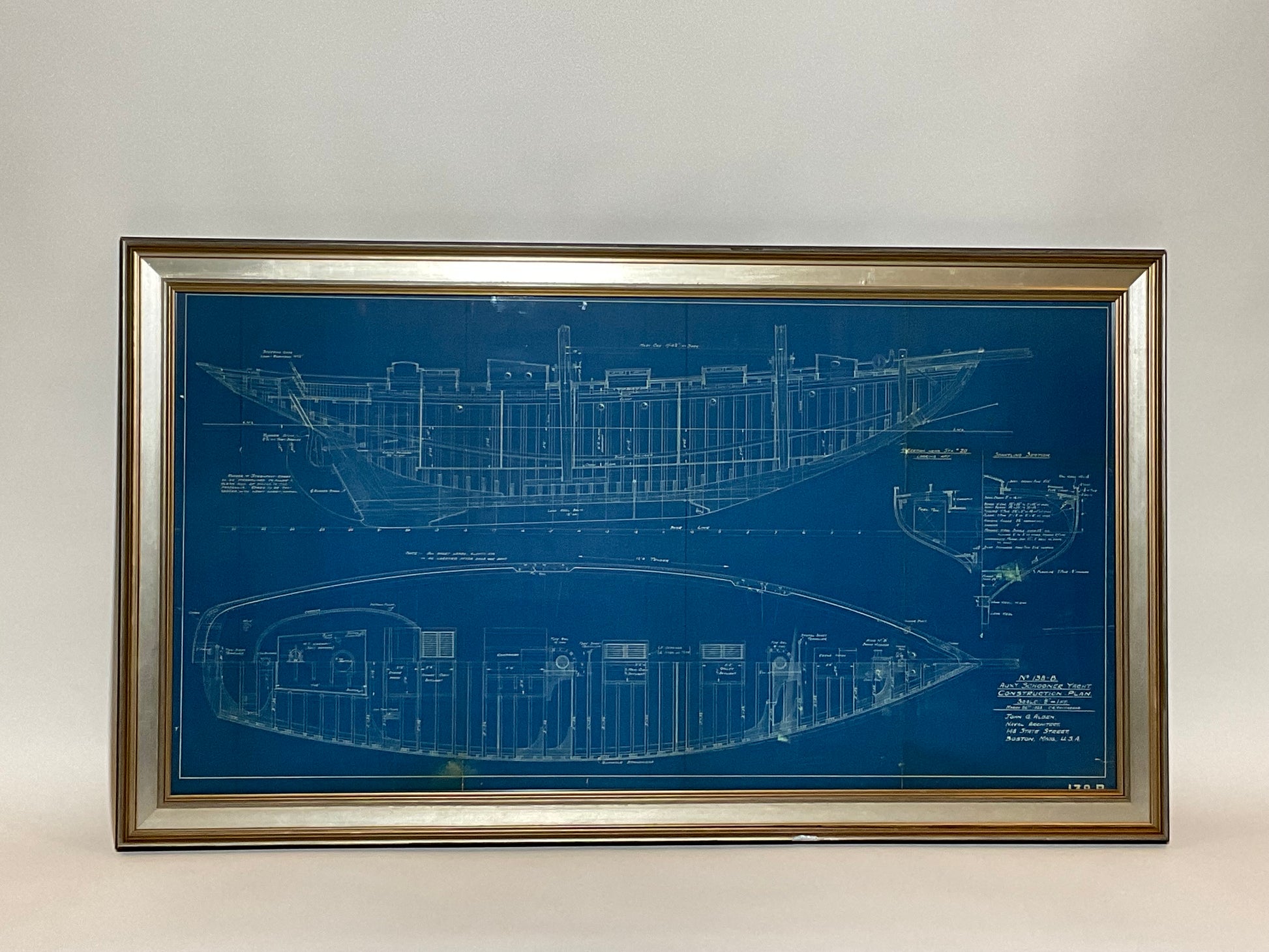

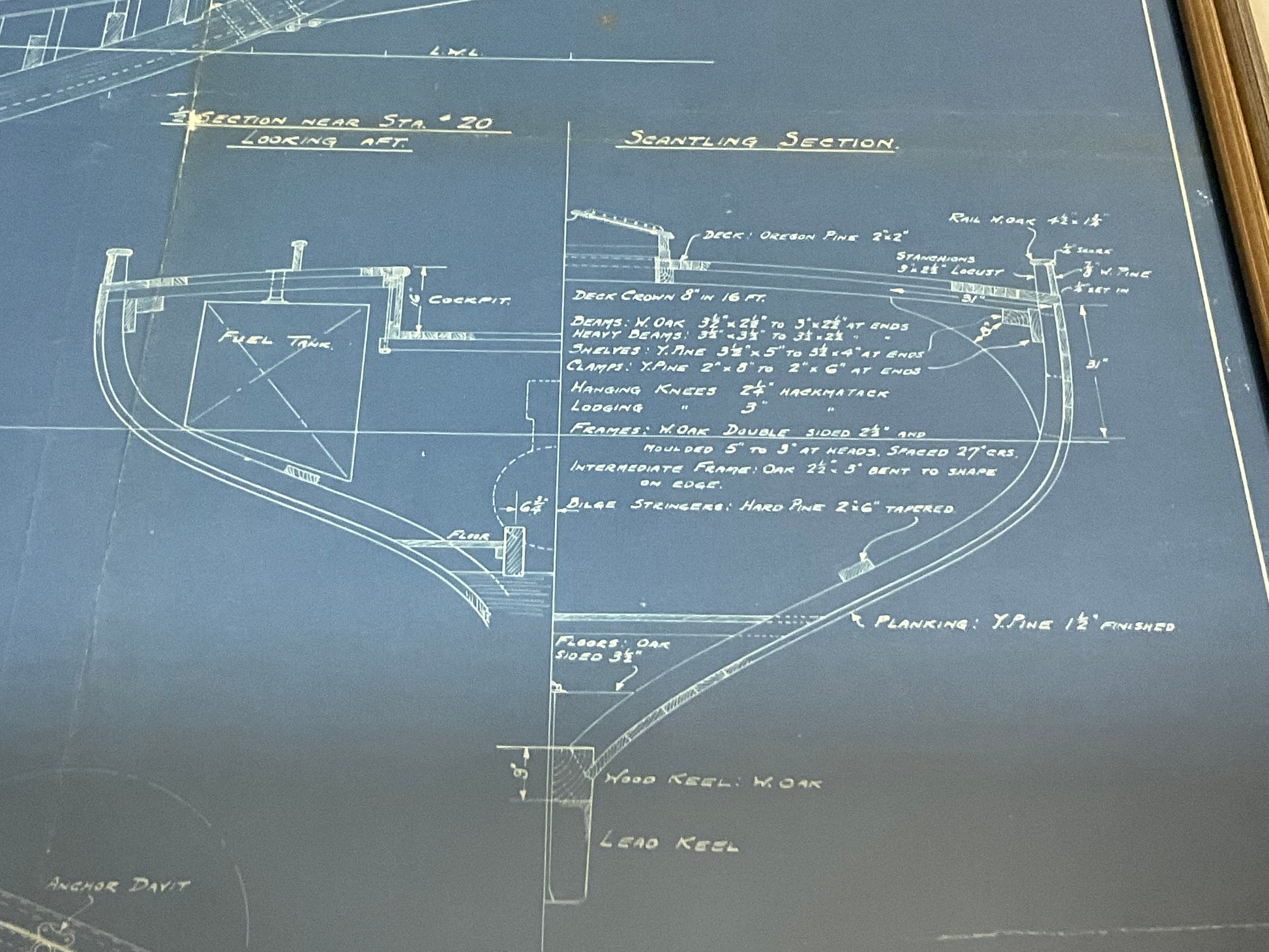

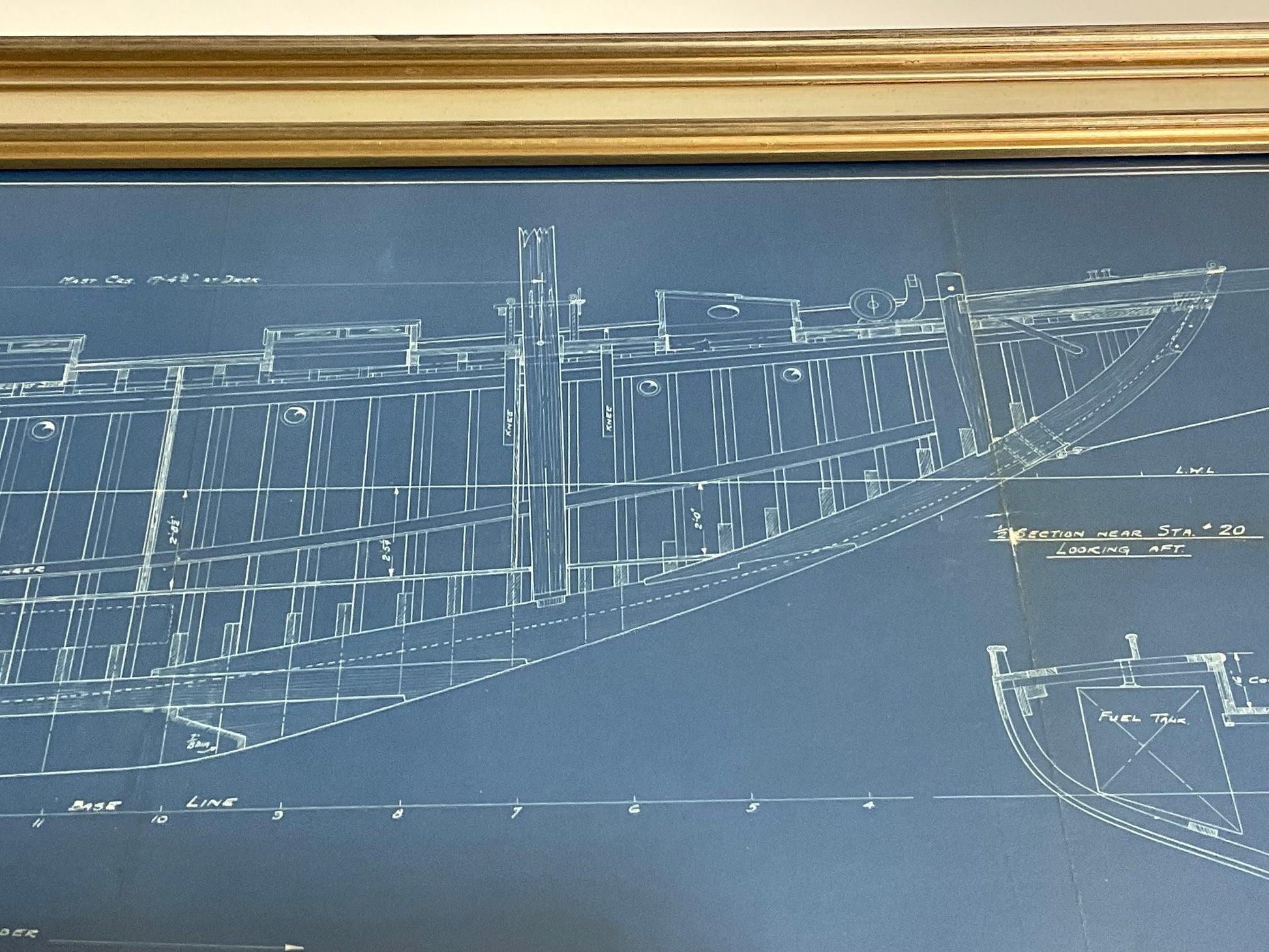

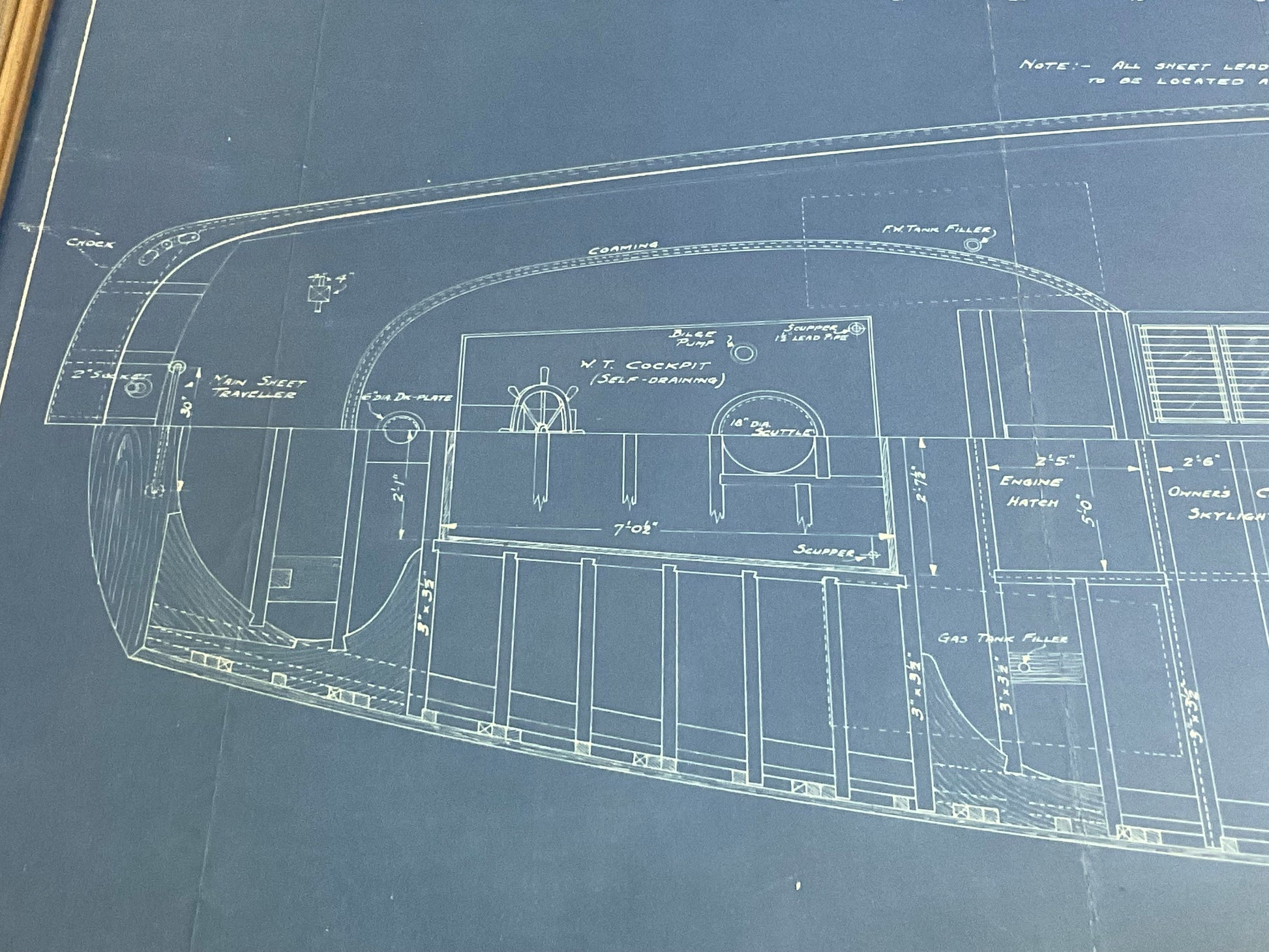

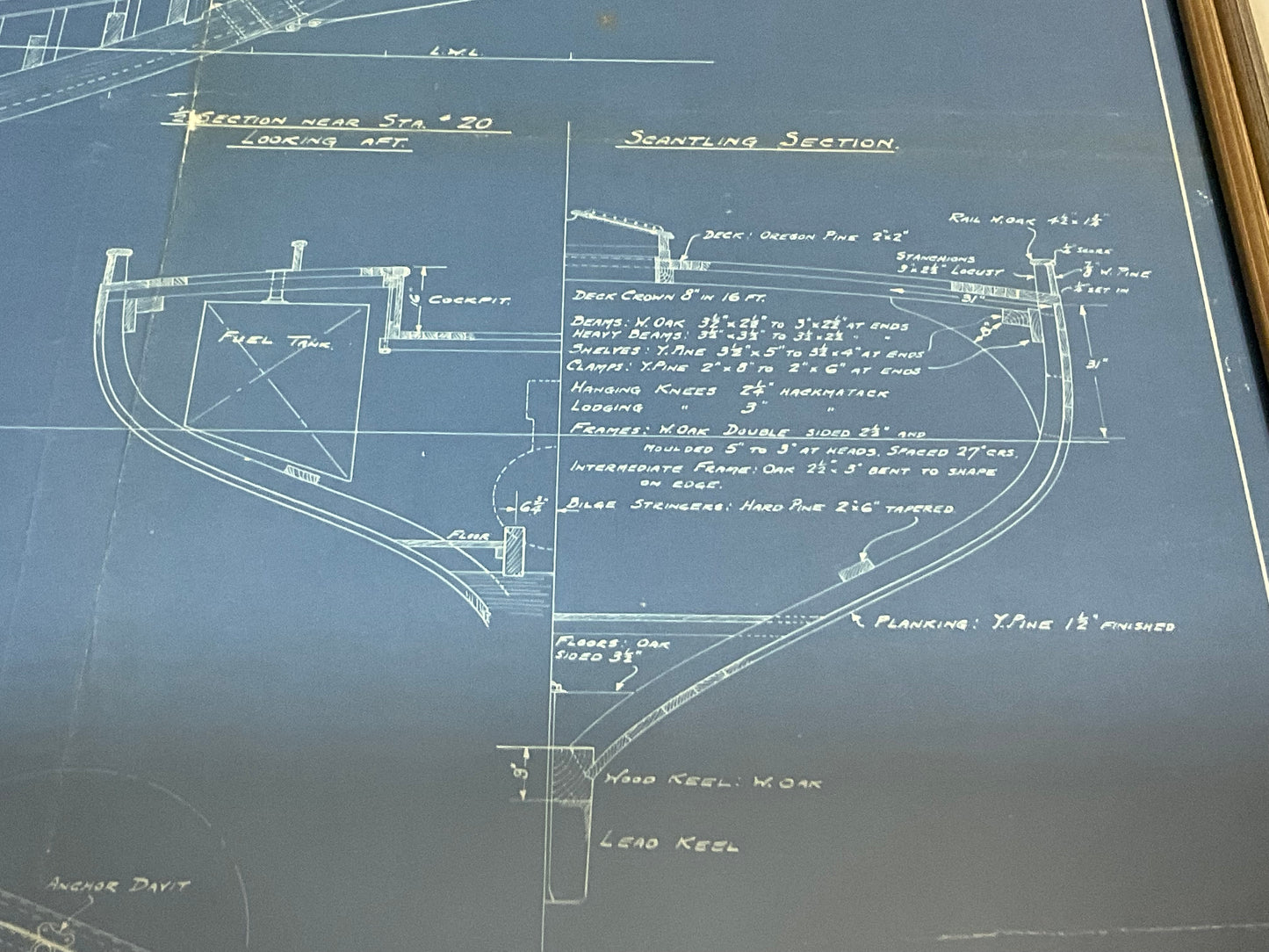

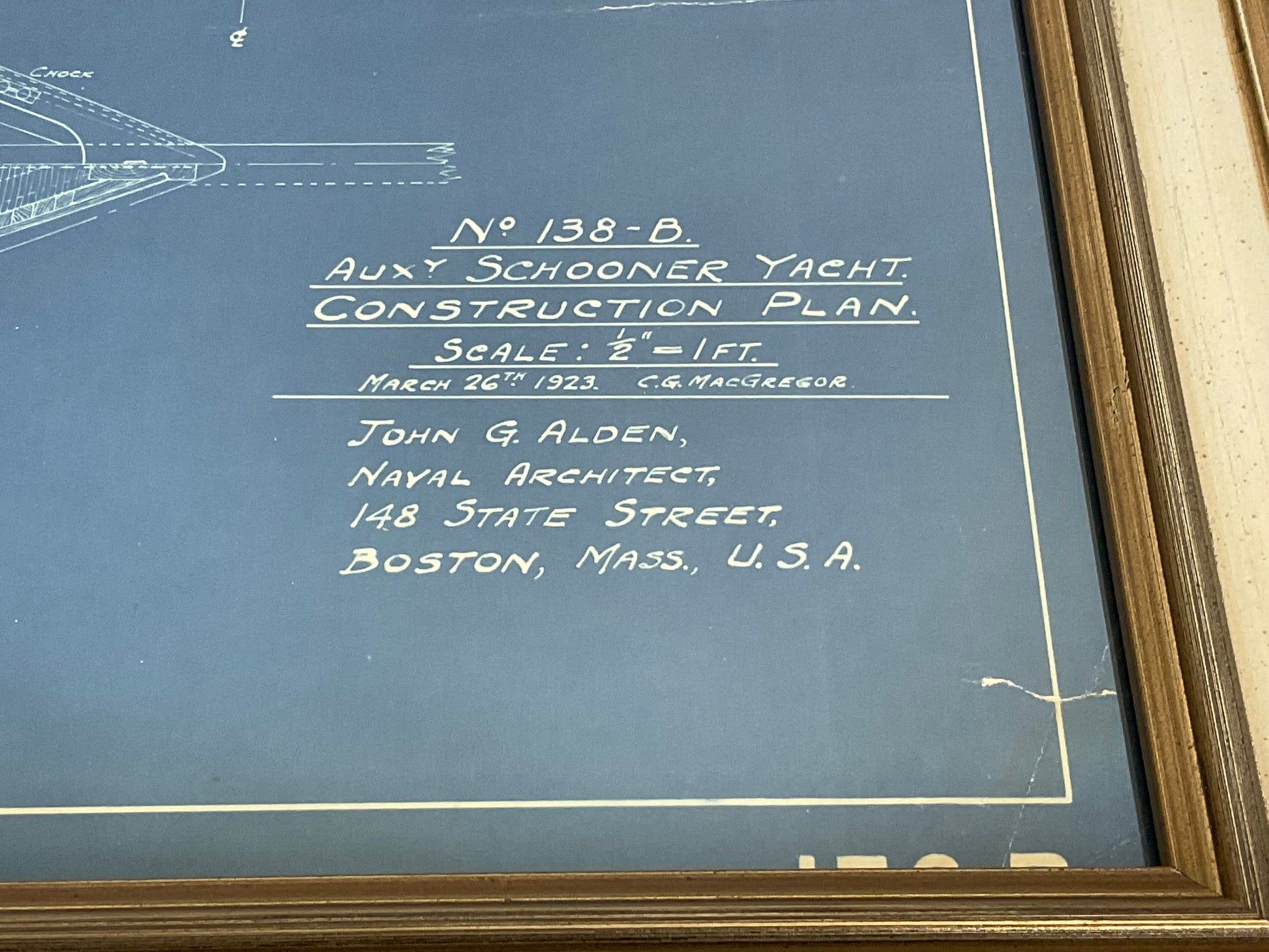

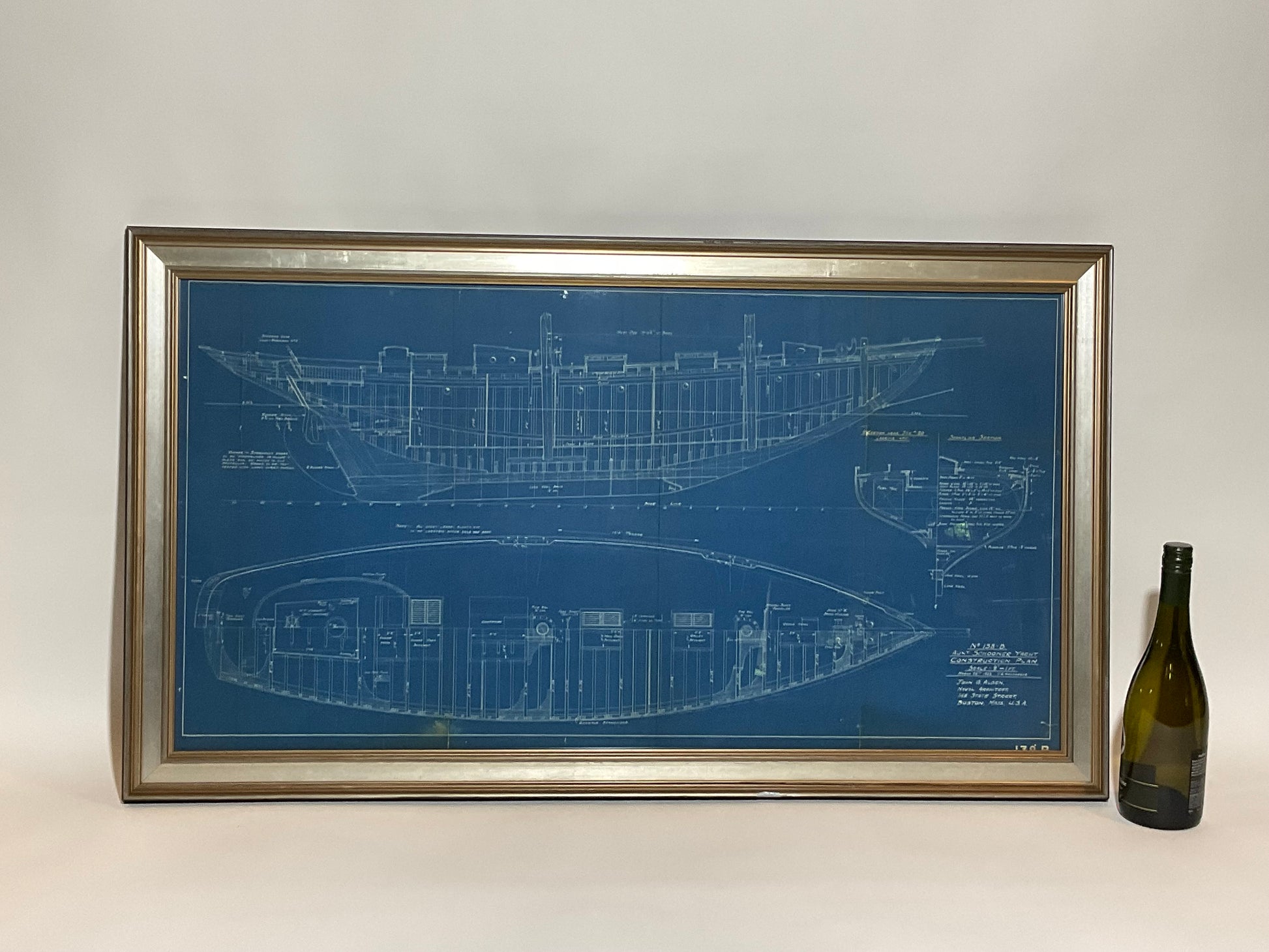

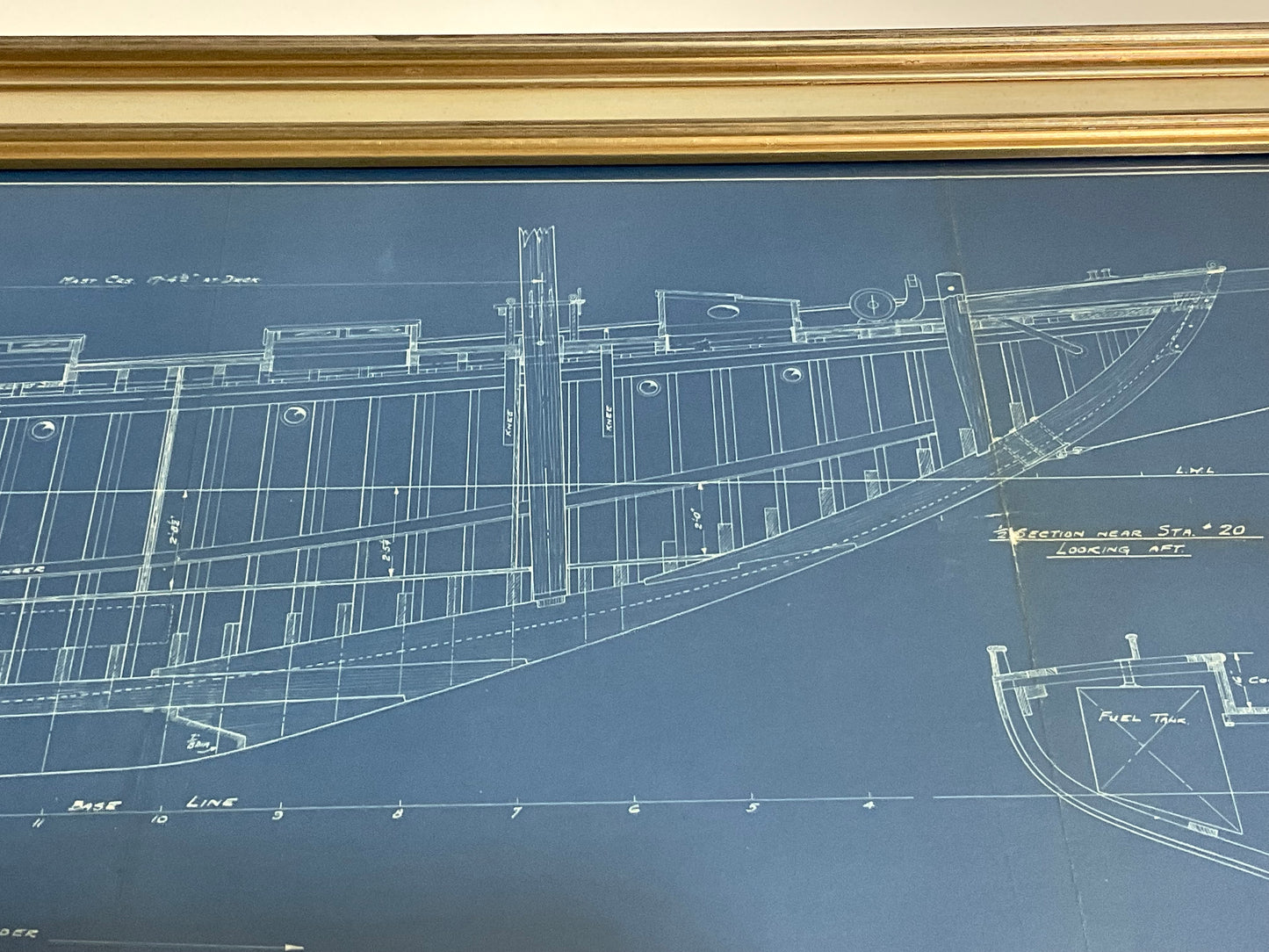

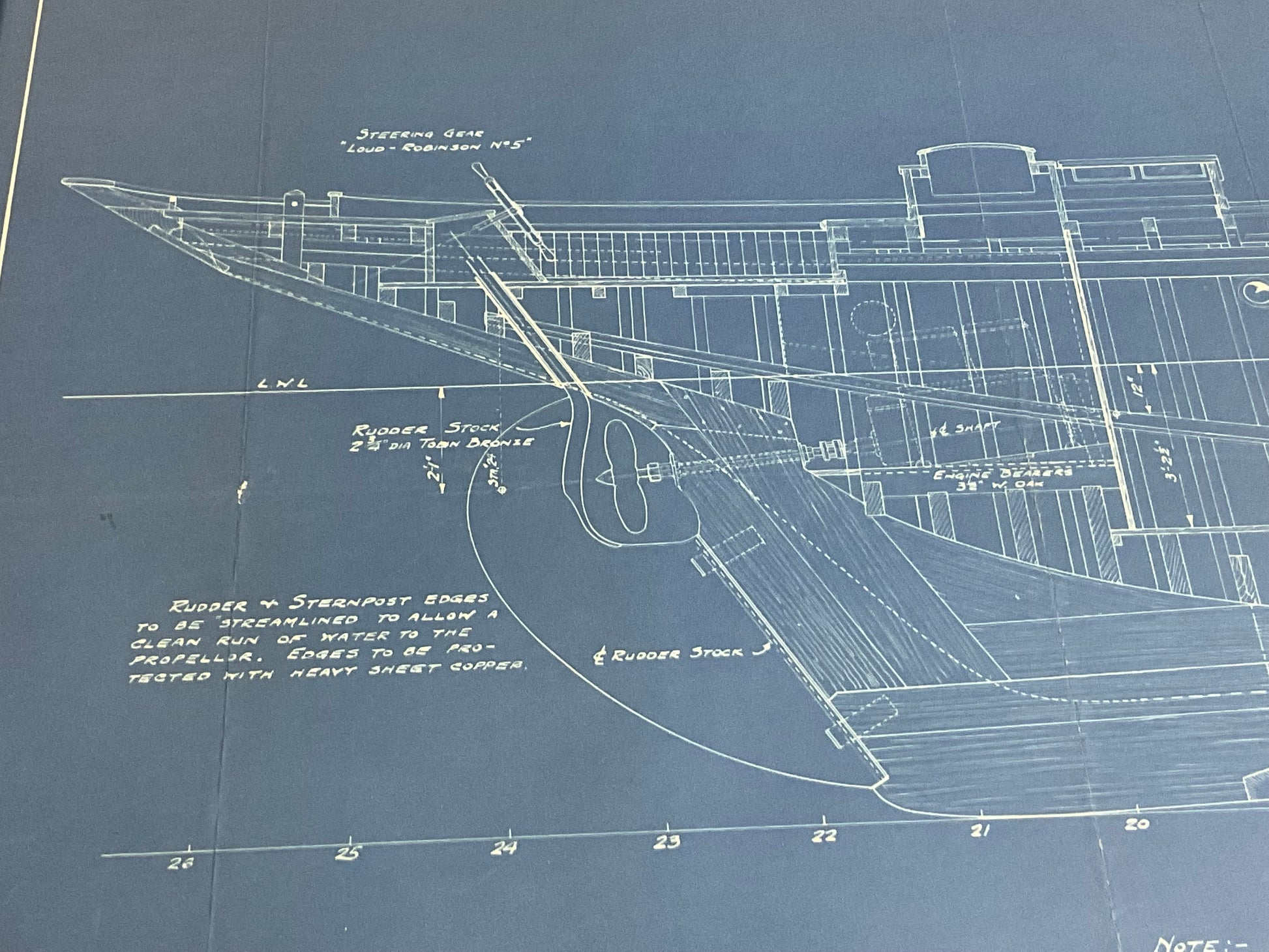

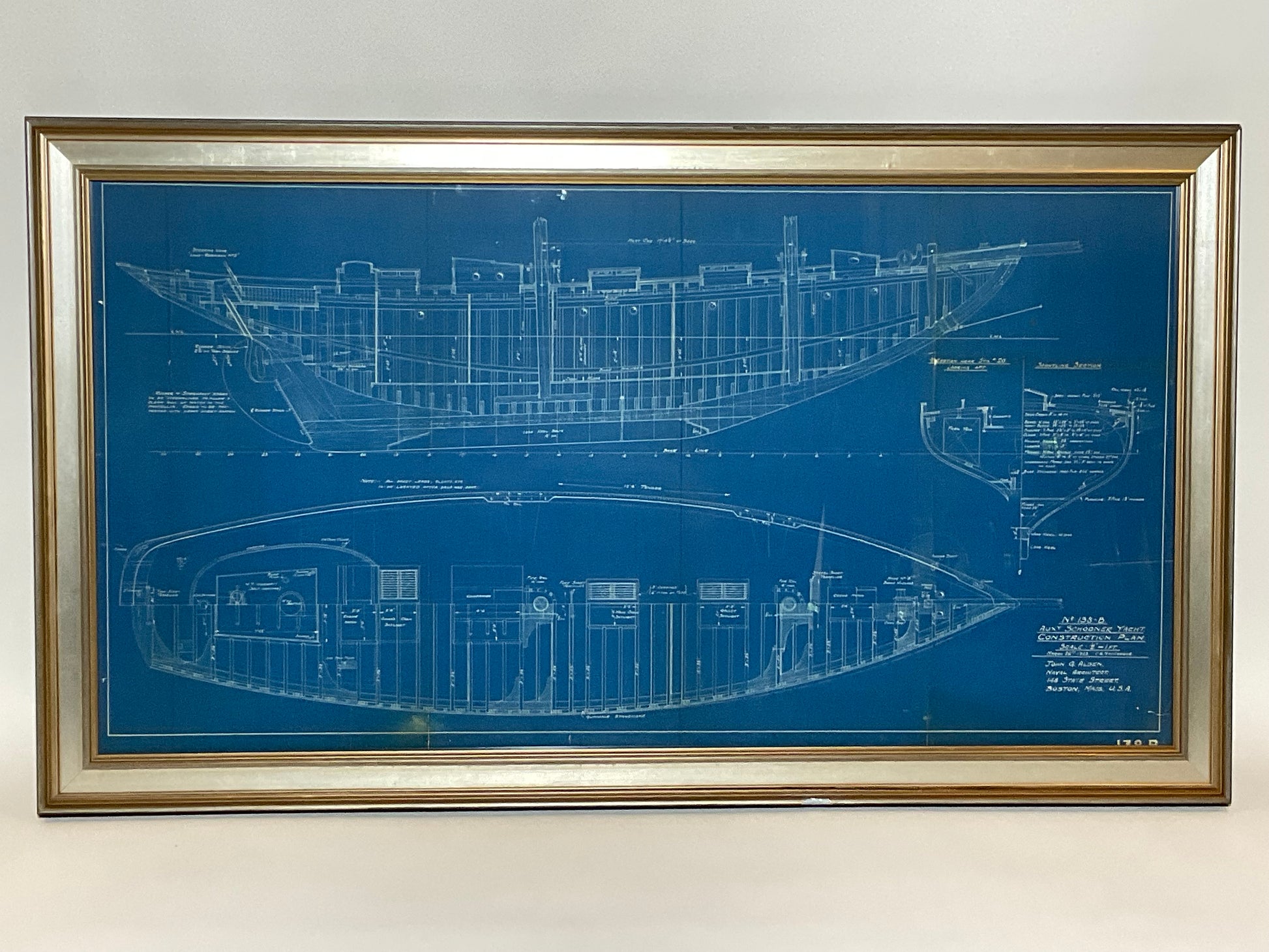

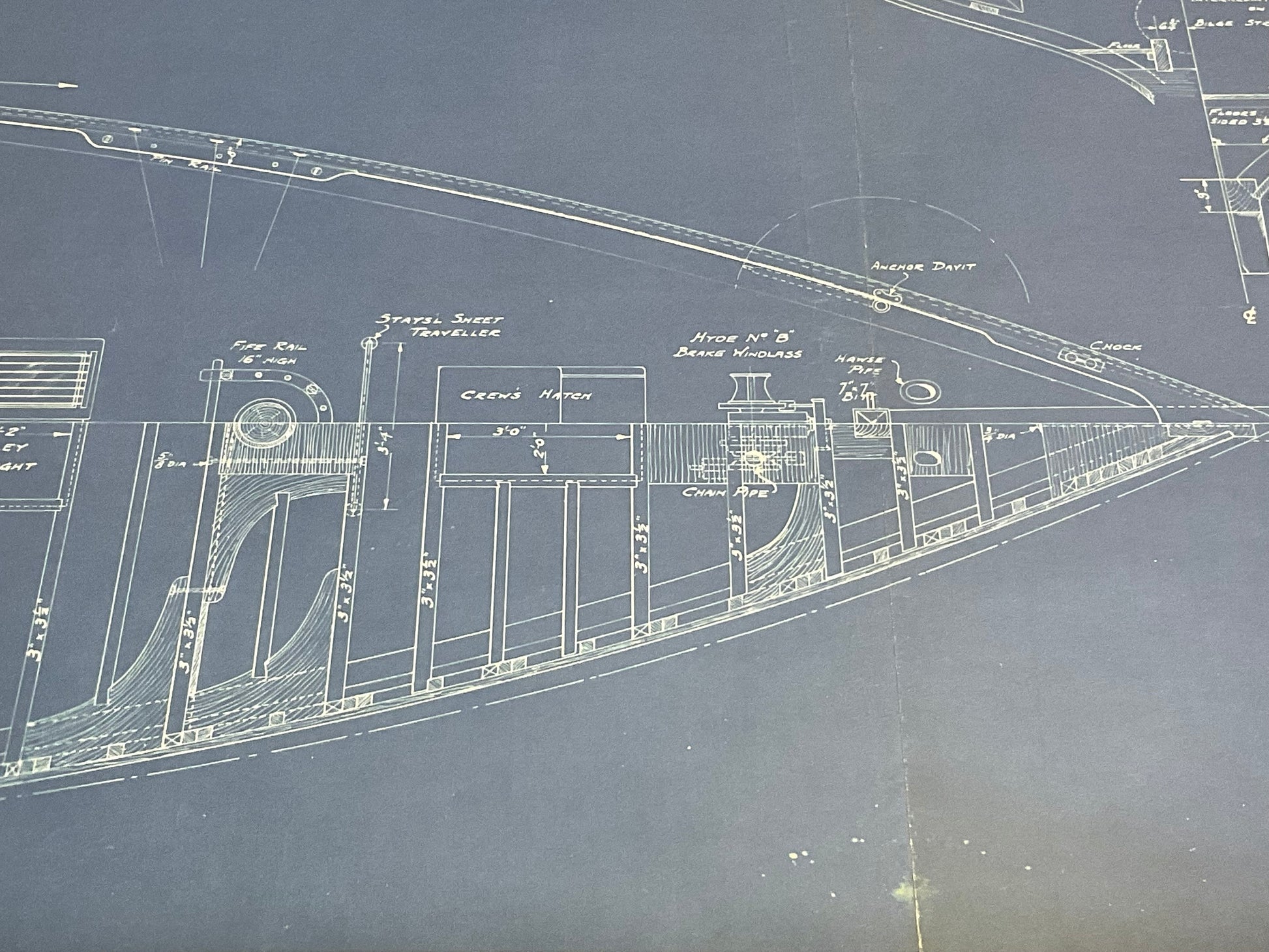

Yacht blueprint showing plan for an auxiliary schooner yacht. This is the construction plan for John Alden Design 138B. This blueprint shows the hull and deck frames, keel skylights, masts, cockpit, rudder, prop, etc. The drawing is to a scale of one-half inch equals one foot. Dated March 26, 1923, and signed by C.G. McGregor. John G. Alden, Naval Architect, 148 State St, Boston, MA, U.S.A.

Weight:    10 lbs.
Overall Dimensions:    24"H x 41"W
Made:    America
Material:    Paper
Date:    1923
