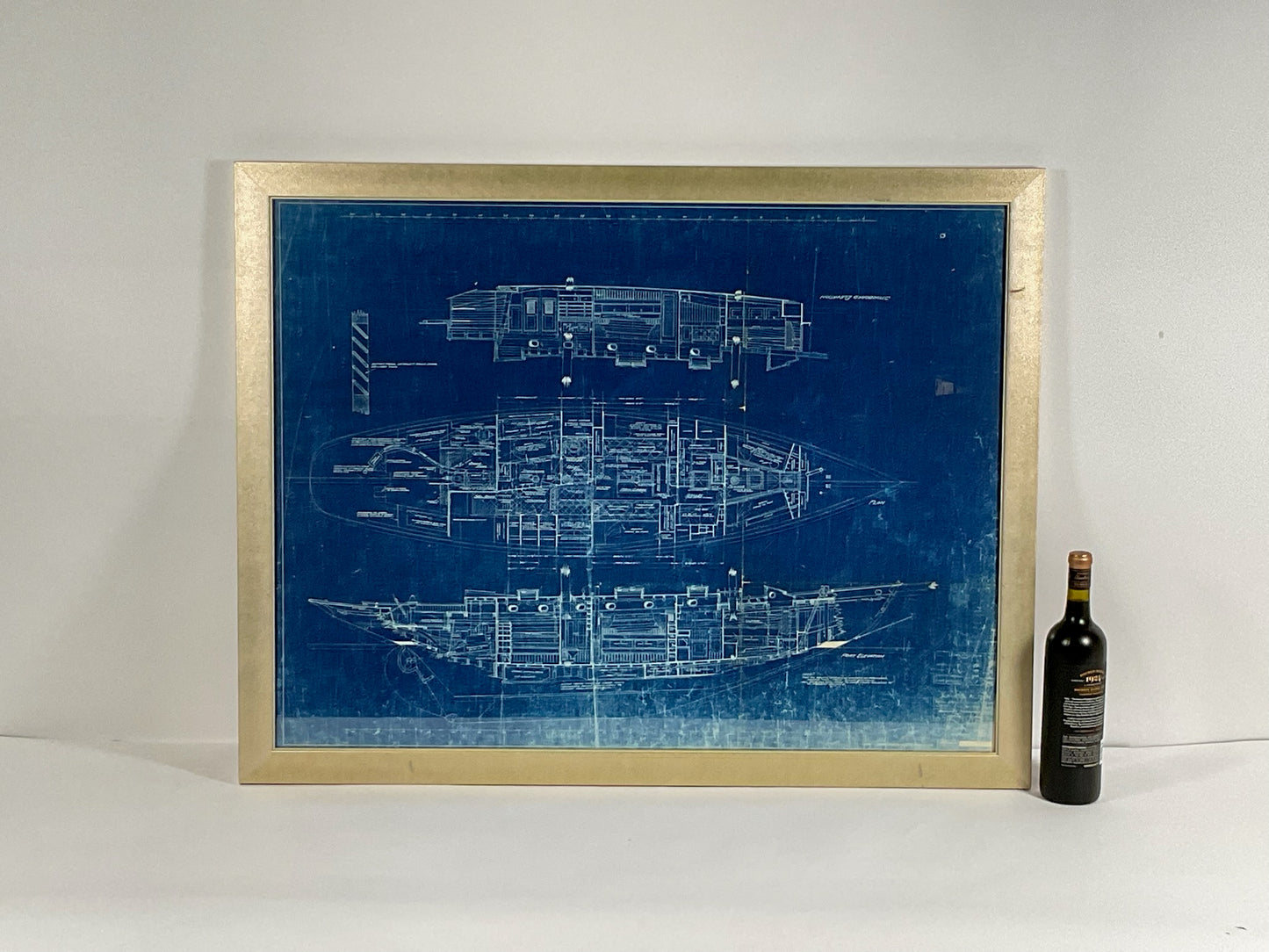

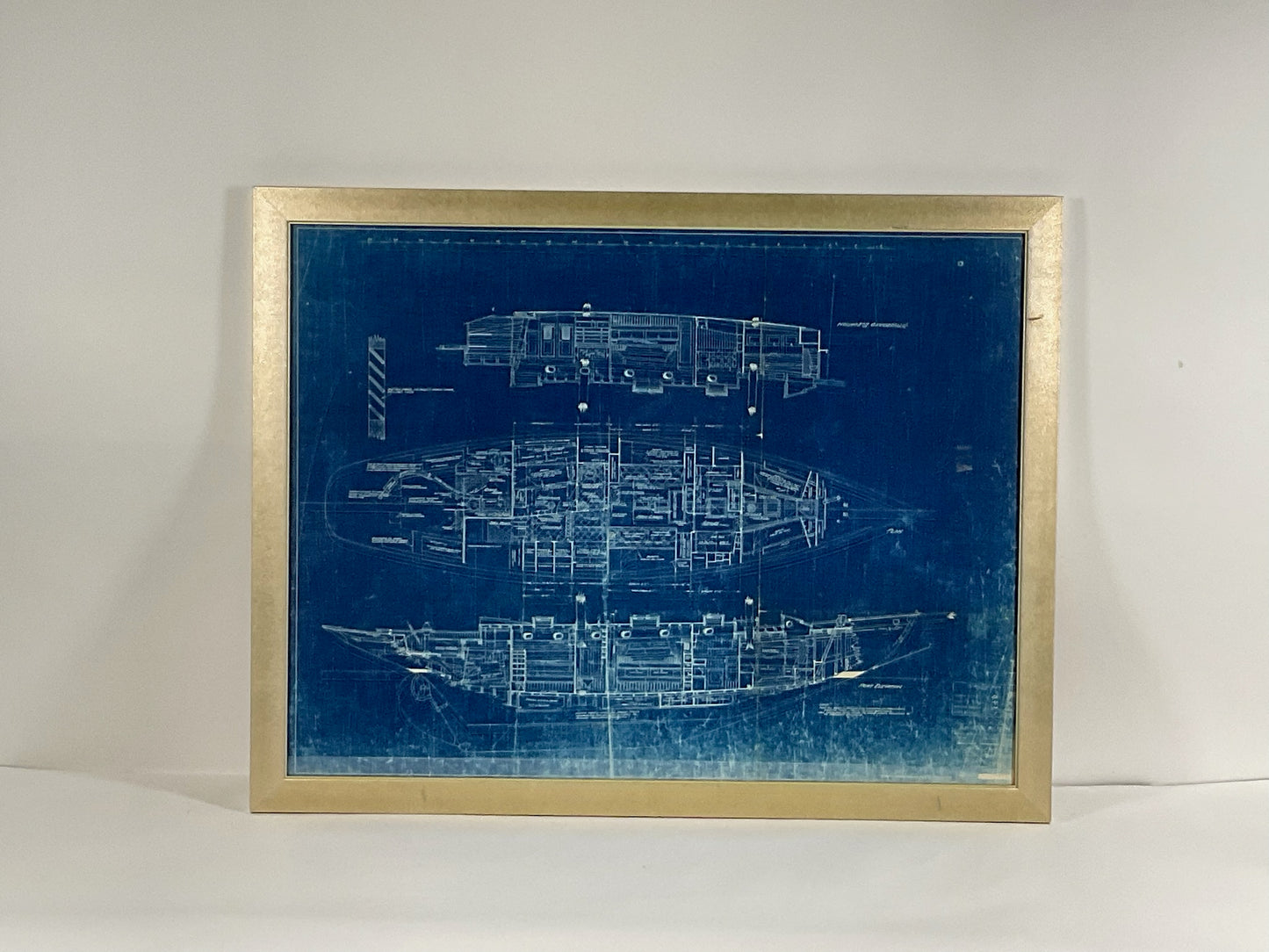

John Alden Yacht Blueprint

John Alden Yacht Blueprint


Regular price $ 1,895.00 USD
Regular price Sale price $ 1,895.00 USD
Sale Sold out

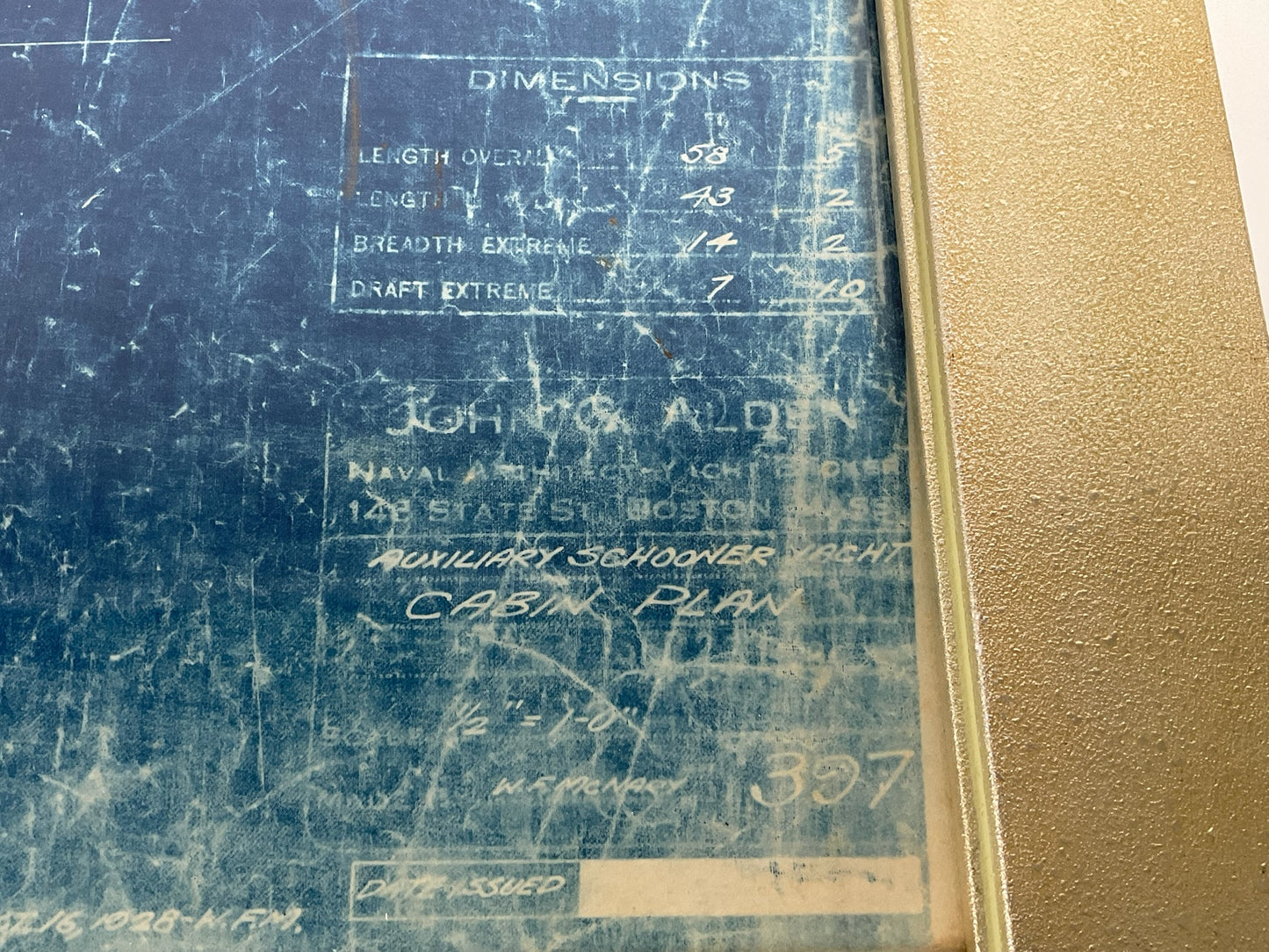

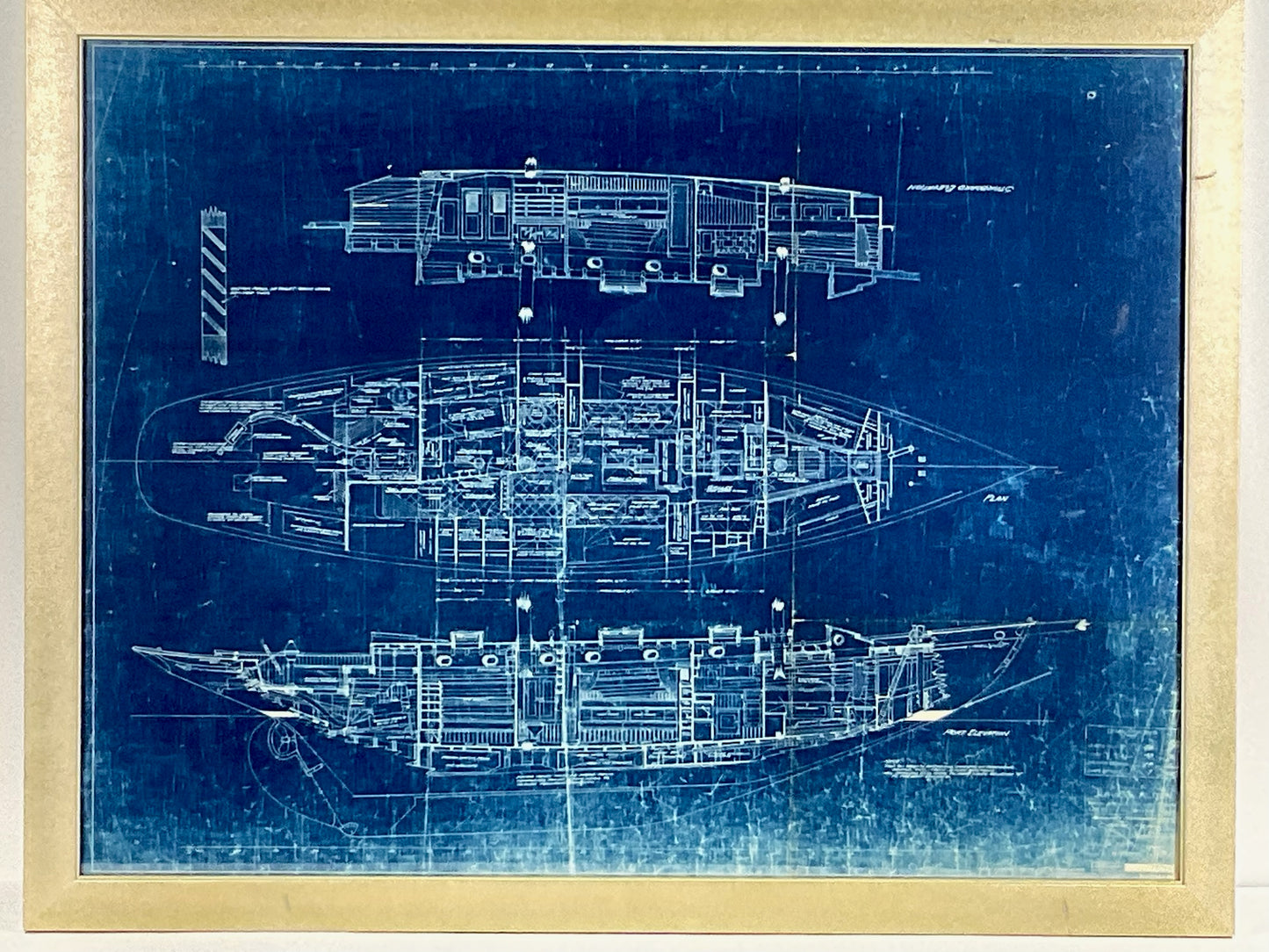

Showing hull 397, the fifty eight foot auxiliary schooner yacht "Teragram" (Margaret spelled backwards) was built for George W. Mixter, New York. Mixter was the author of "Primer of Navigation". Shipyard in Essex Connecticut. Built in 1929.

With an after cockpit design, Length was 58' 5". Beam 14' 2", Draft 7' 10". Displacement, 61,400 lbs..

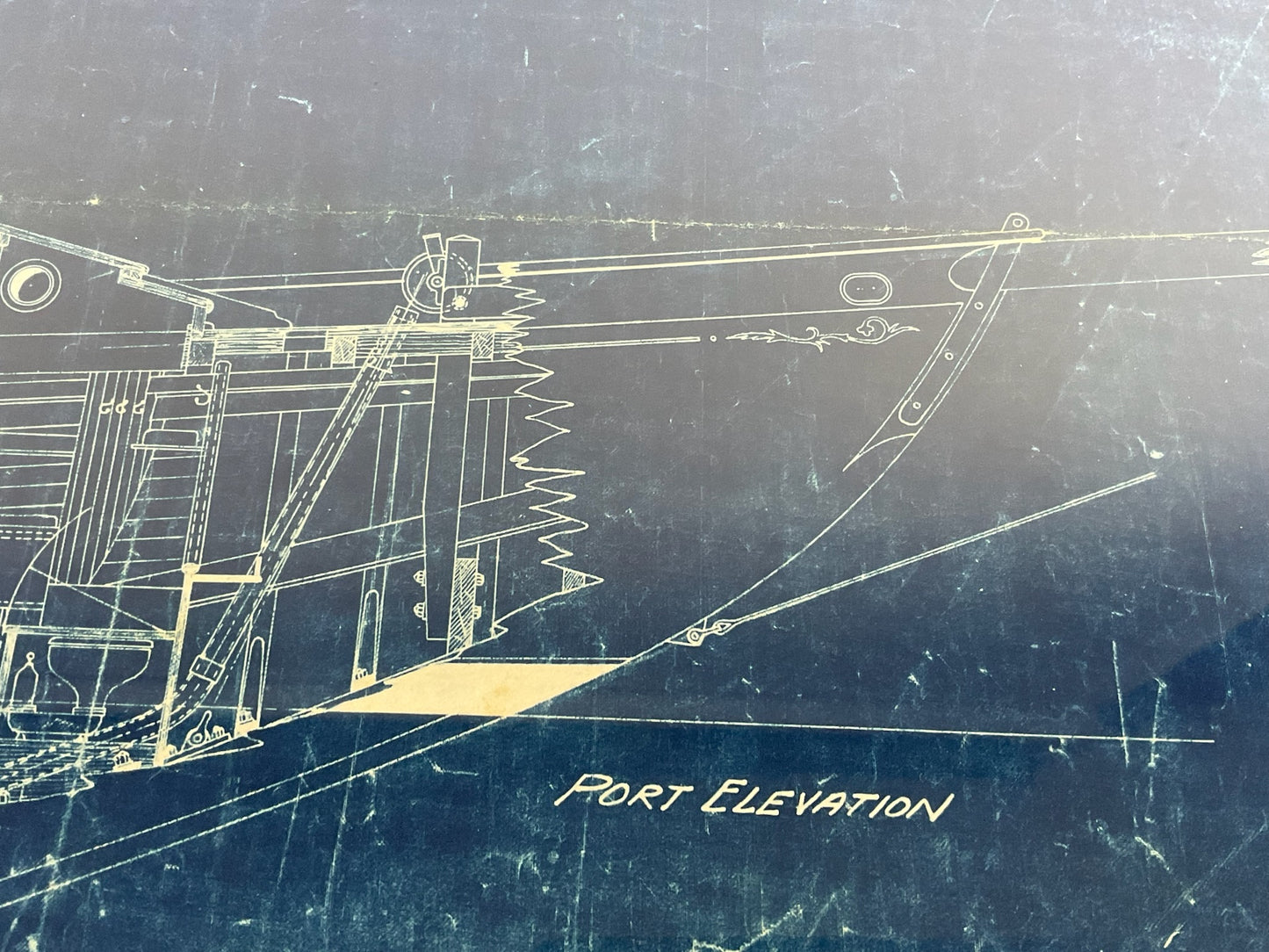

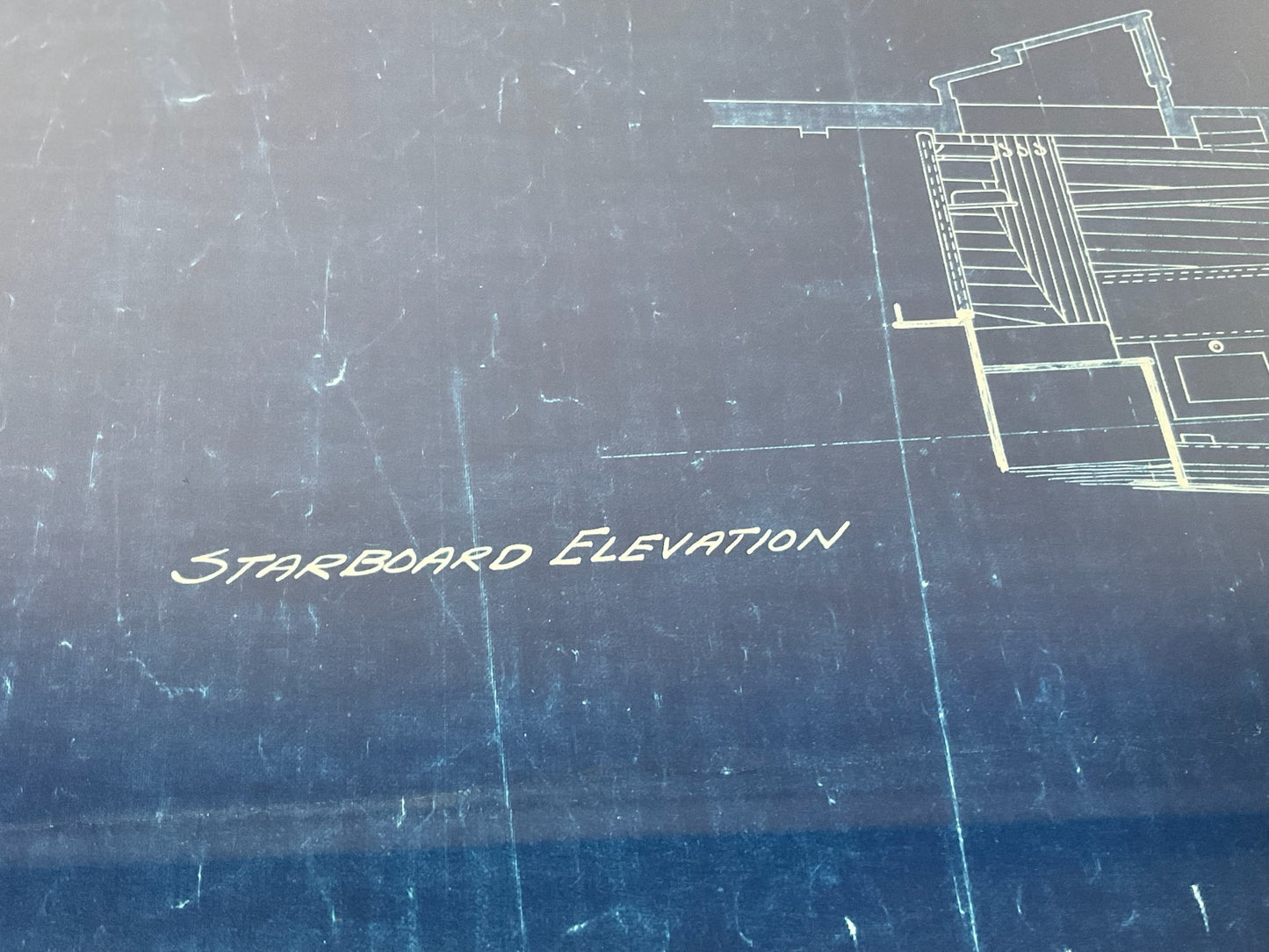

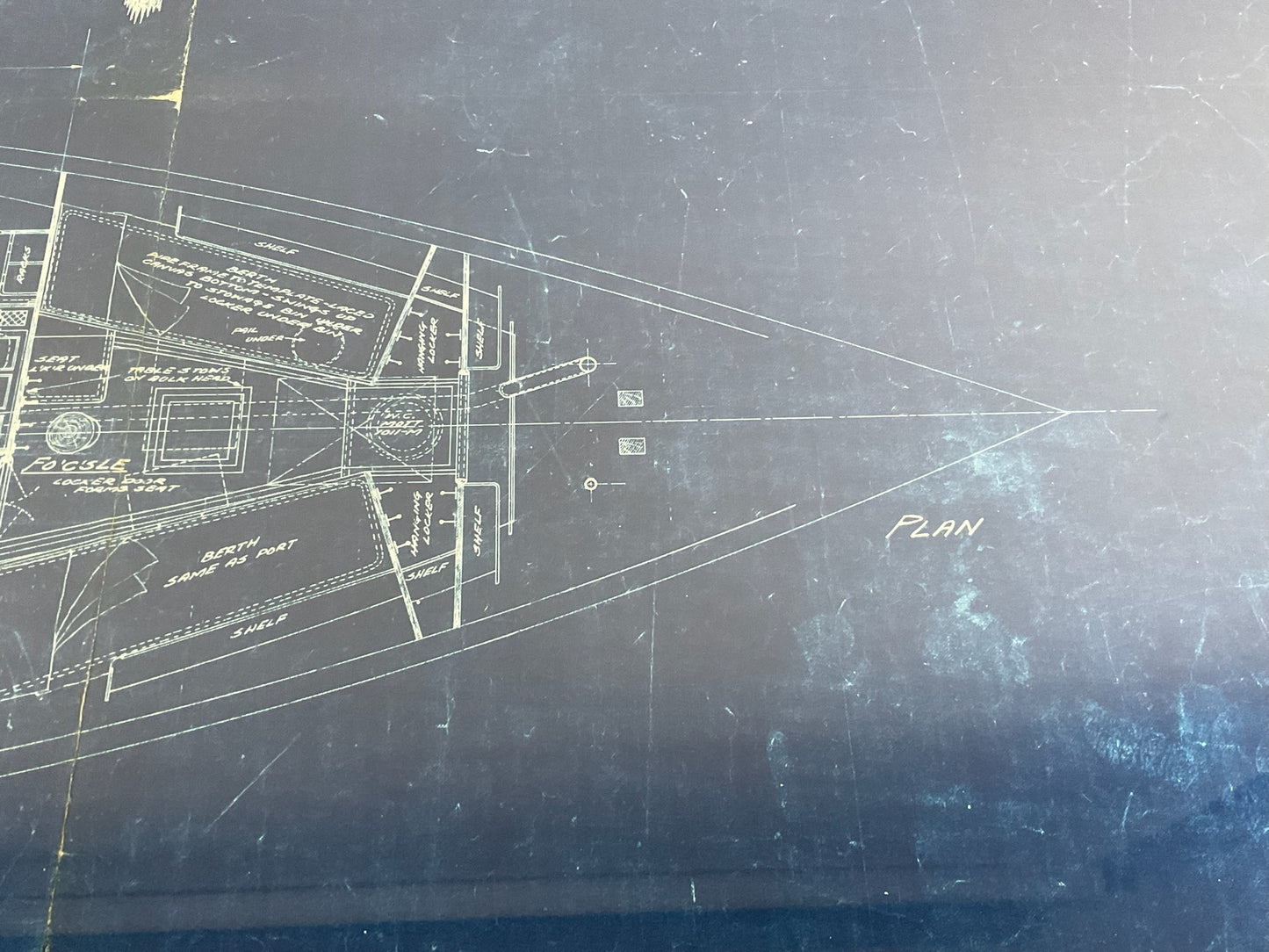

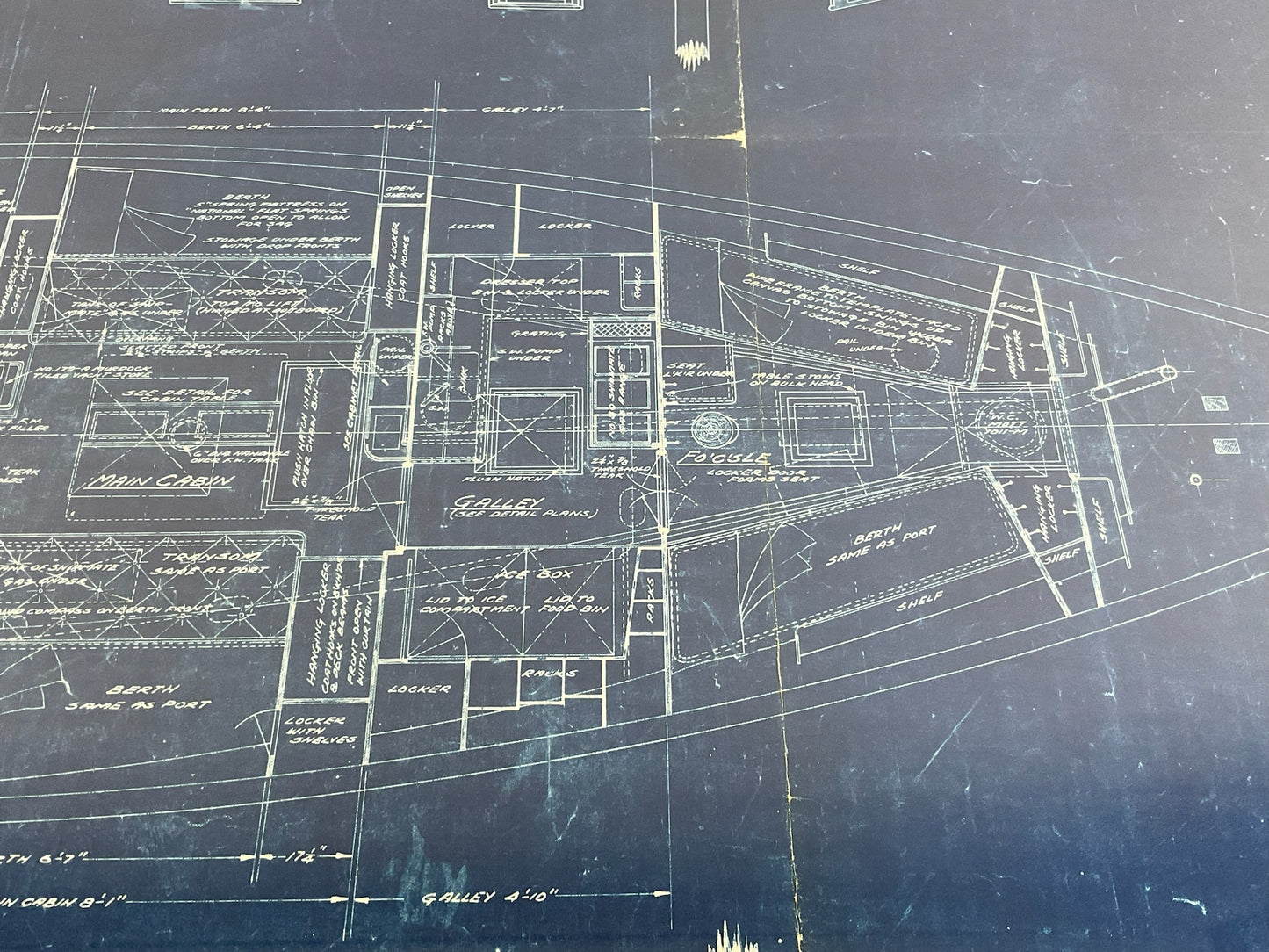

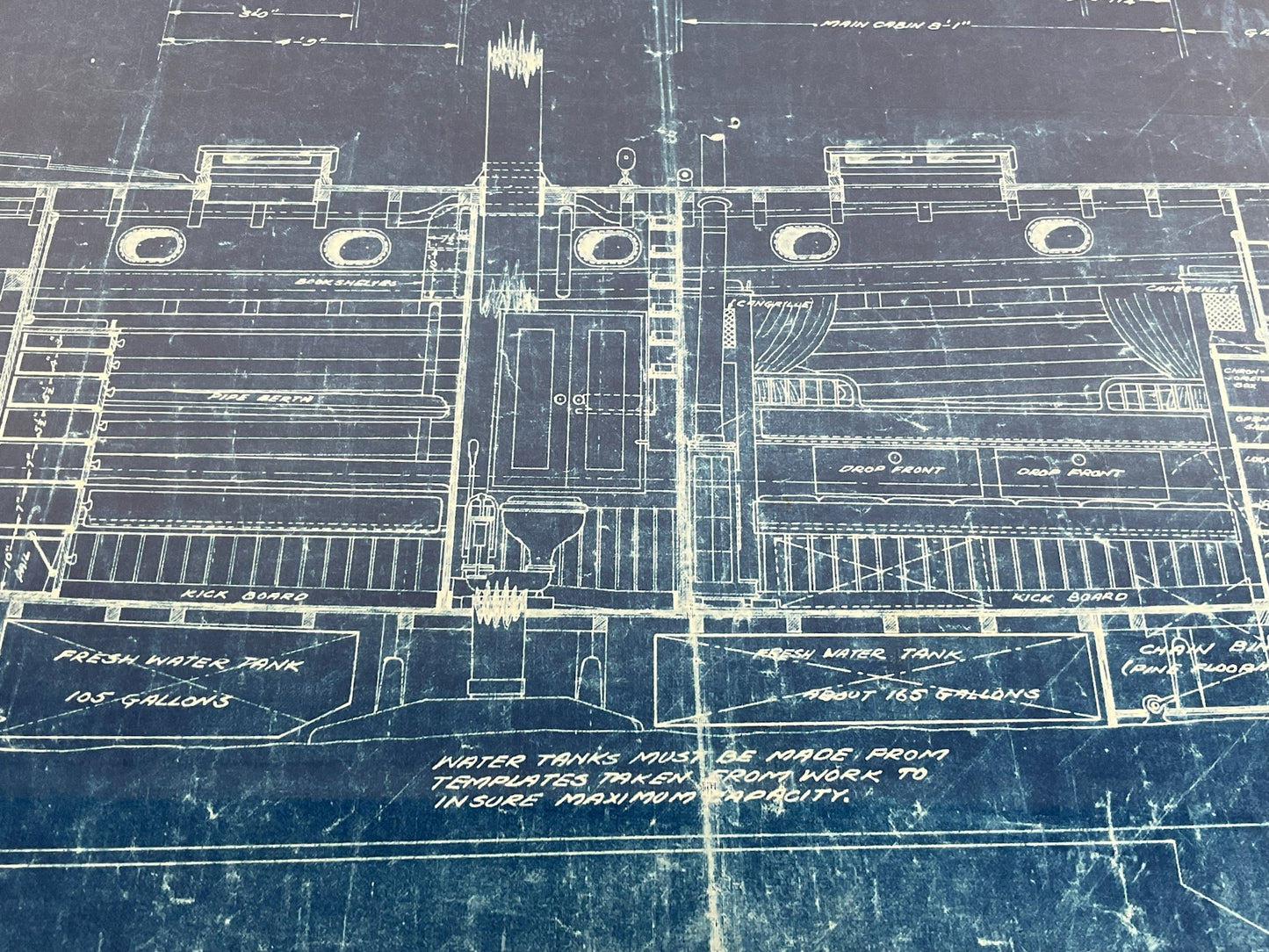

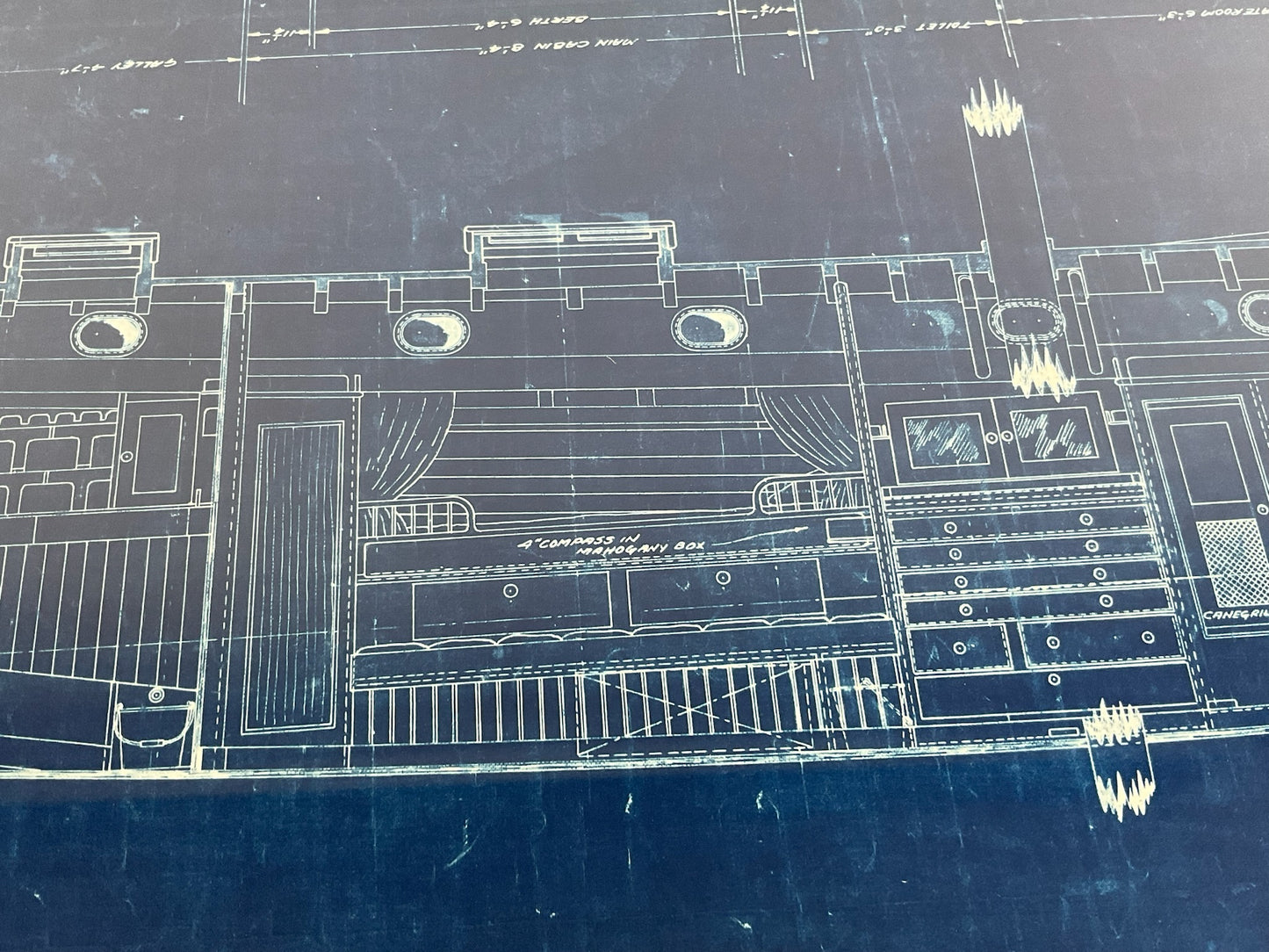

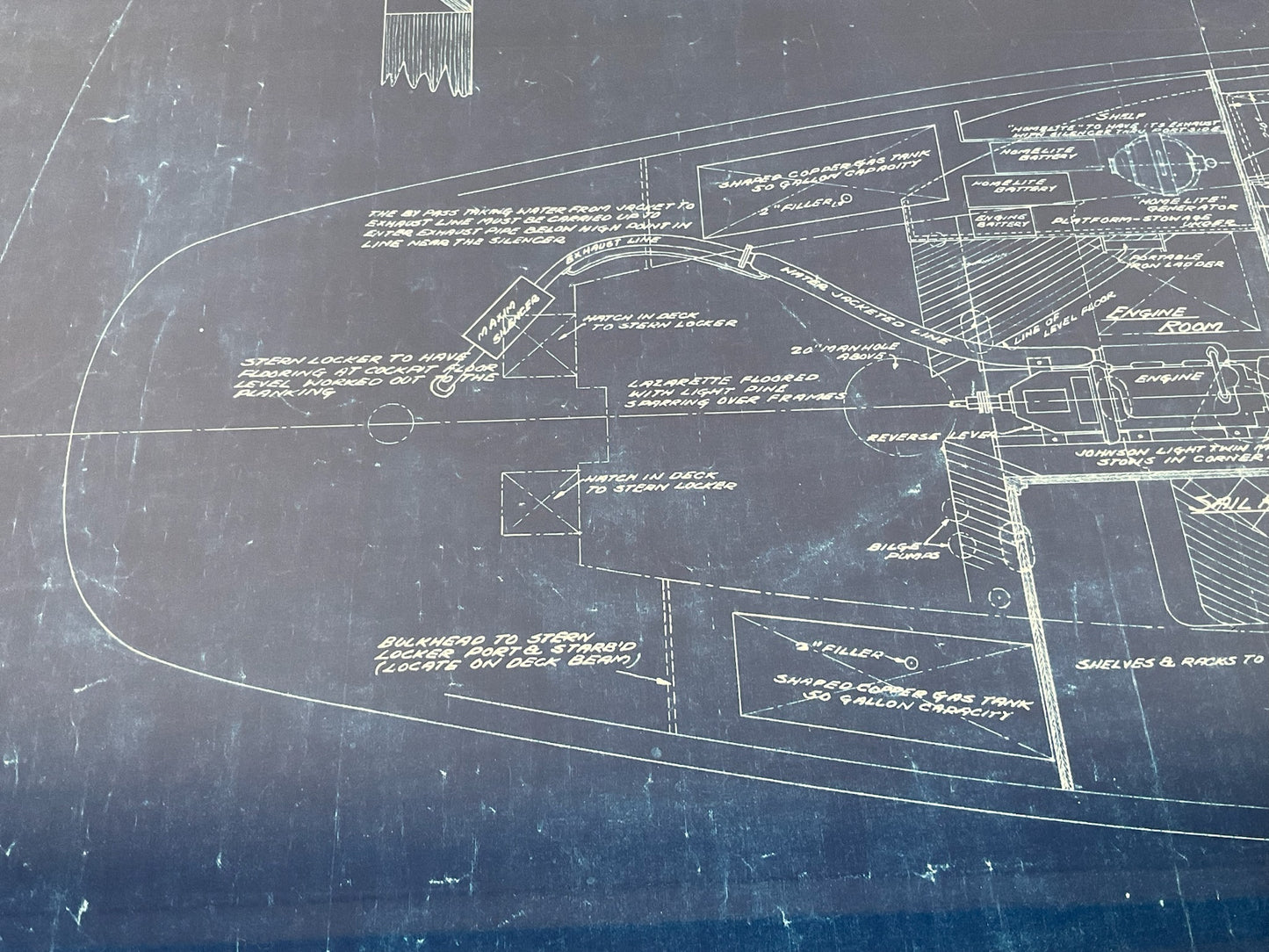

The details are endless, cabins and deck layout, galley, saloon, sail room, berths, crews quarters, etc.

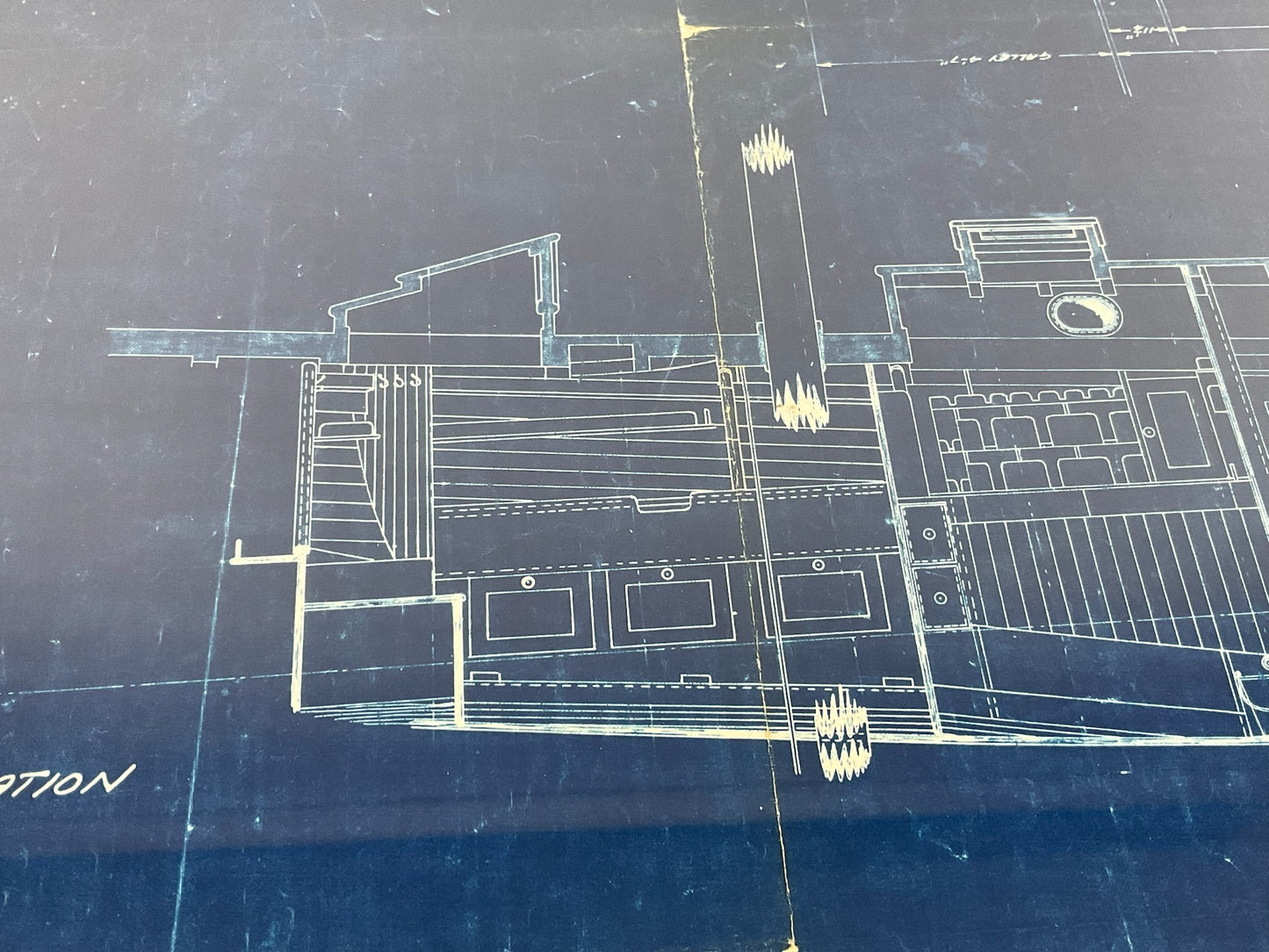

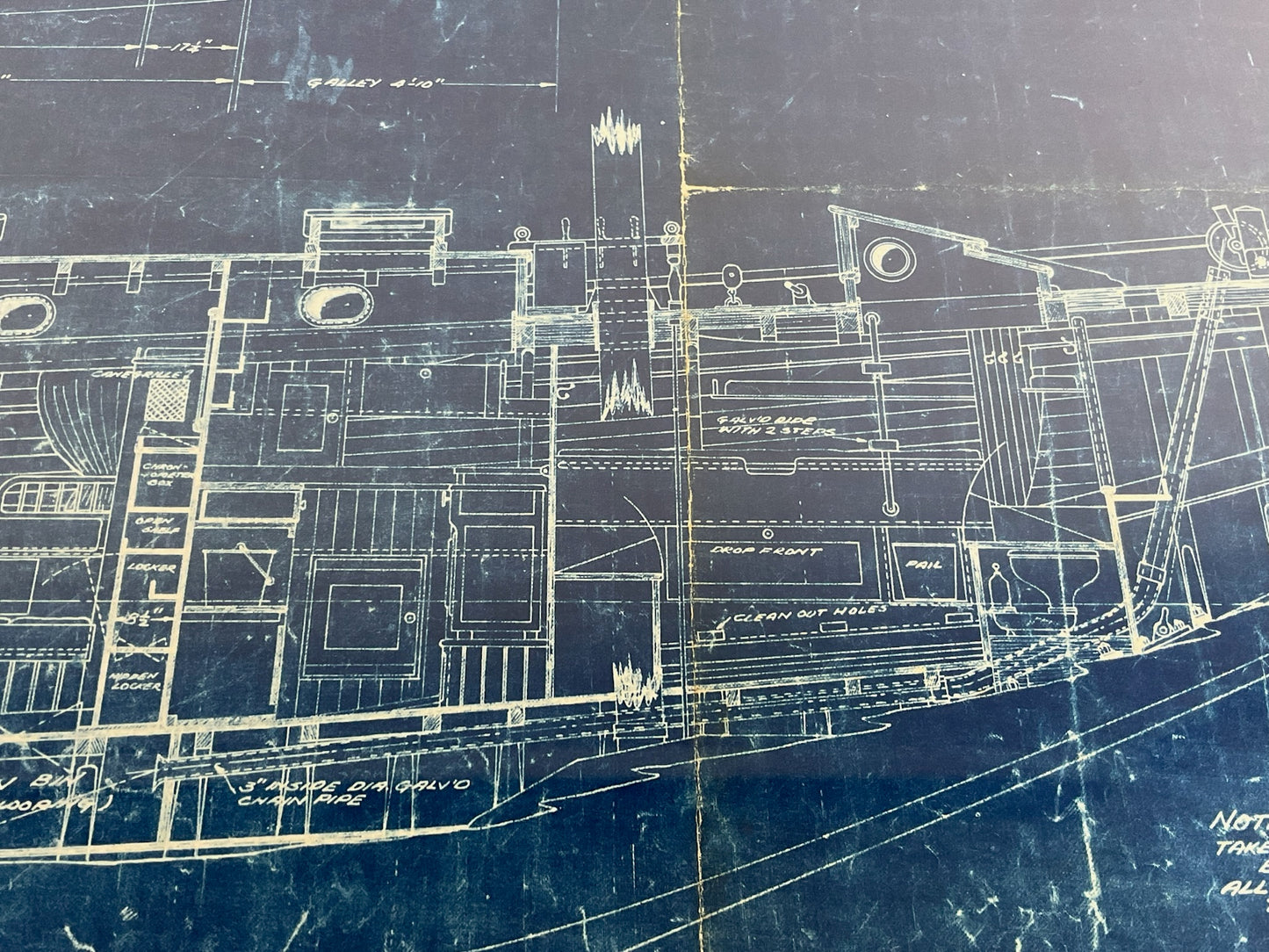

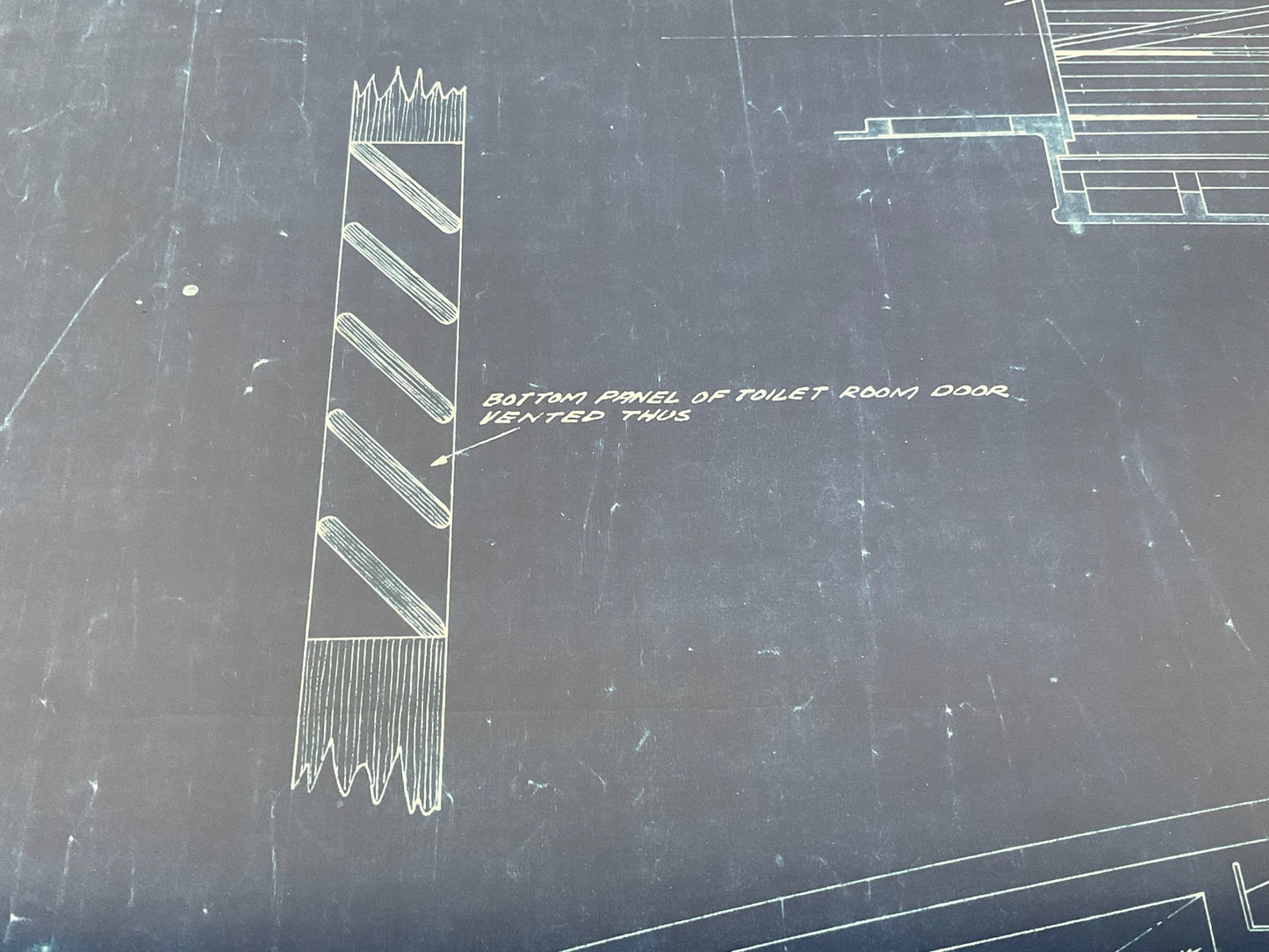

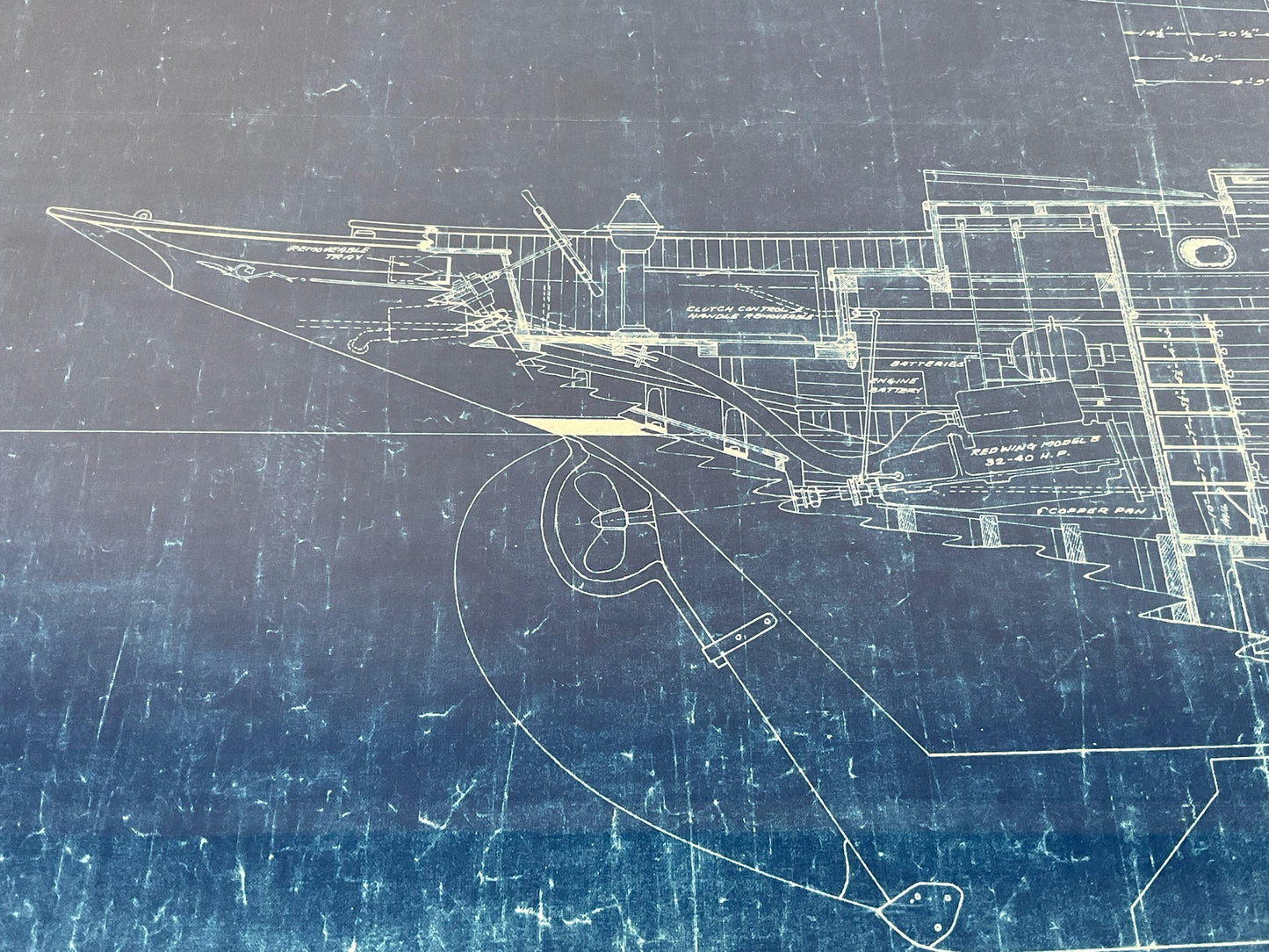

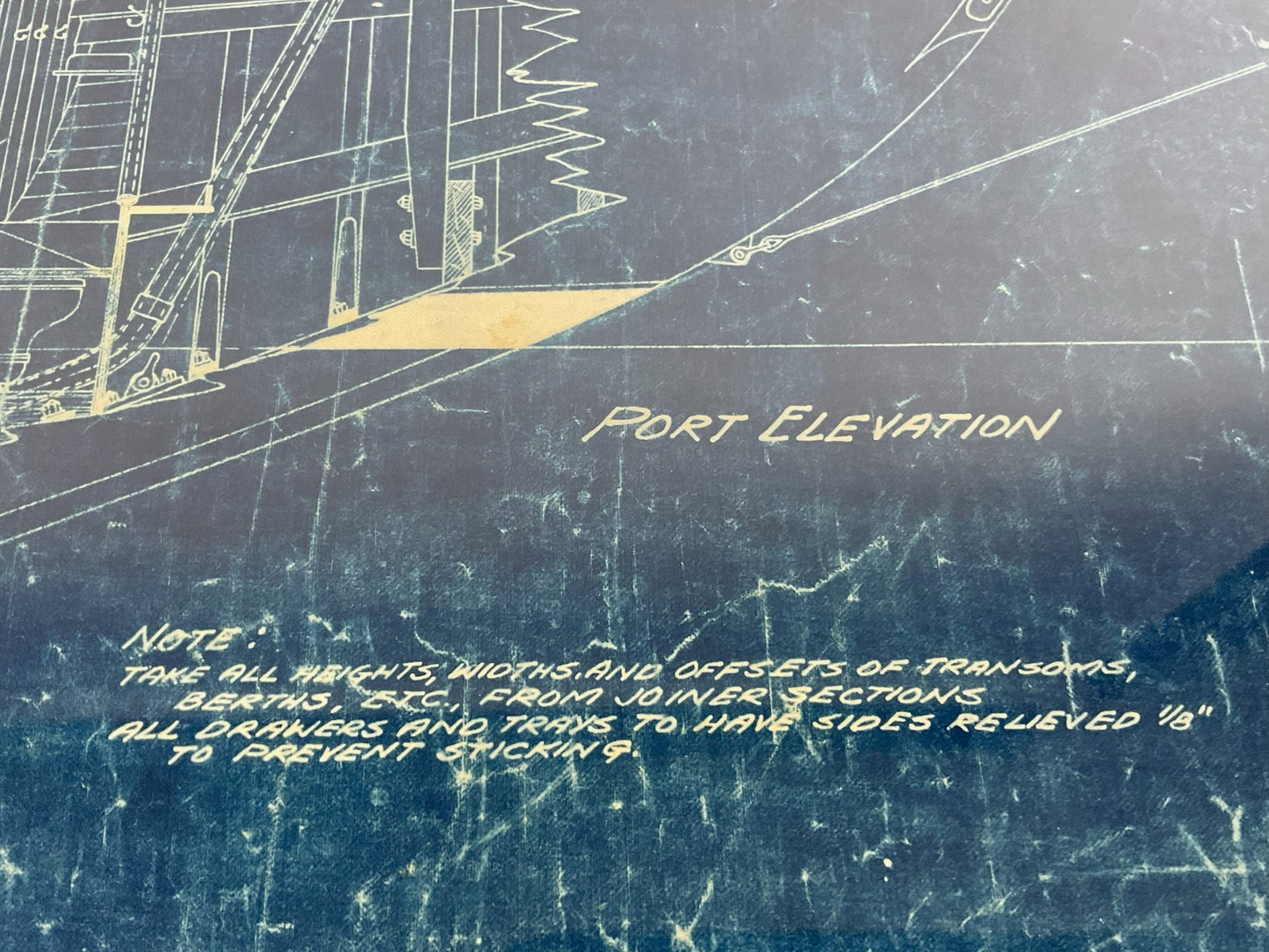

The top drawing shows woodworking in great detail. Teragram served in the war effort in World War II.

Condition: Somewhat faded but all text can be read.

Weight: 14 lbs.
Overall Dimensions: 31"H x 39"W
Made: American
Material: Paper
Date: 1929
