Original 1930 Blueprint of a Motor Launch by B.T. Dobson, Naval Architect

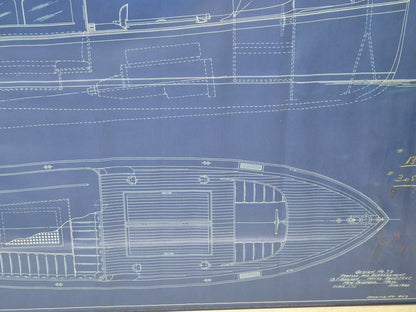

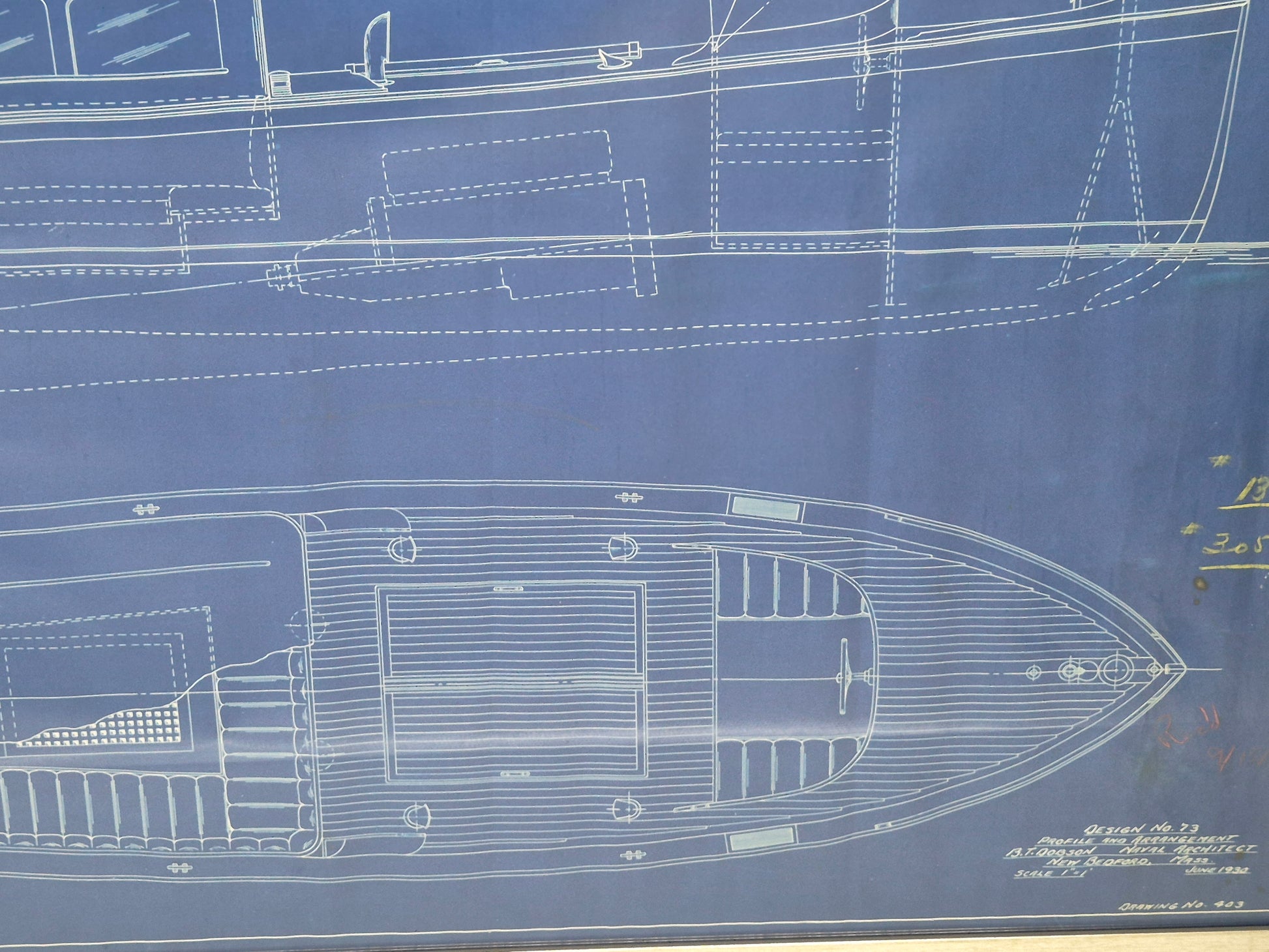

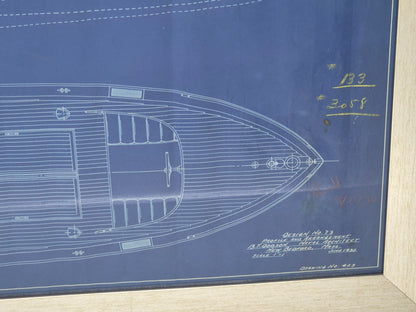

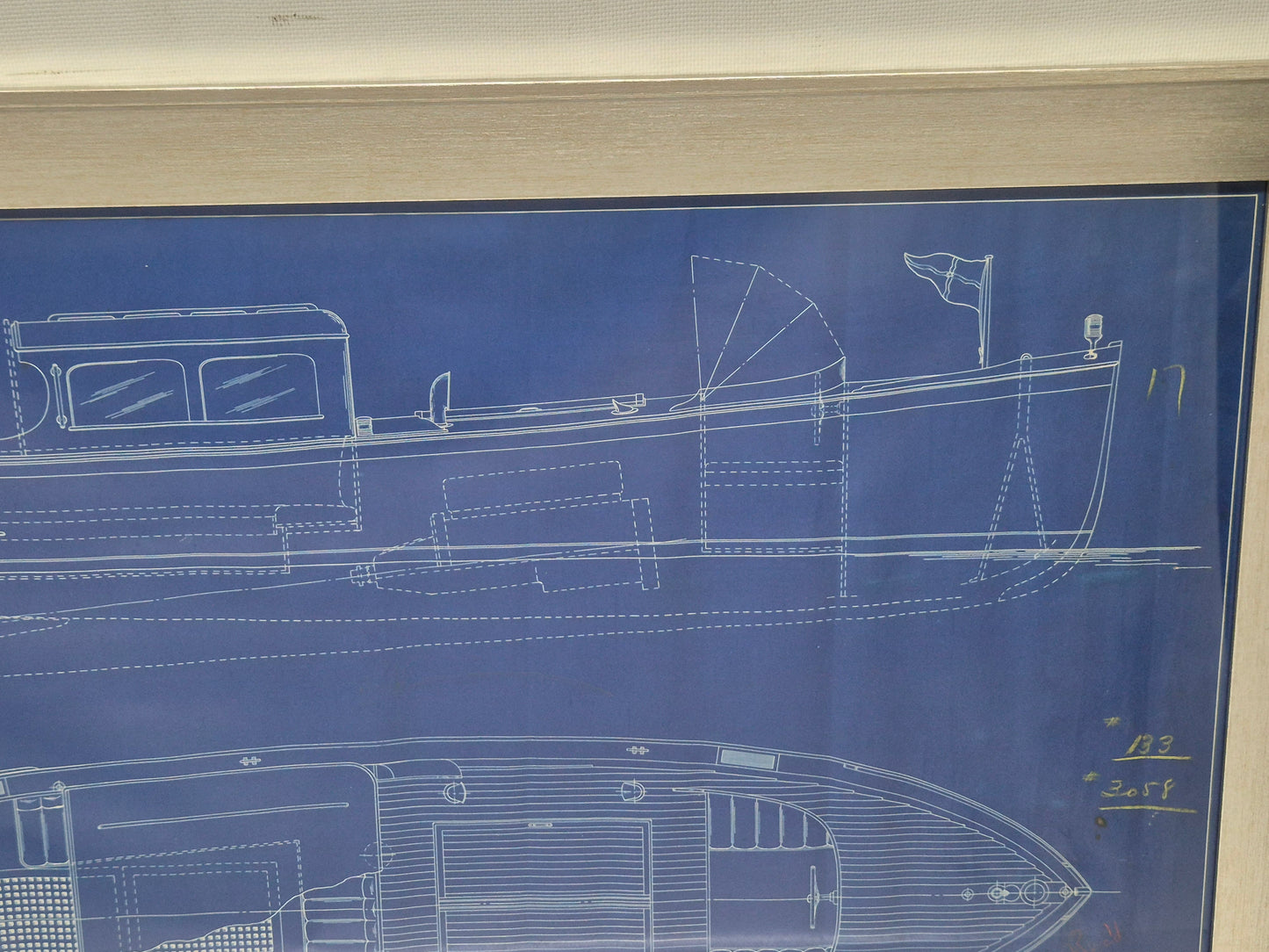

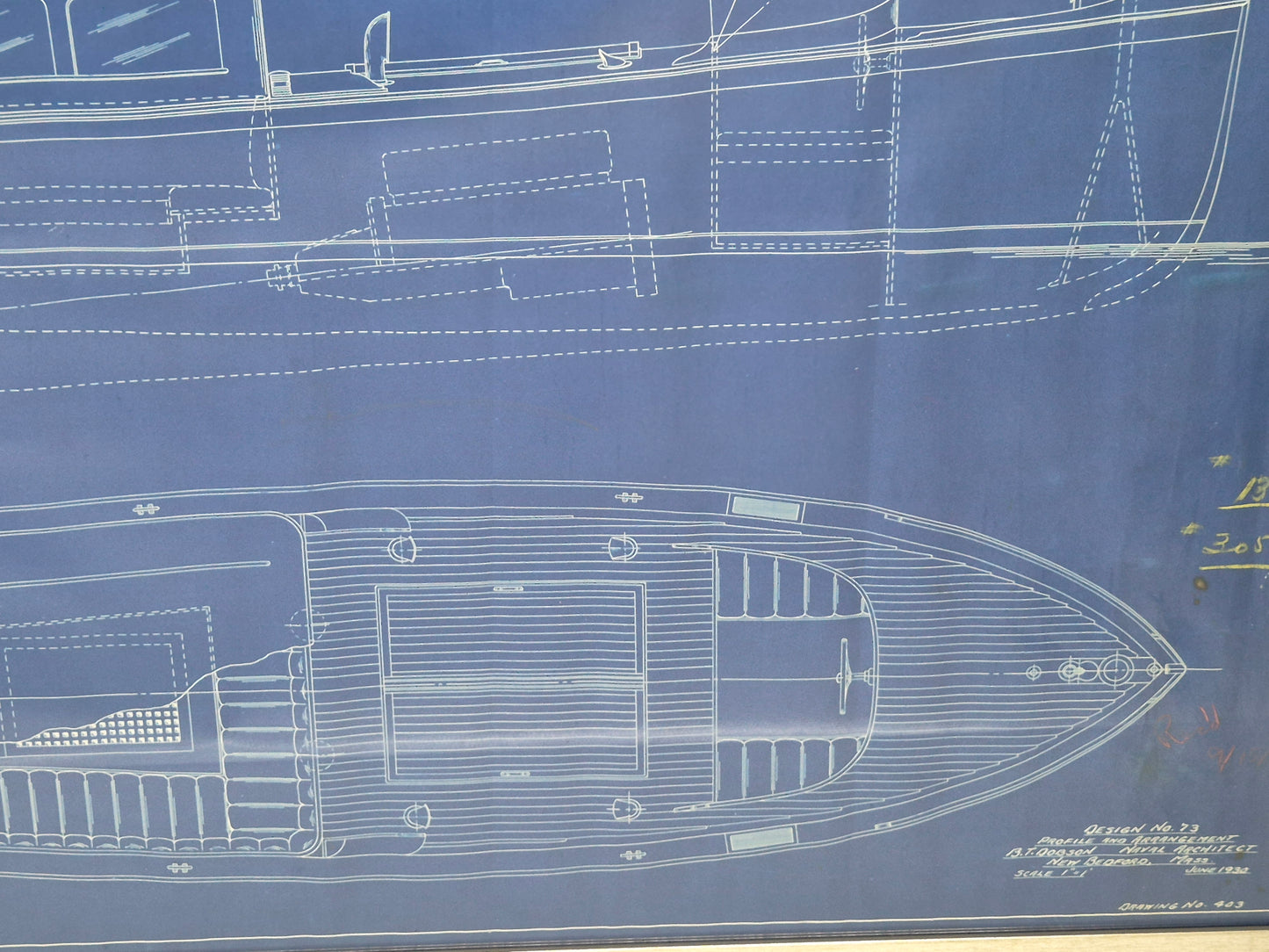

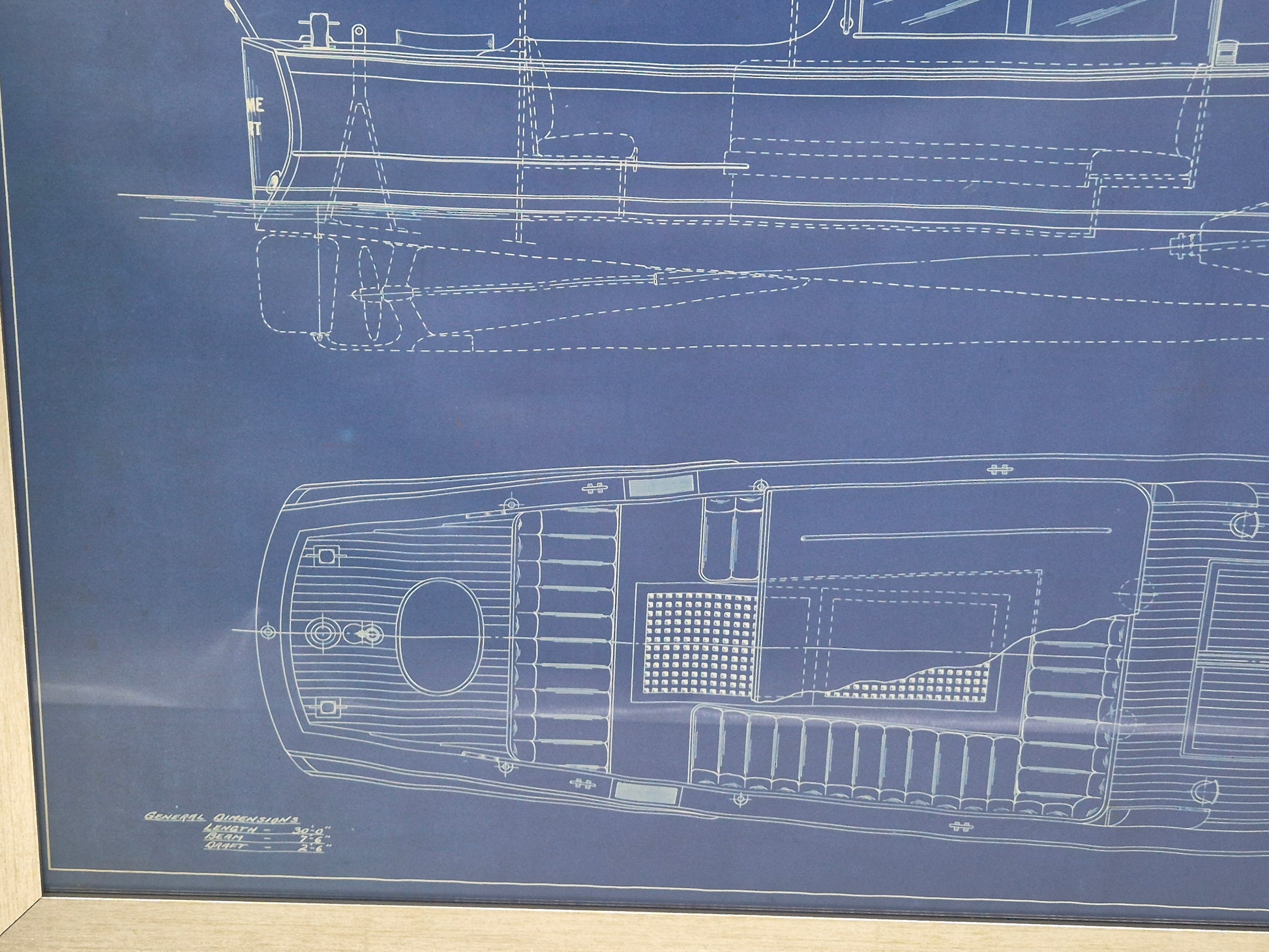

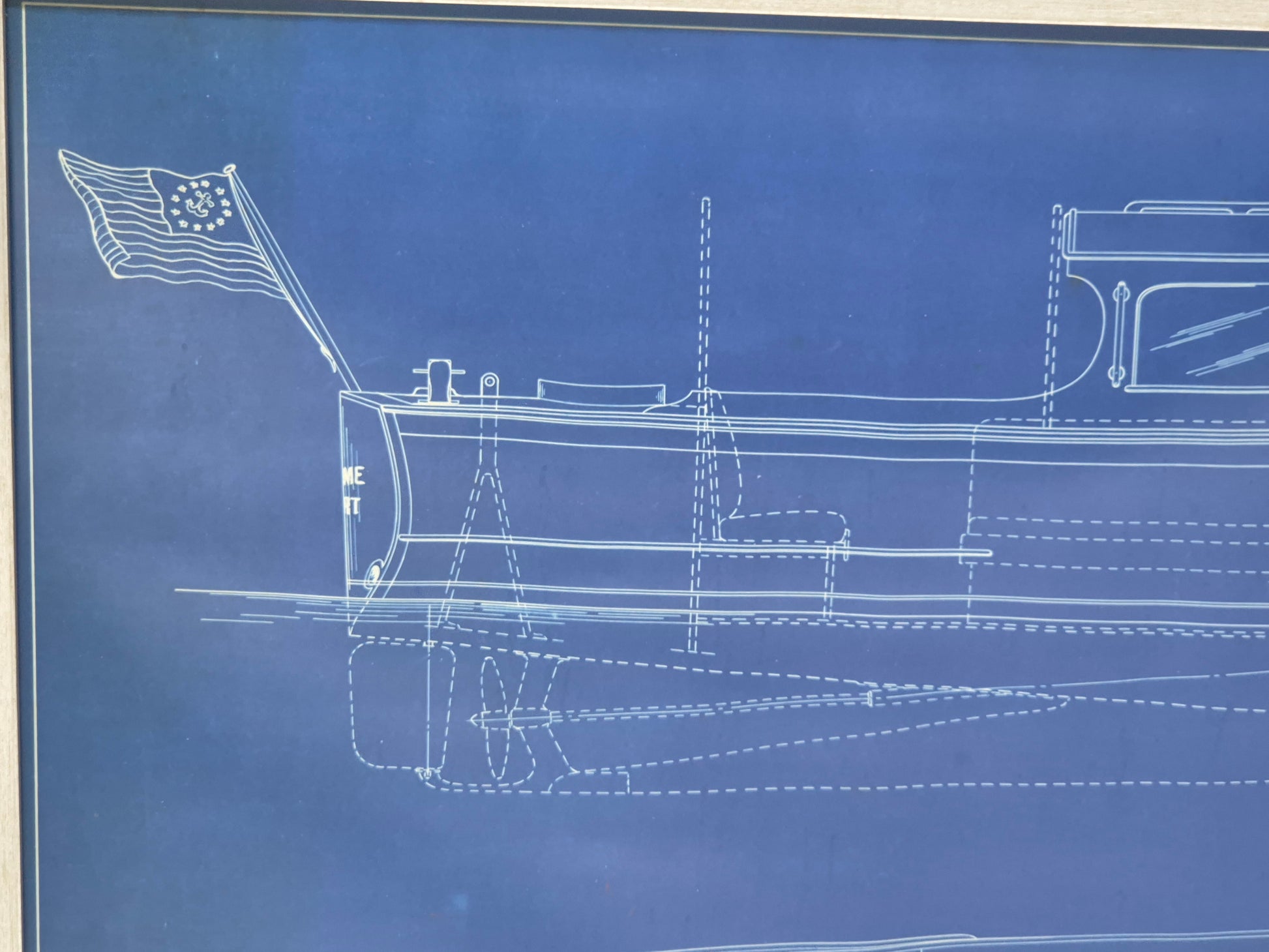

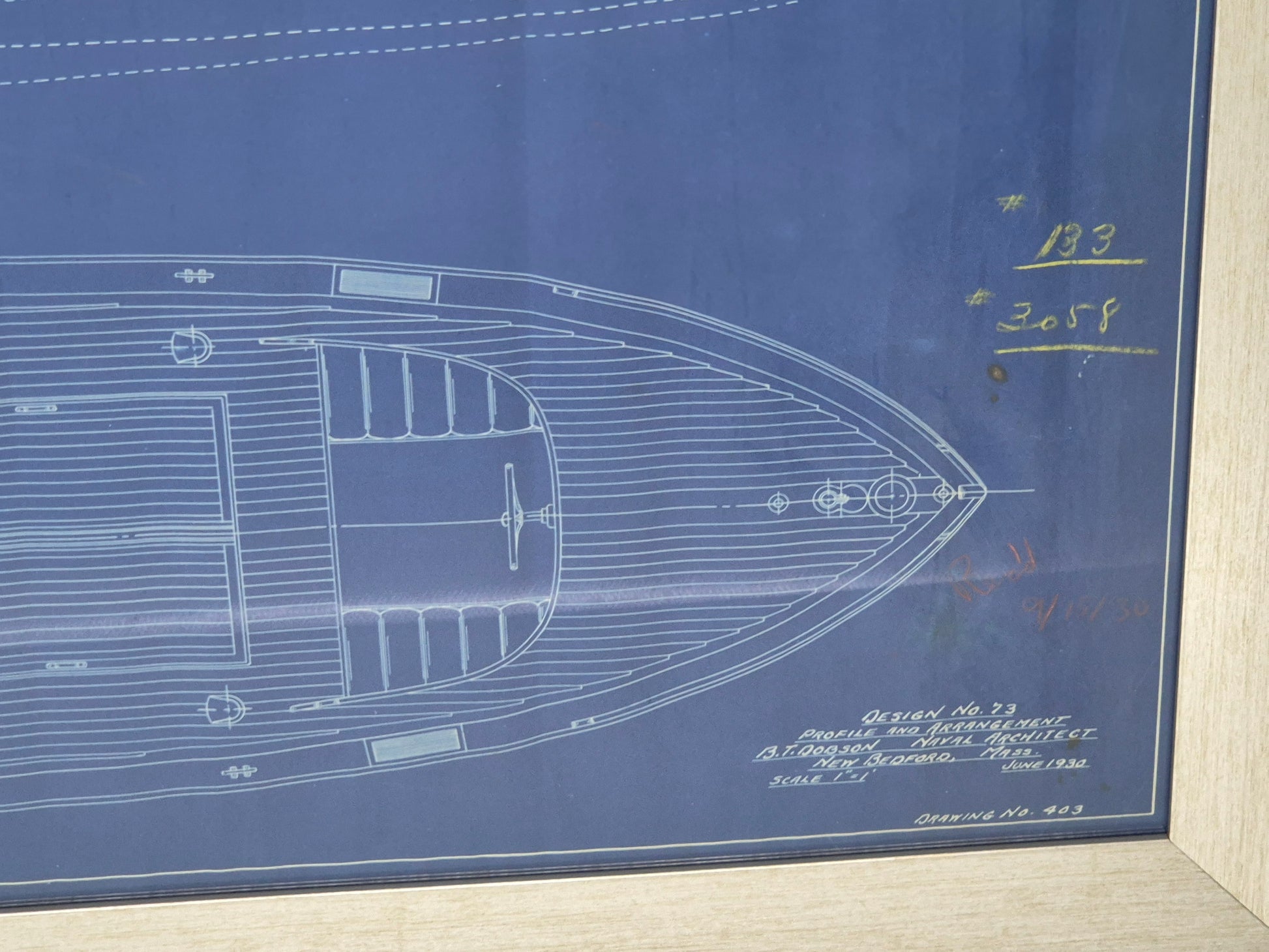

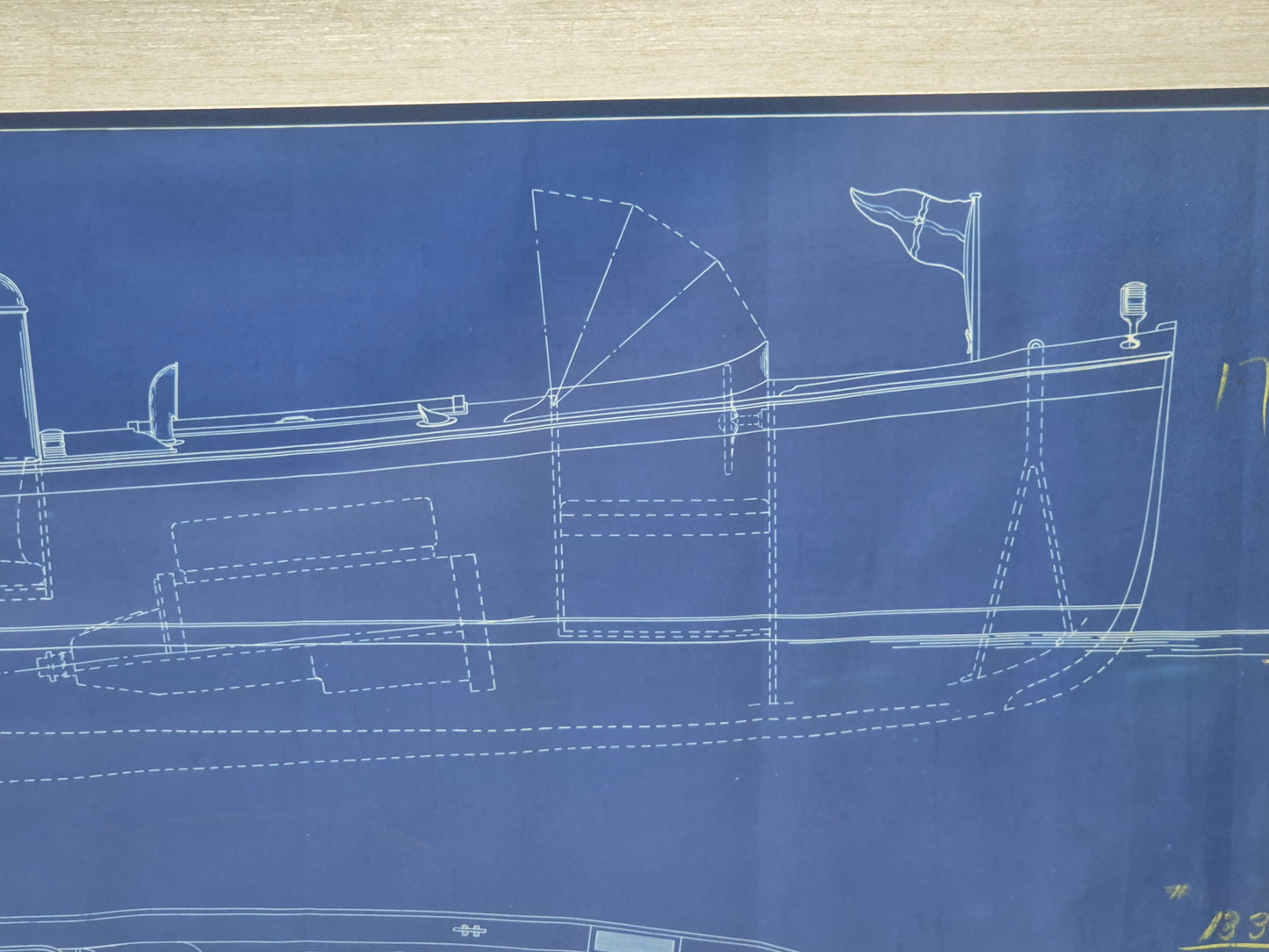

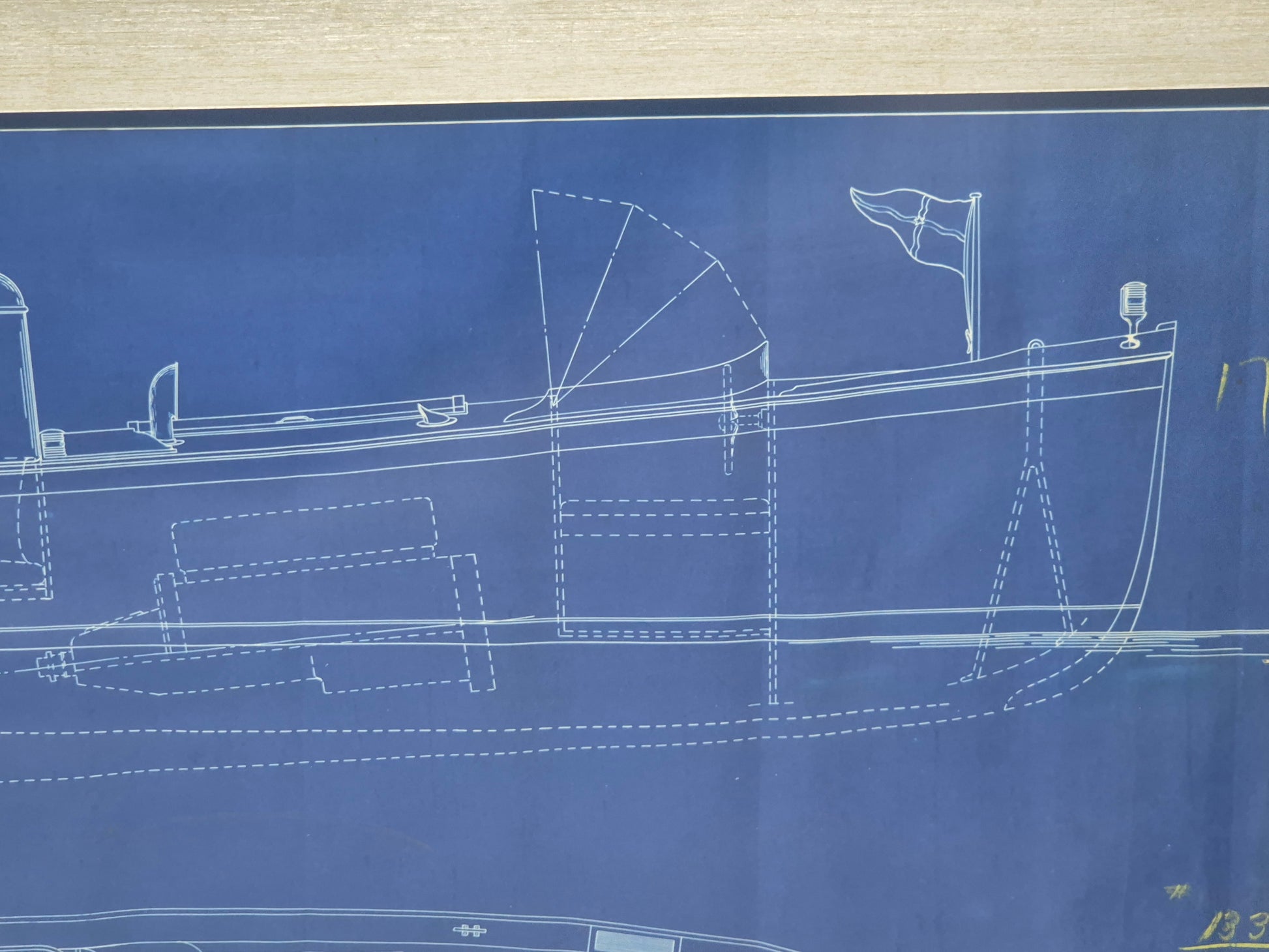

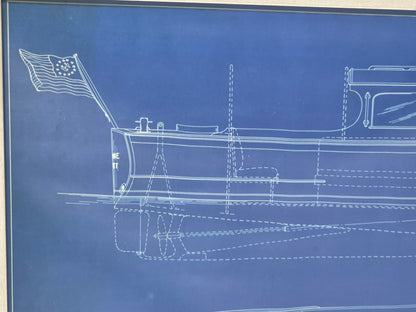

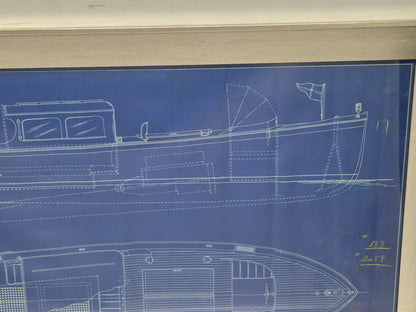

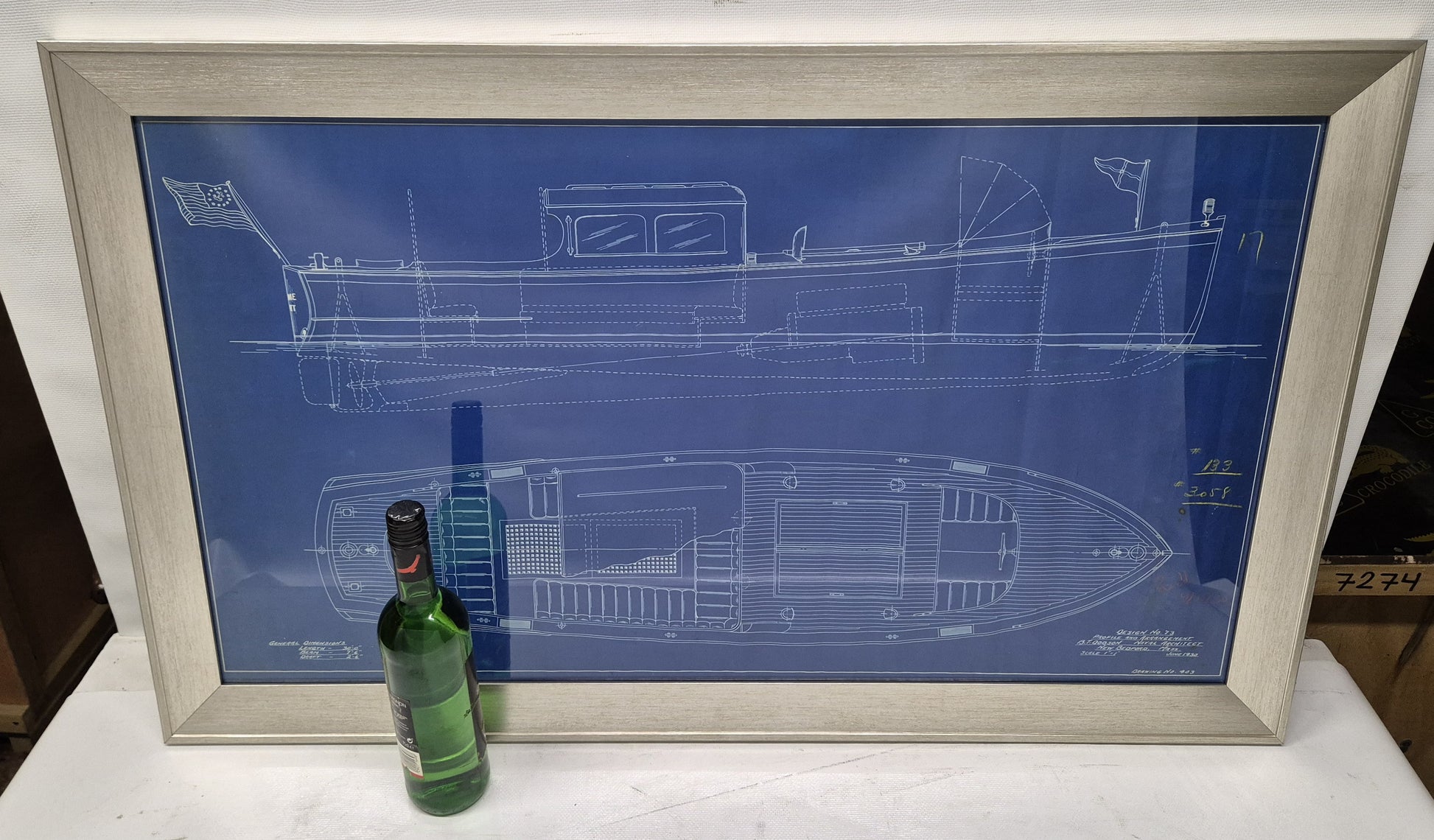

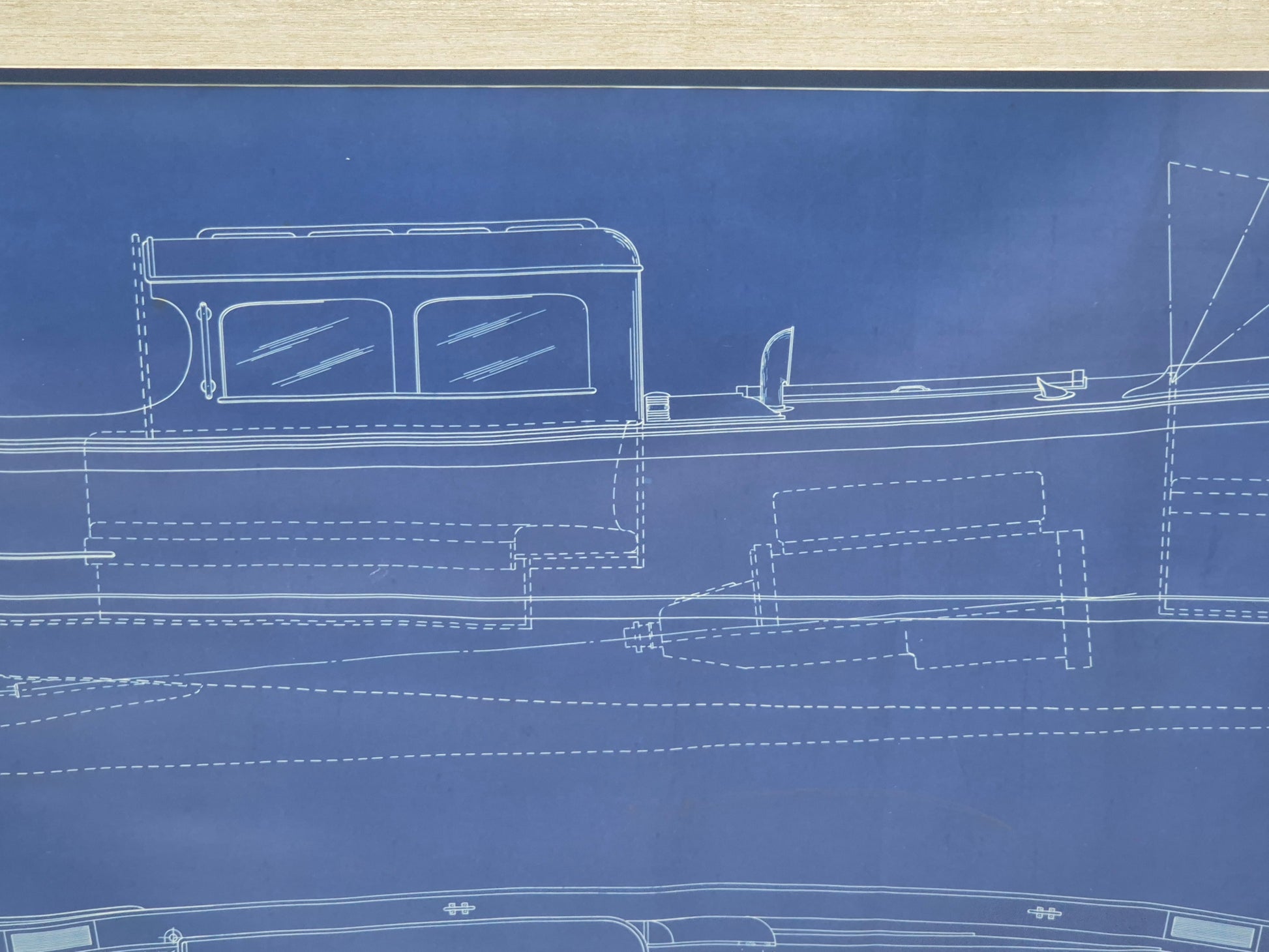

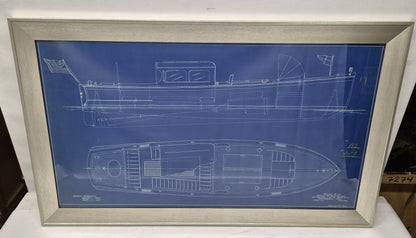

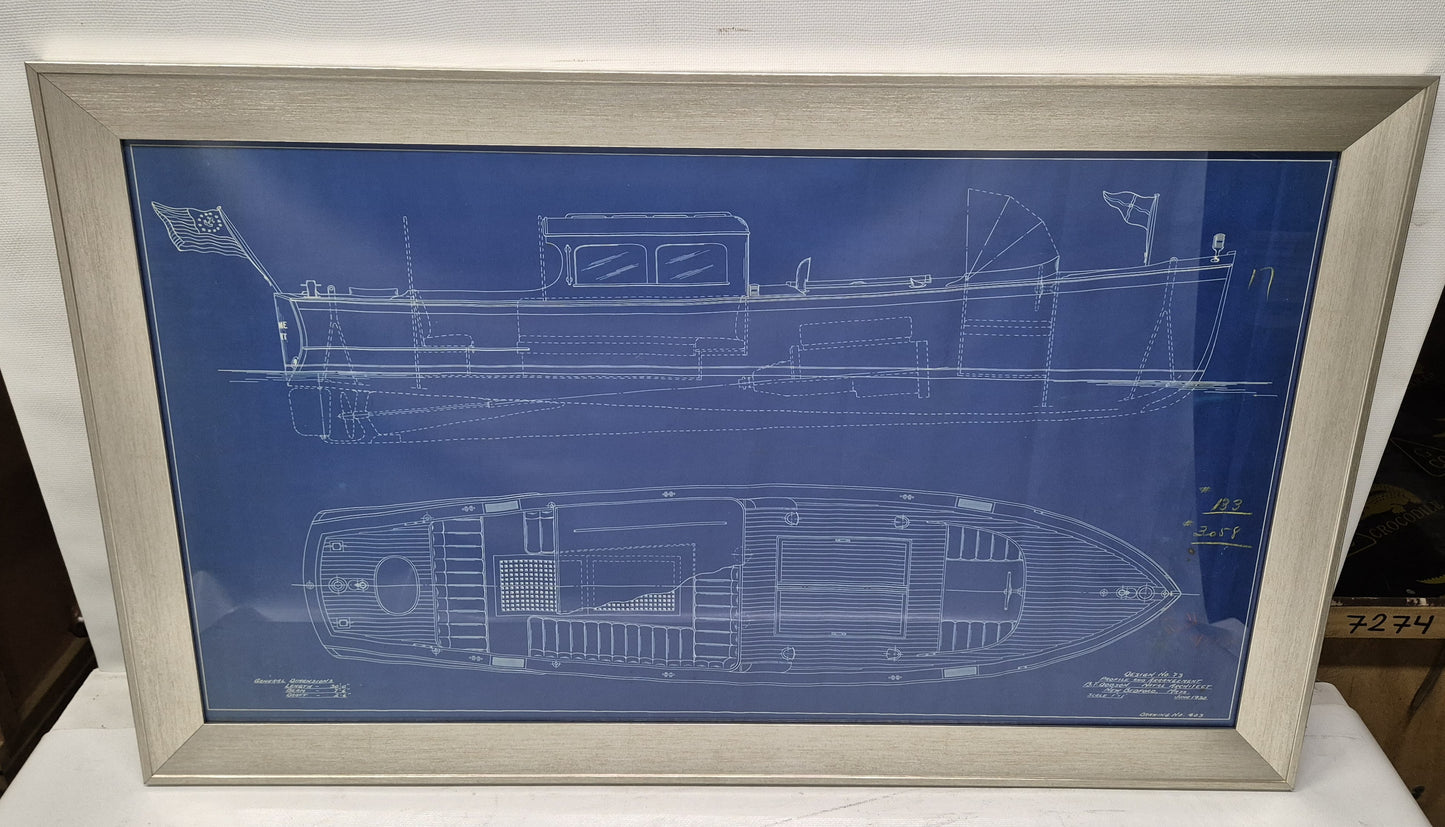

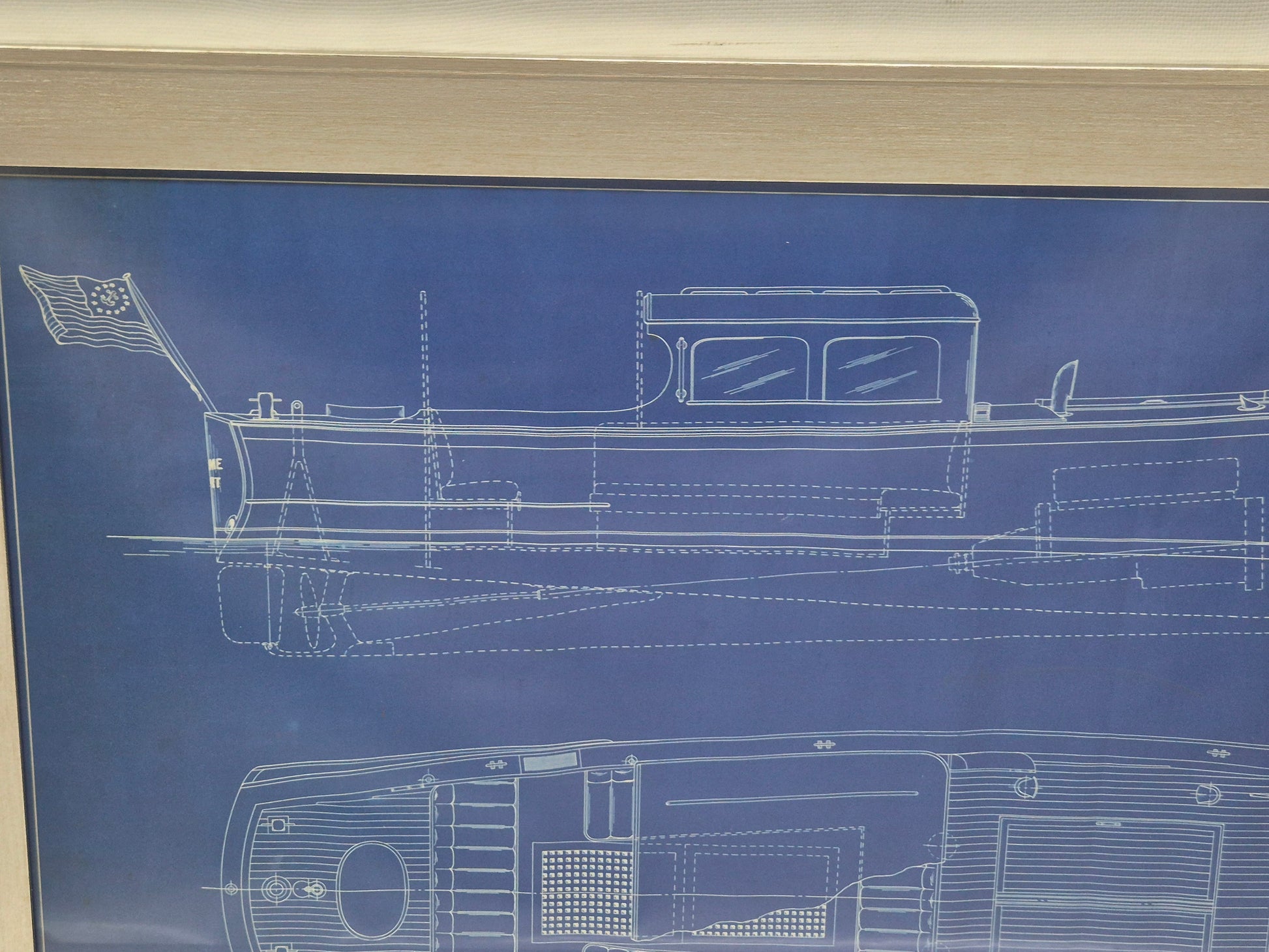

High-quality blueprint of a motor launch by B.T. Dobson, naval architect of New Bedford, Mass. The vessel features a saloon roof, benches, bow cockpit with steering station, floor grating, fittings, etc. The plan appears to include a New York Yacht Club burgee and yacht ensign. This is a large-scale drawing at one inch equals one foot. Date: June 1930. Vessel dimensions: Length 30'0", Beam 7'6", Draft 2'6".

Weight:    10 lbs.
Overall Dimensions:    25"H x 41"W
Made:    America
Material:    Paper
Date:    1930
