Original Blueprint of a Fifty Three Foot Yacht

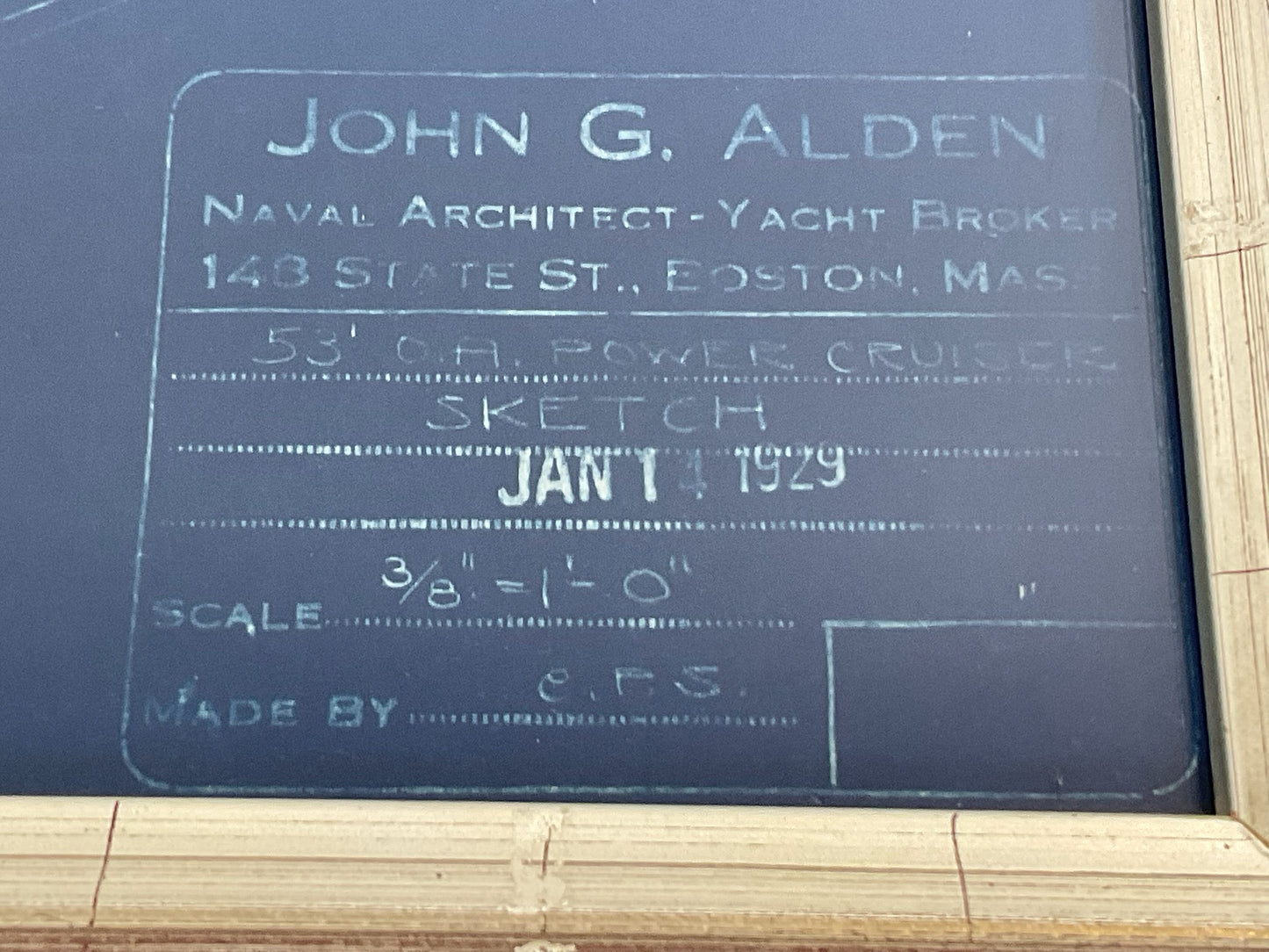

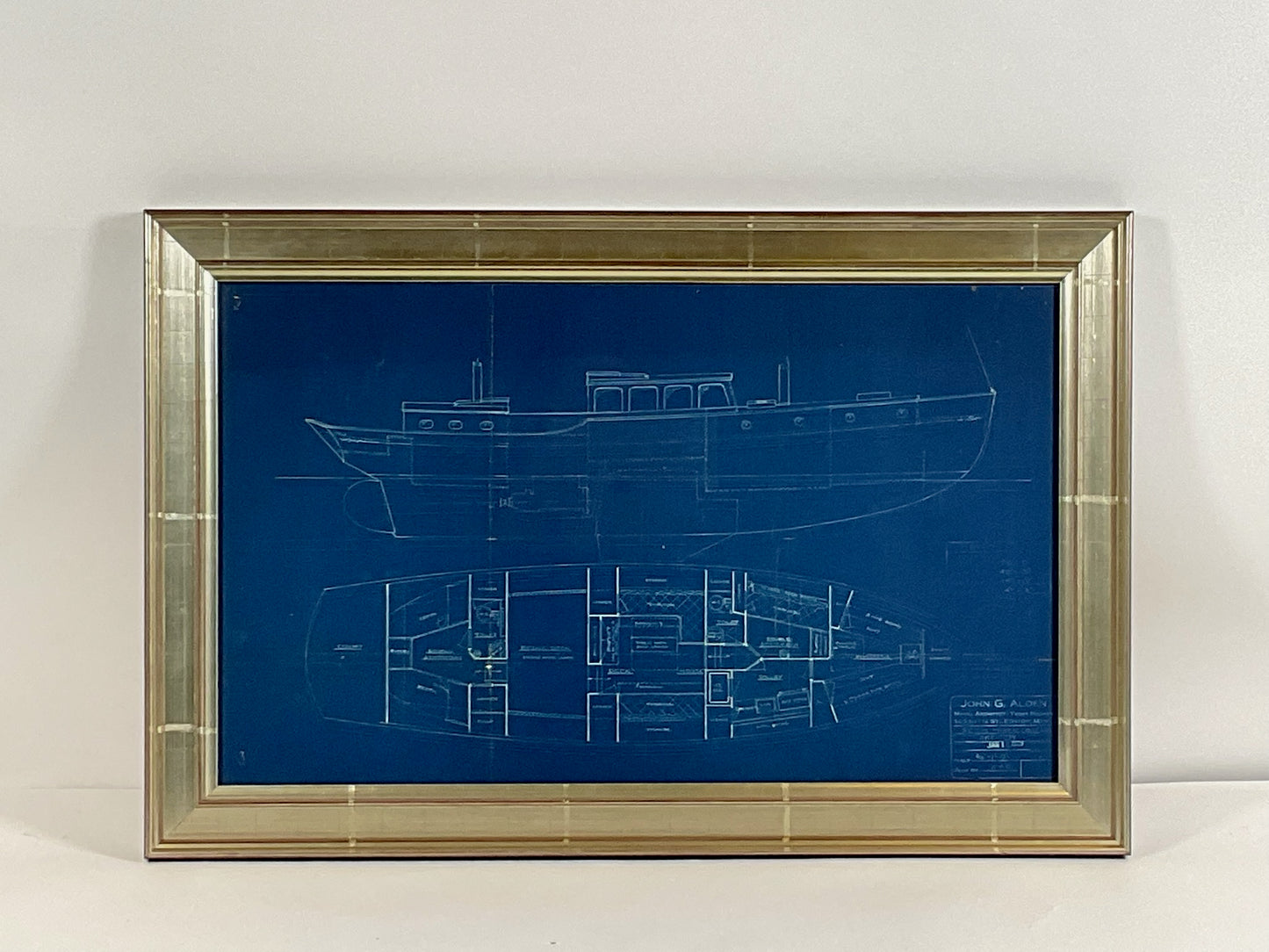

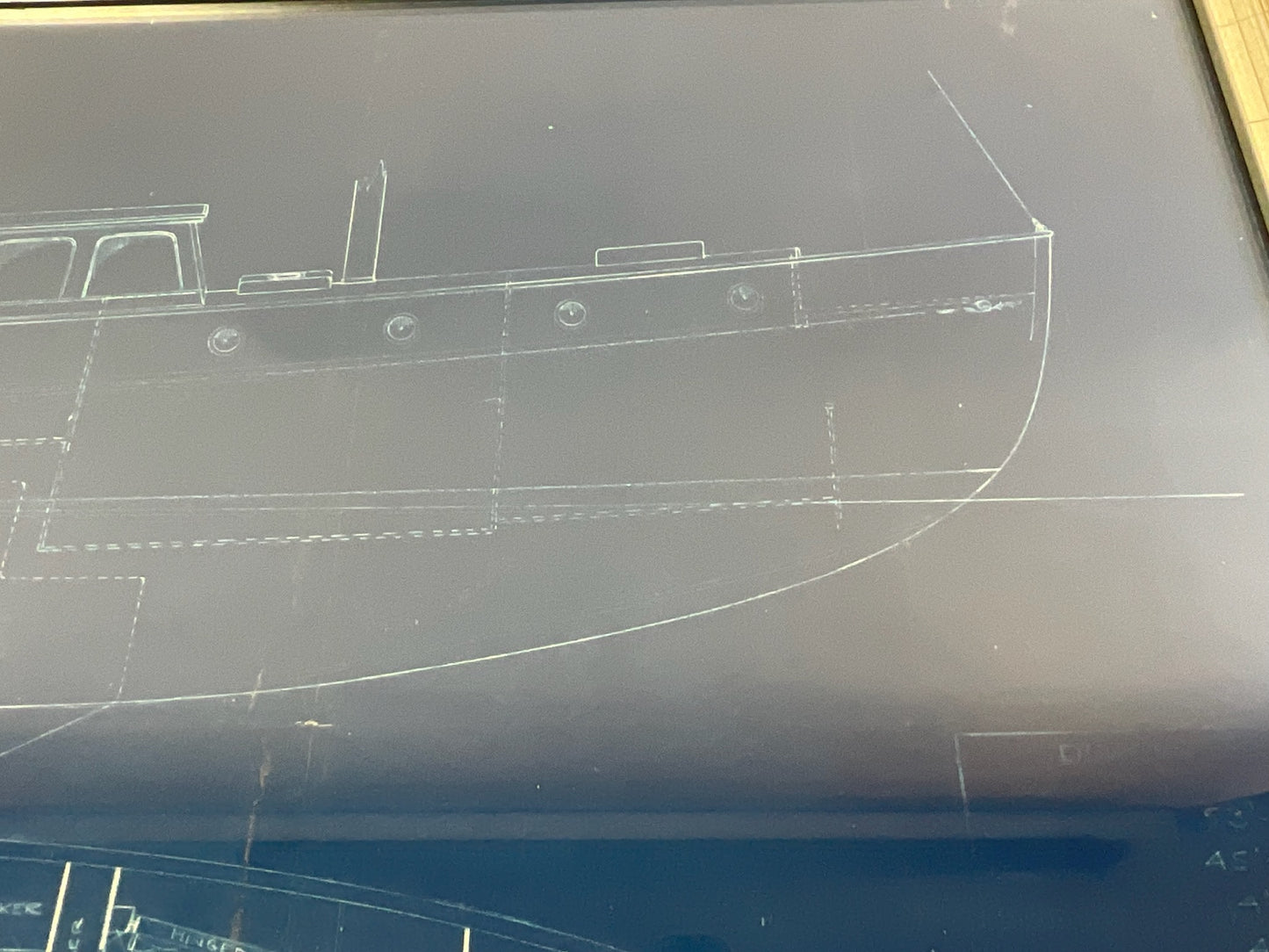

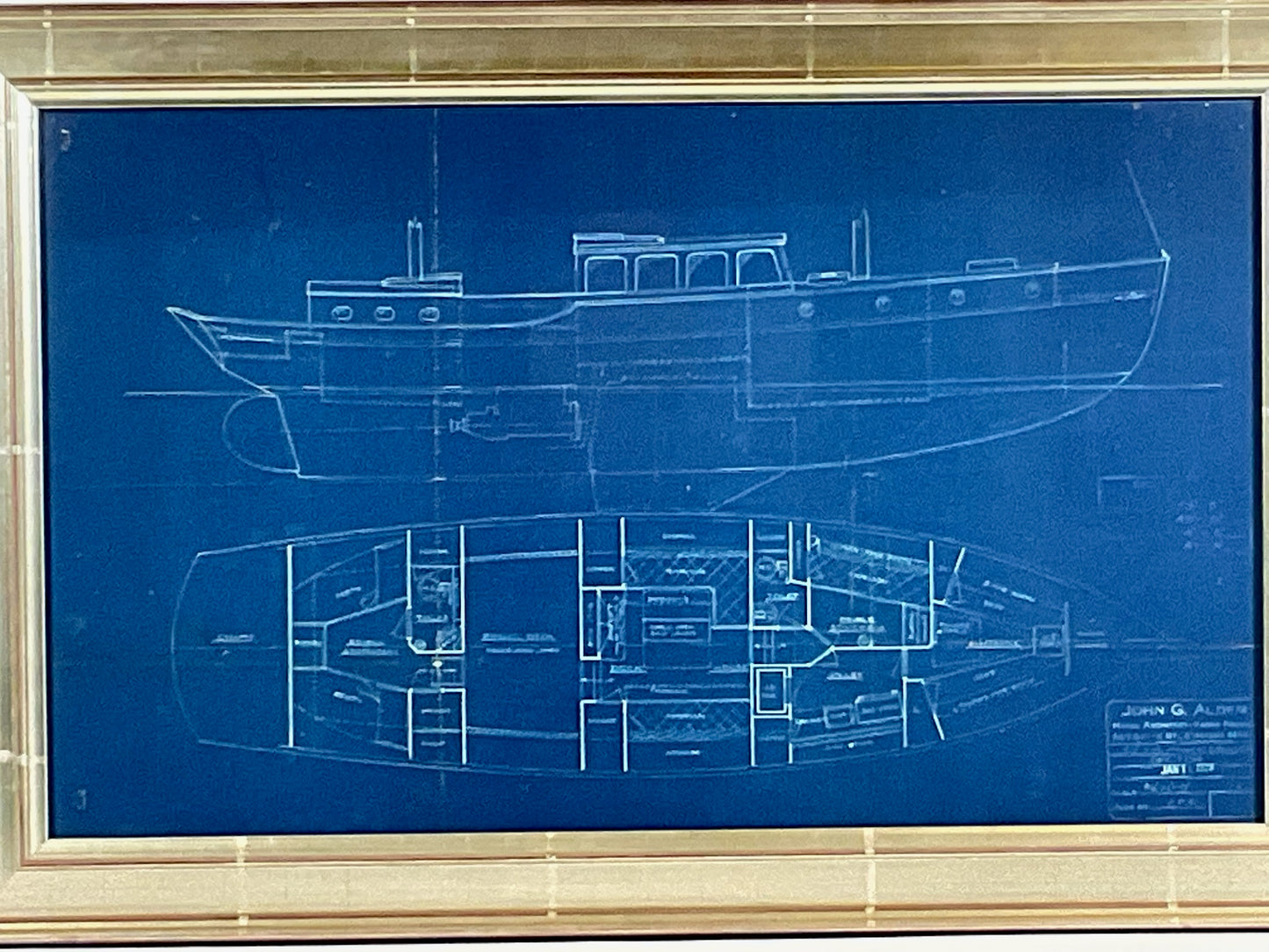

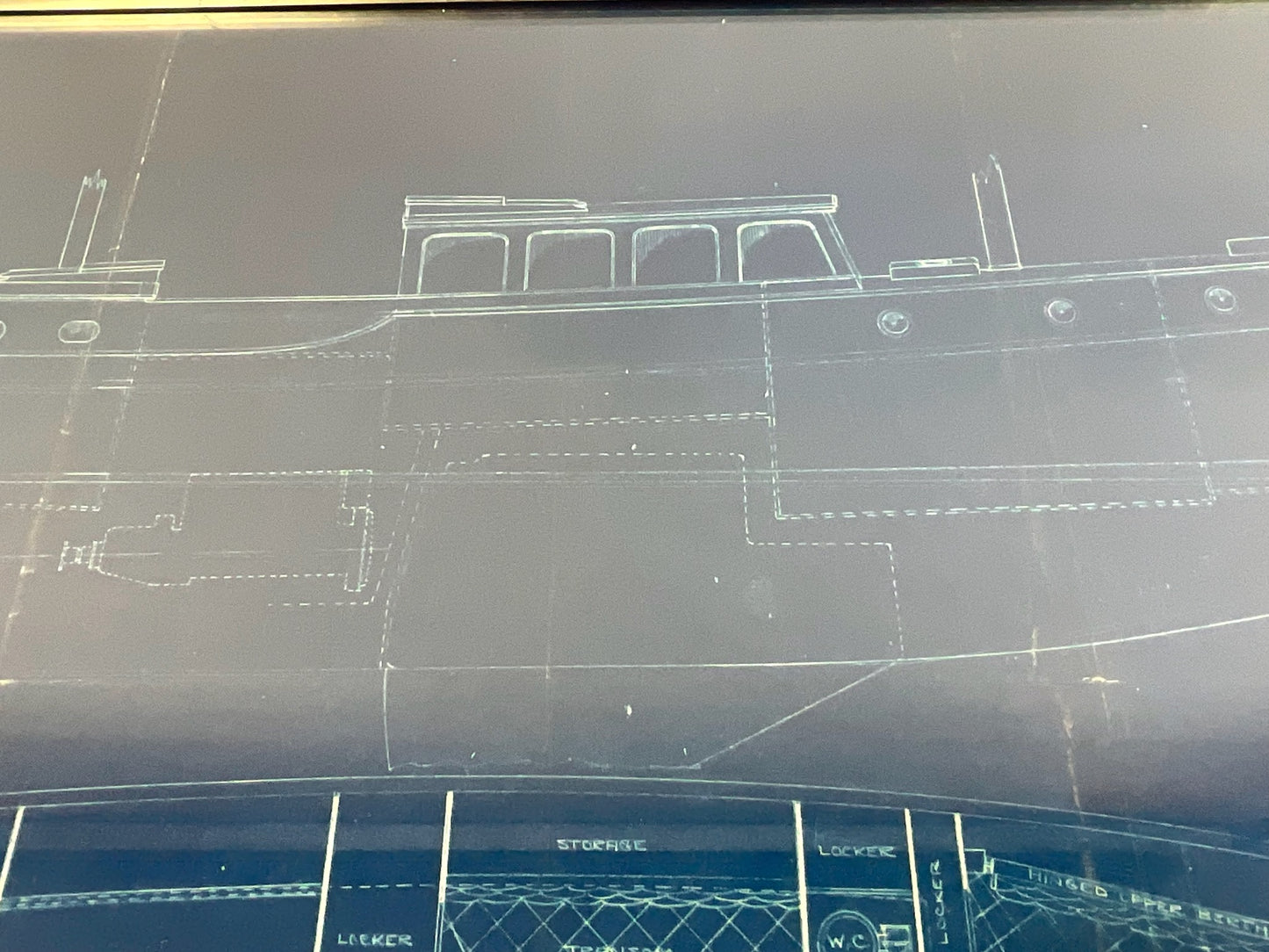

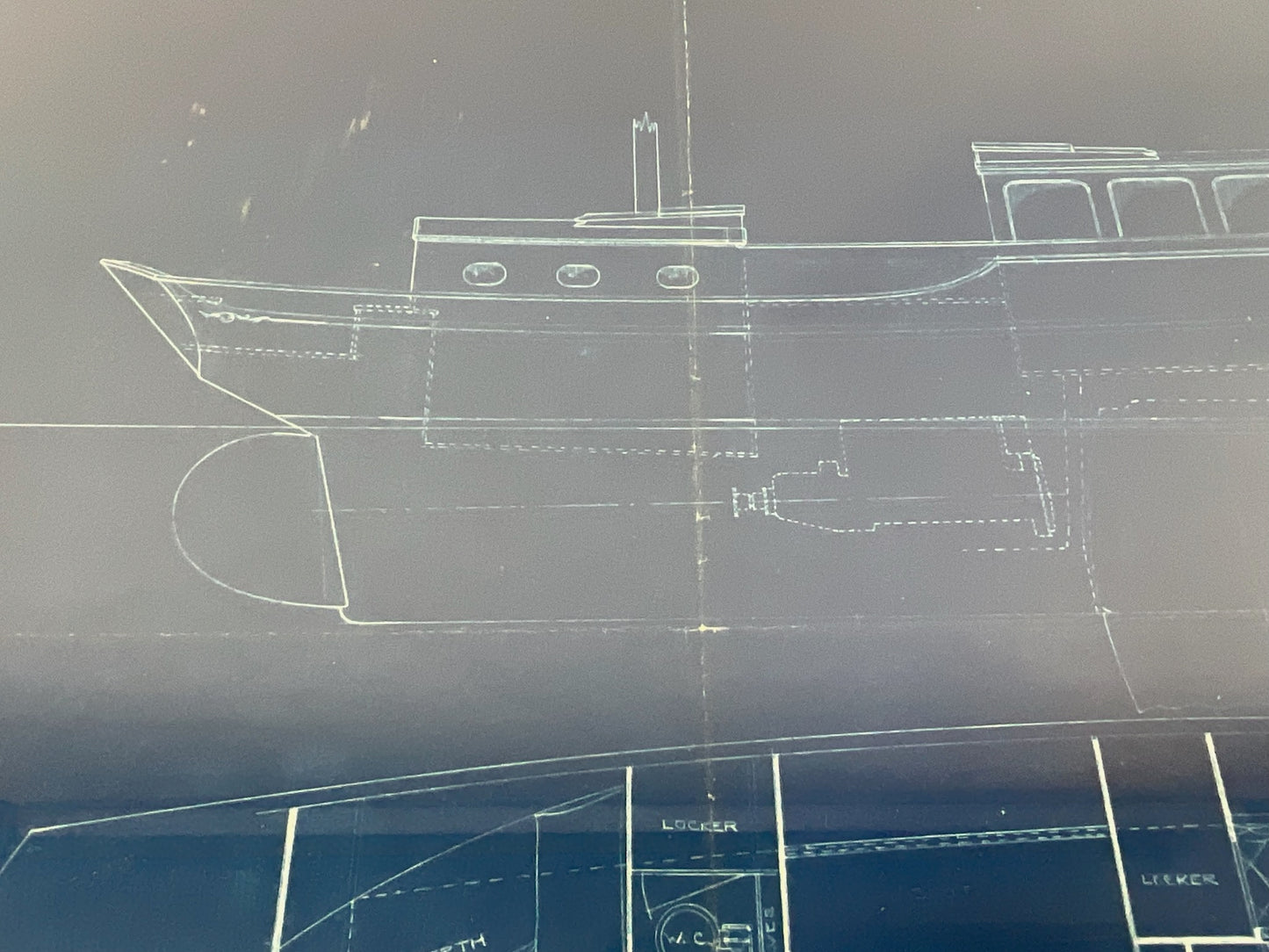

Yacht blueprint of a 53 foot power cruiser from John G Alden naval architects, 148 State St., Boston Mass. Dated January 14, 1929. The scale is three eights of an inch to one foot. Profile of hull shows wheelhouse, cabin, portholes, stubbed masts, transom, etc..

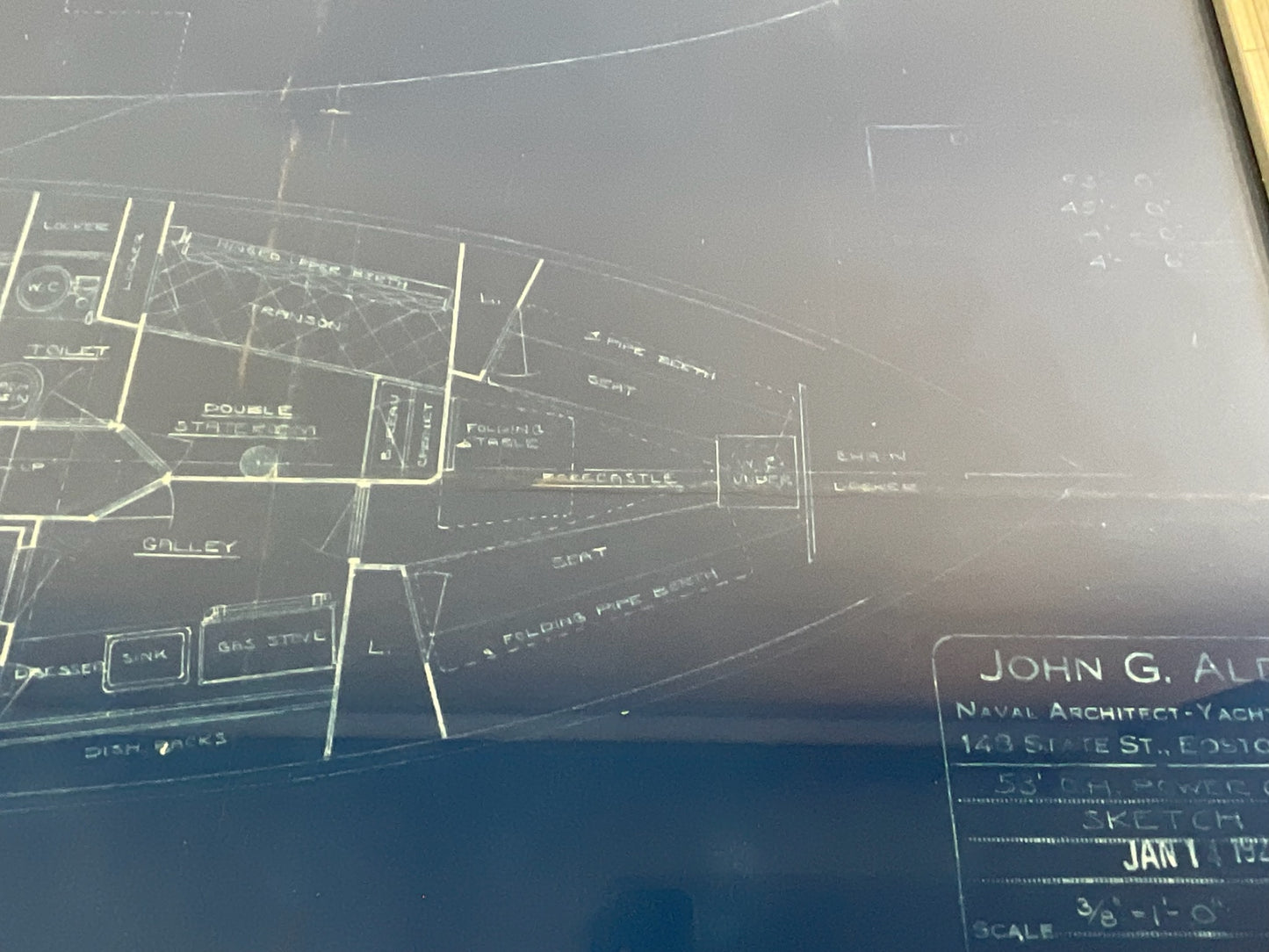

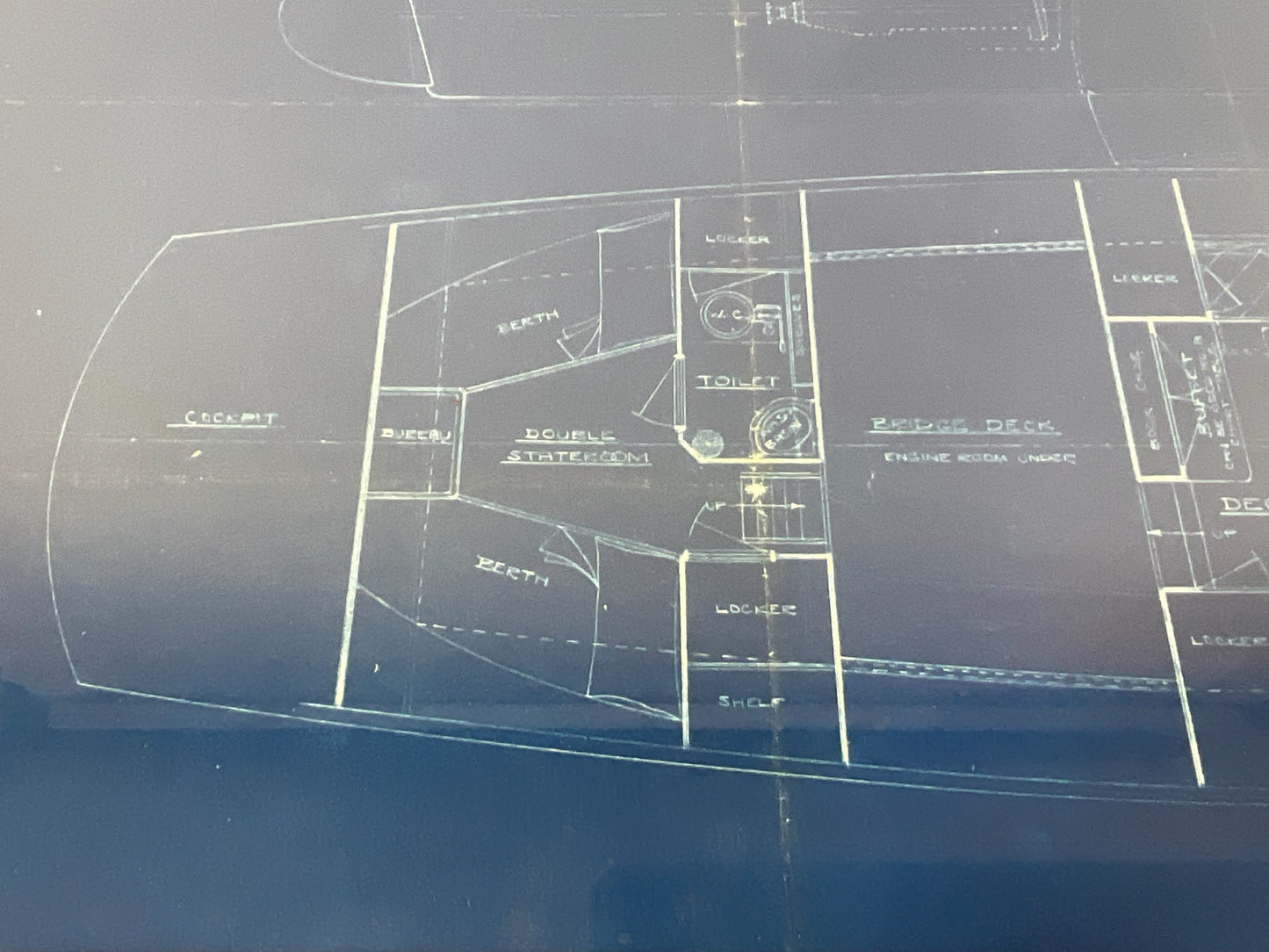

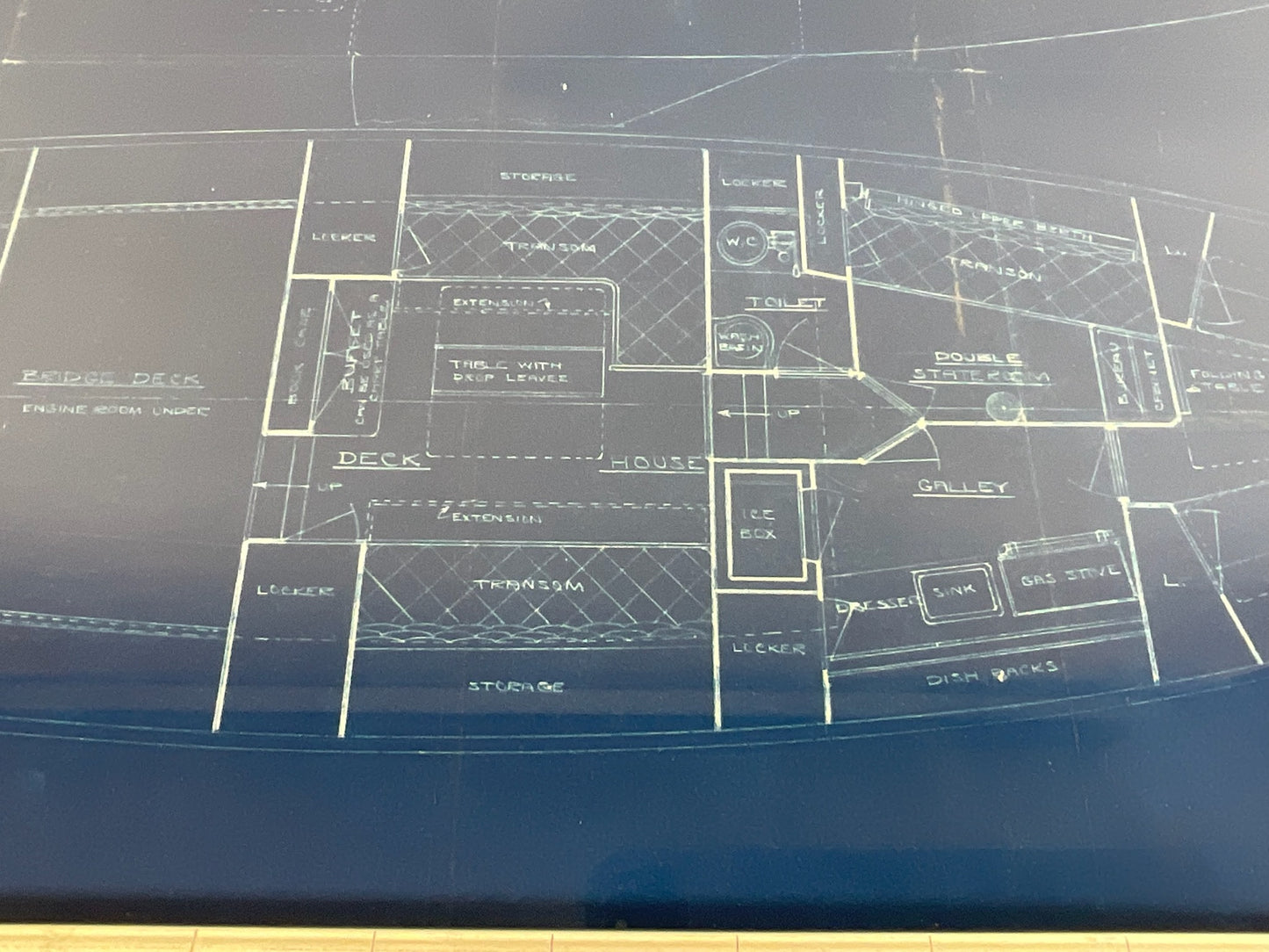

Deck drawing shows staterooms, galley, forecastle, crews quarters, berths, cockpit, toilet, chain locker, etc.. Quite detailed marine drawing.

Weight: 6 lbs.

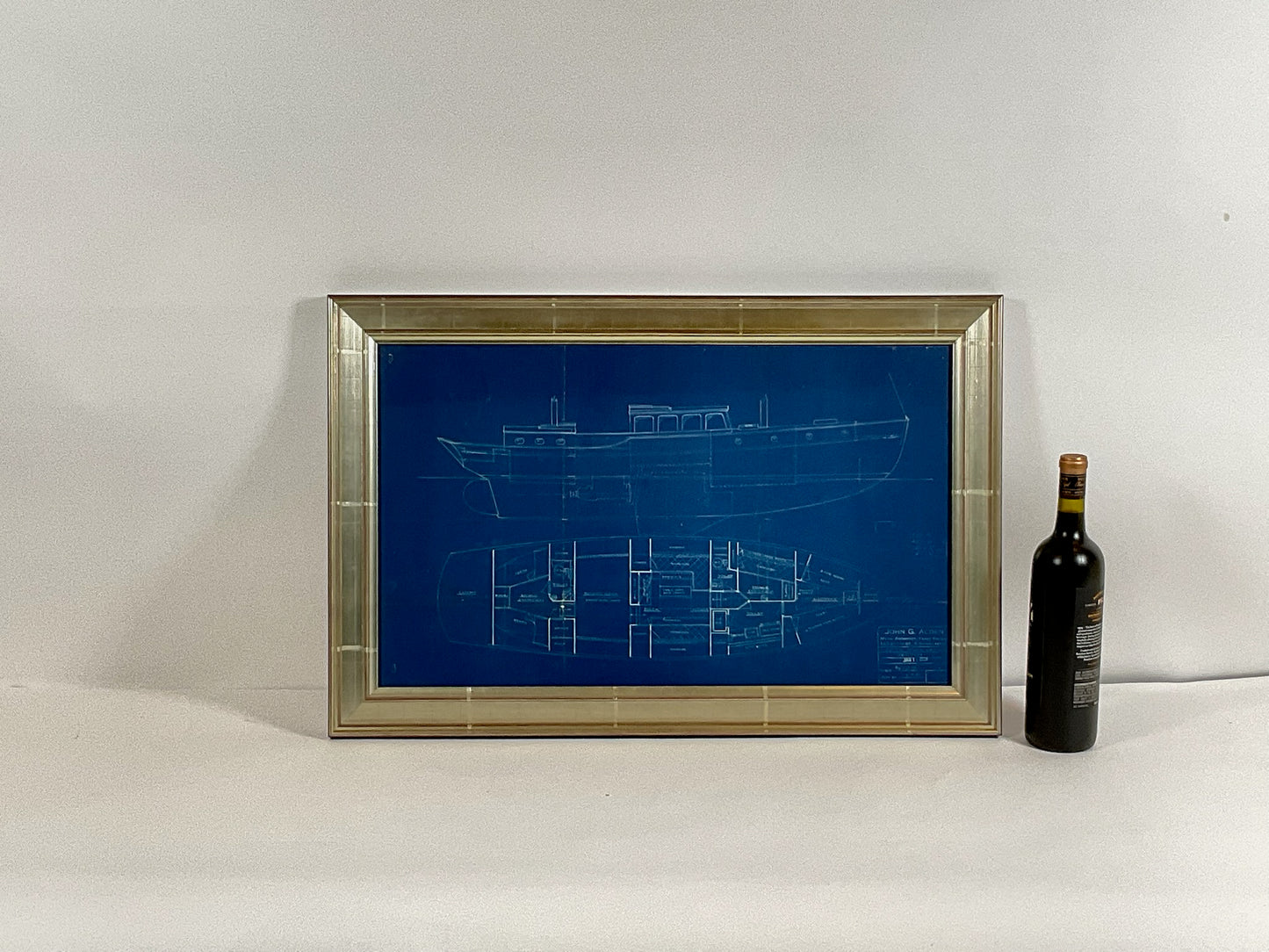

Overall Dimensions: 19"H x 28"W
Made: American
Material: Paper
Date: 1929
