Original Yacht Blueprint of an Eldredge-McInnis 55-Foot Express Cruiser Yacht

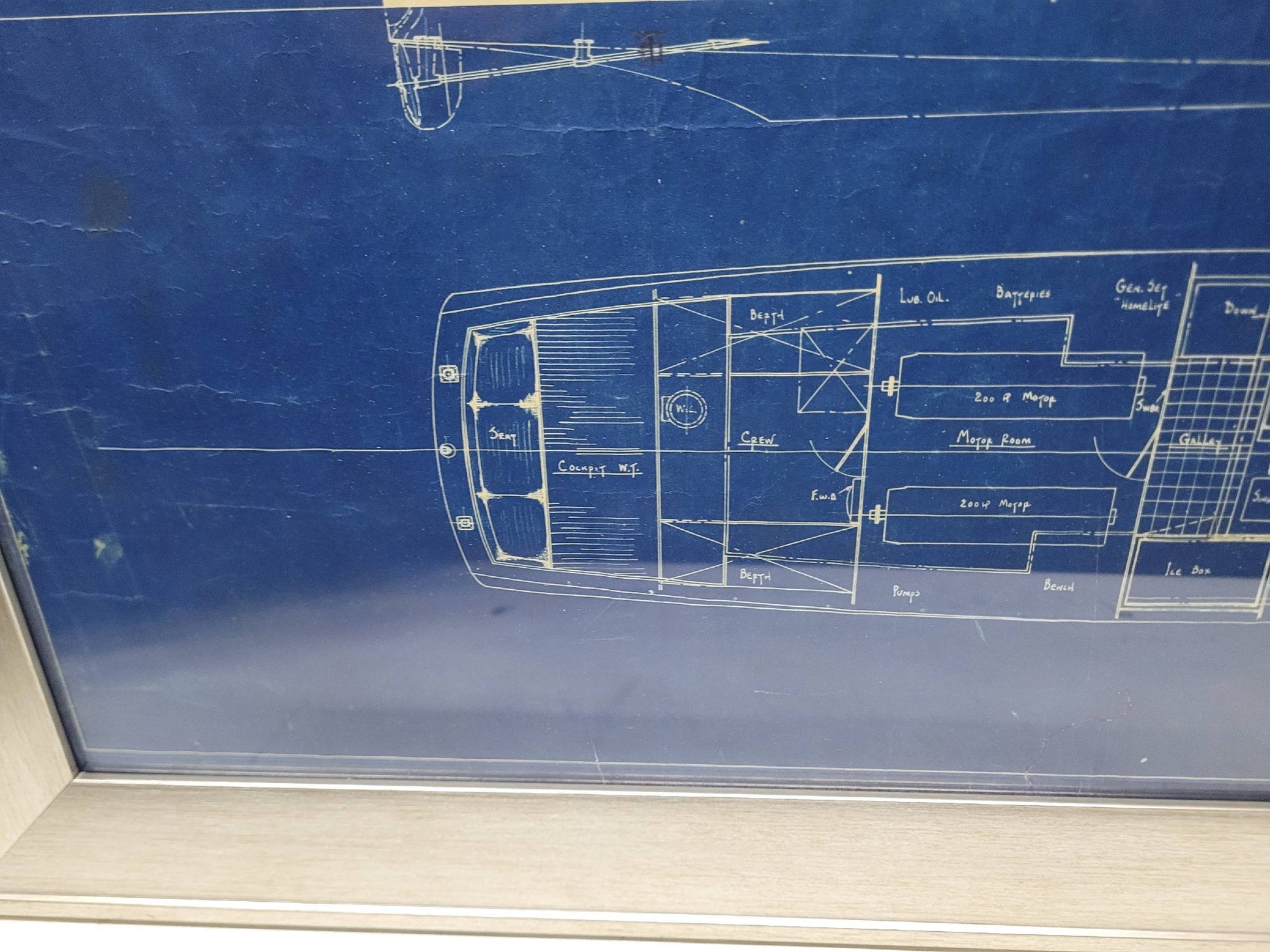

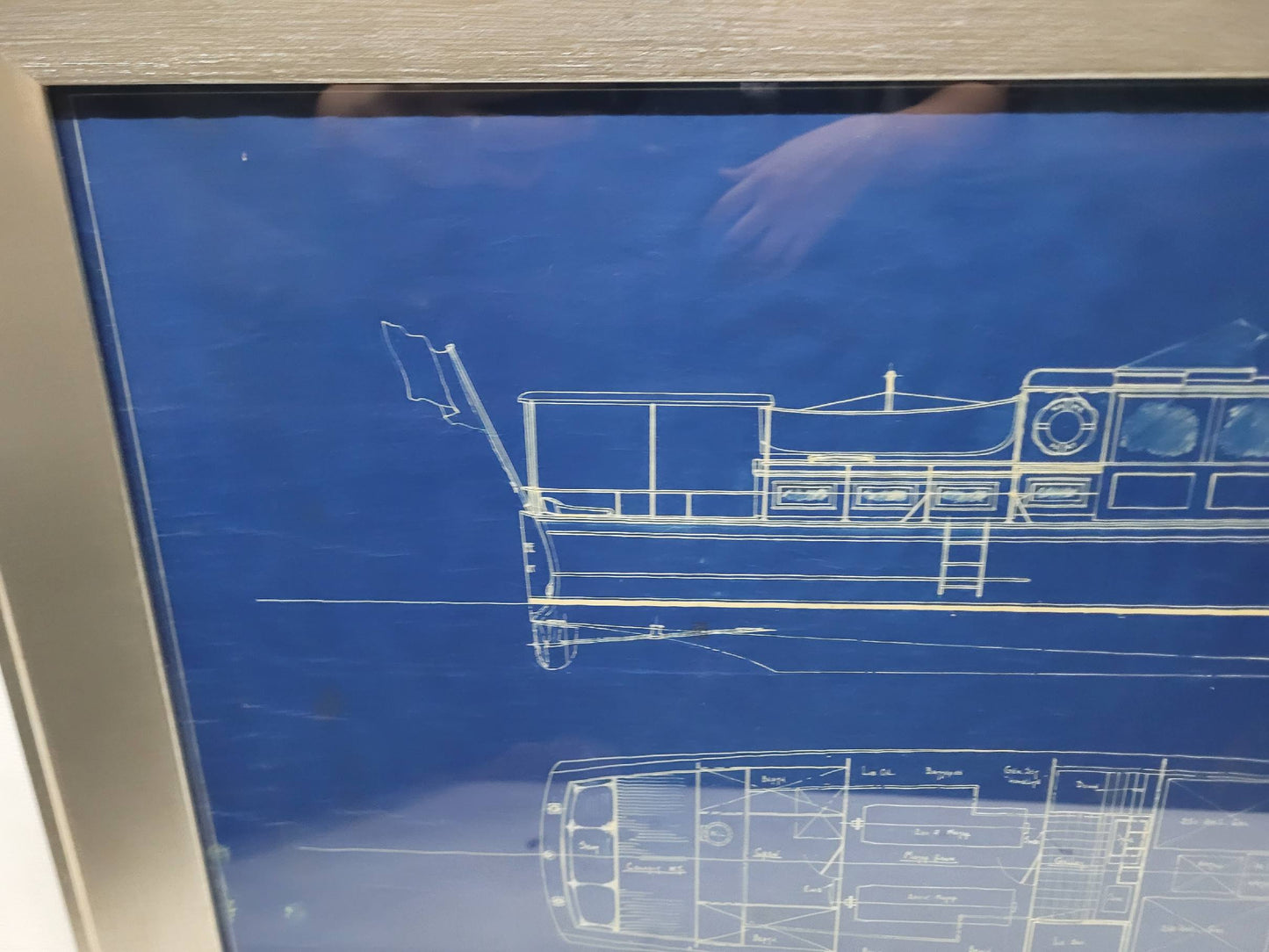

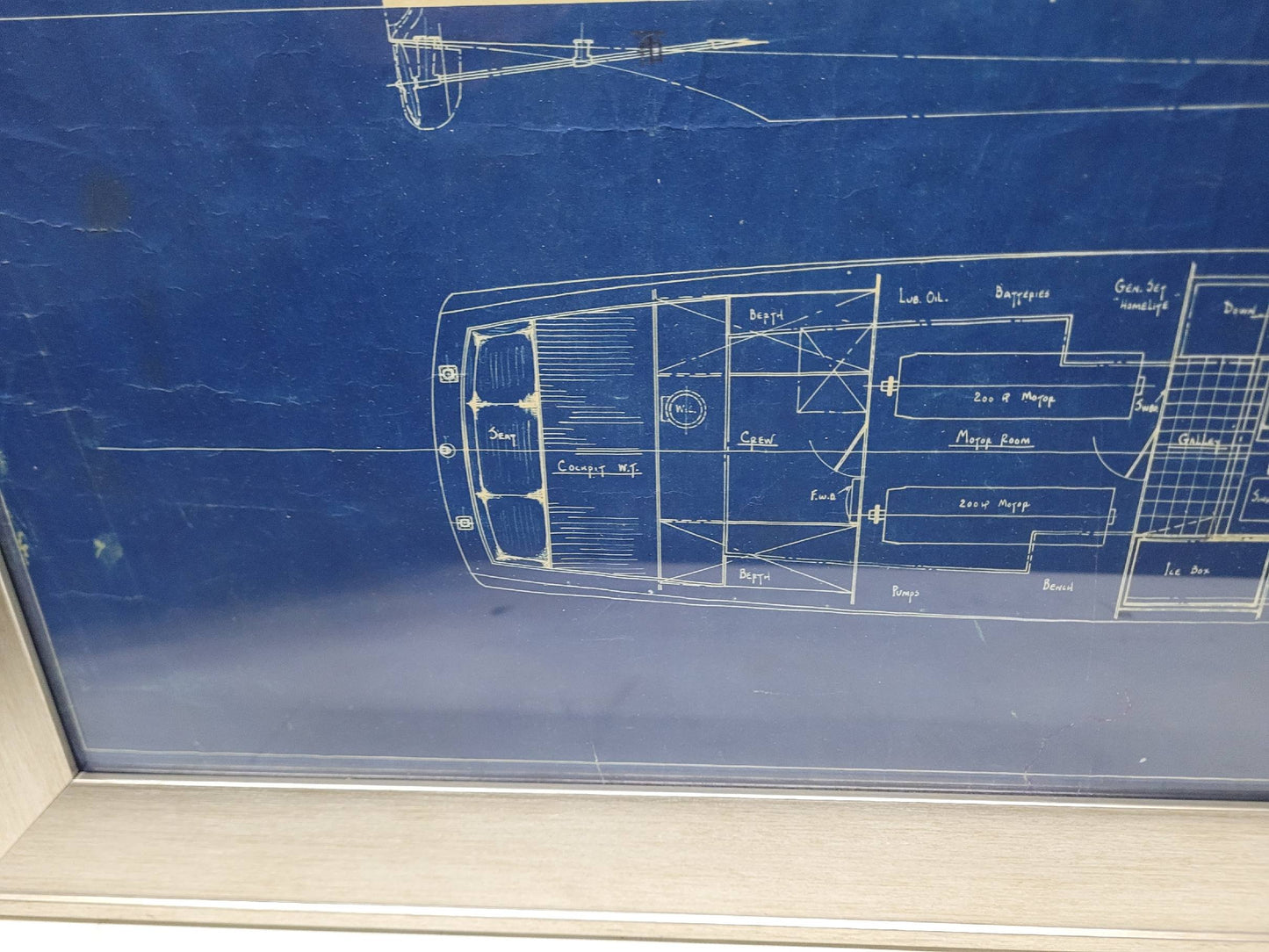

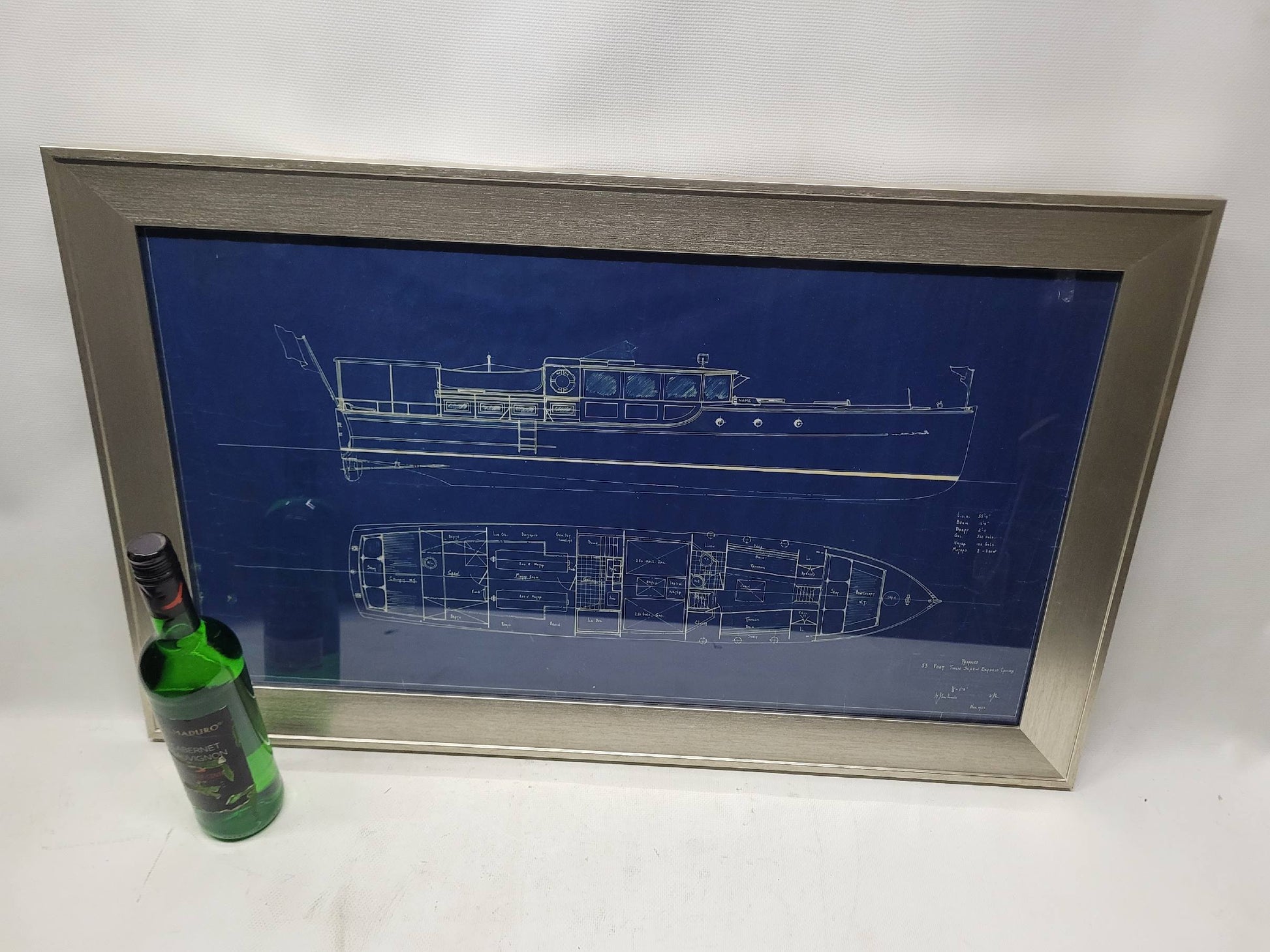

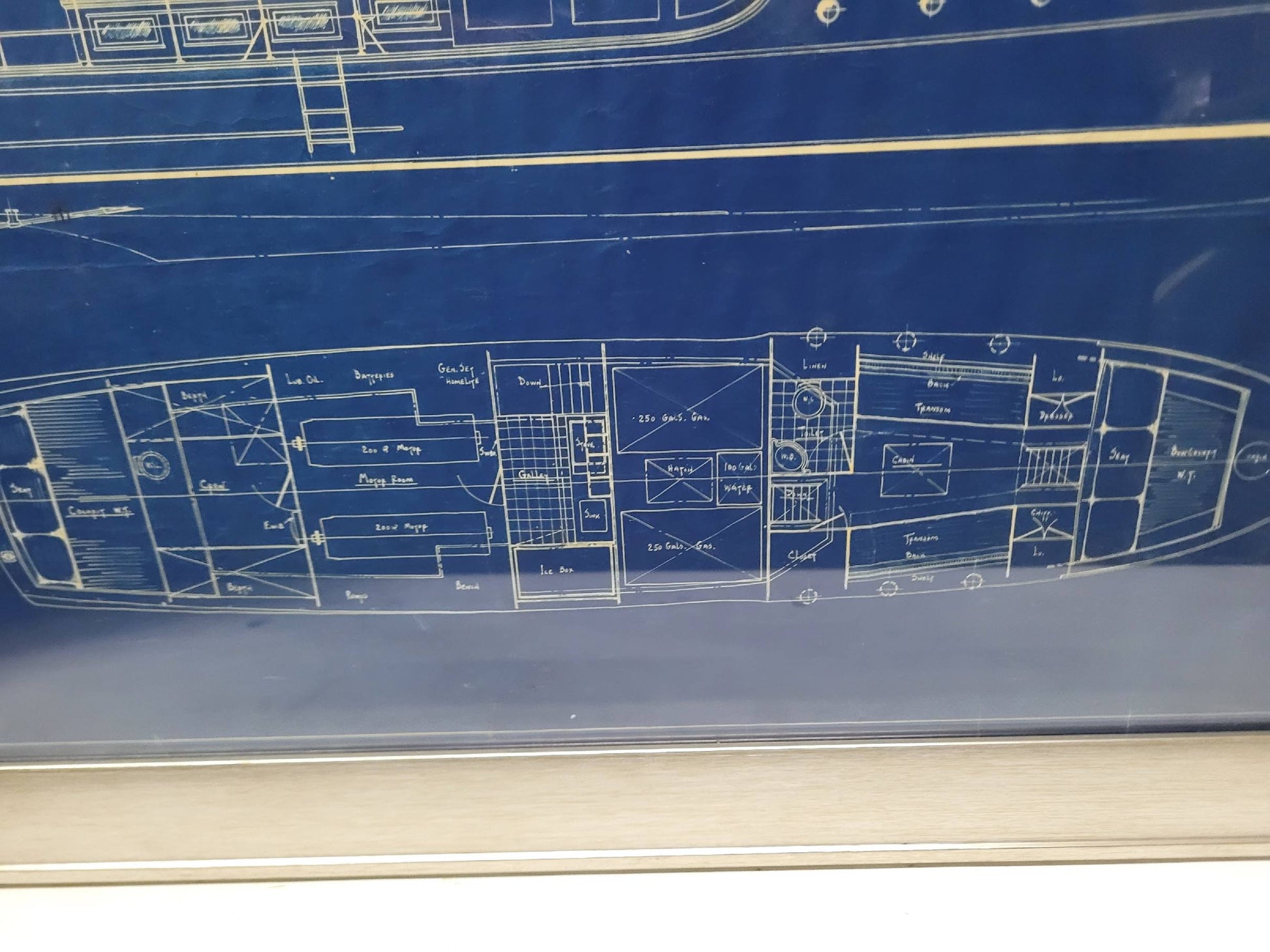

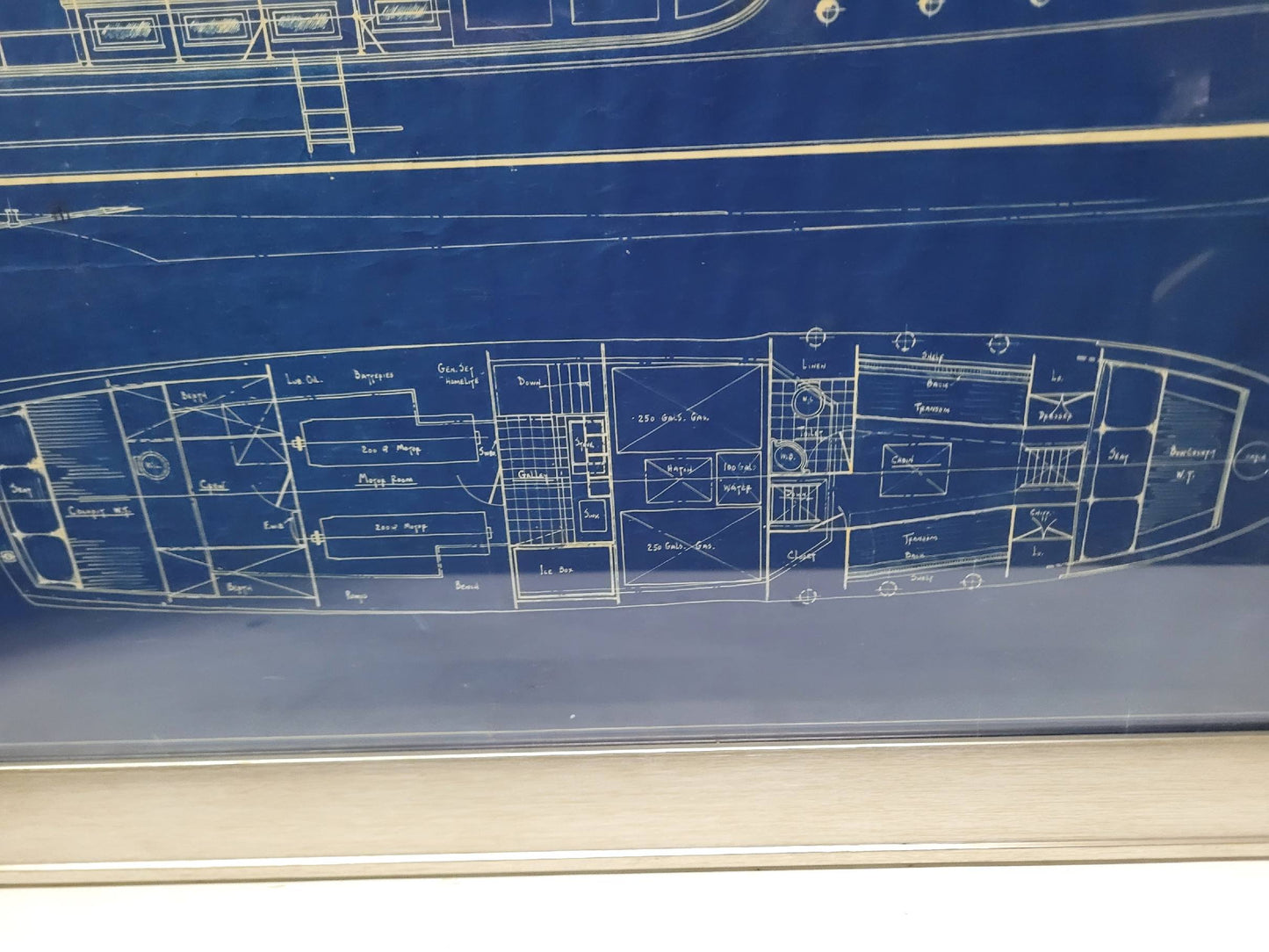

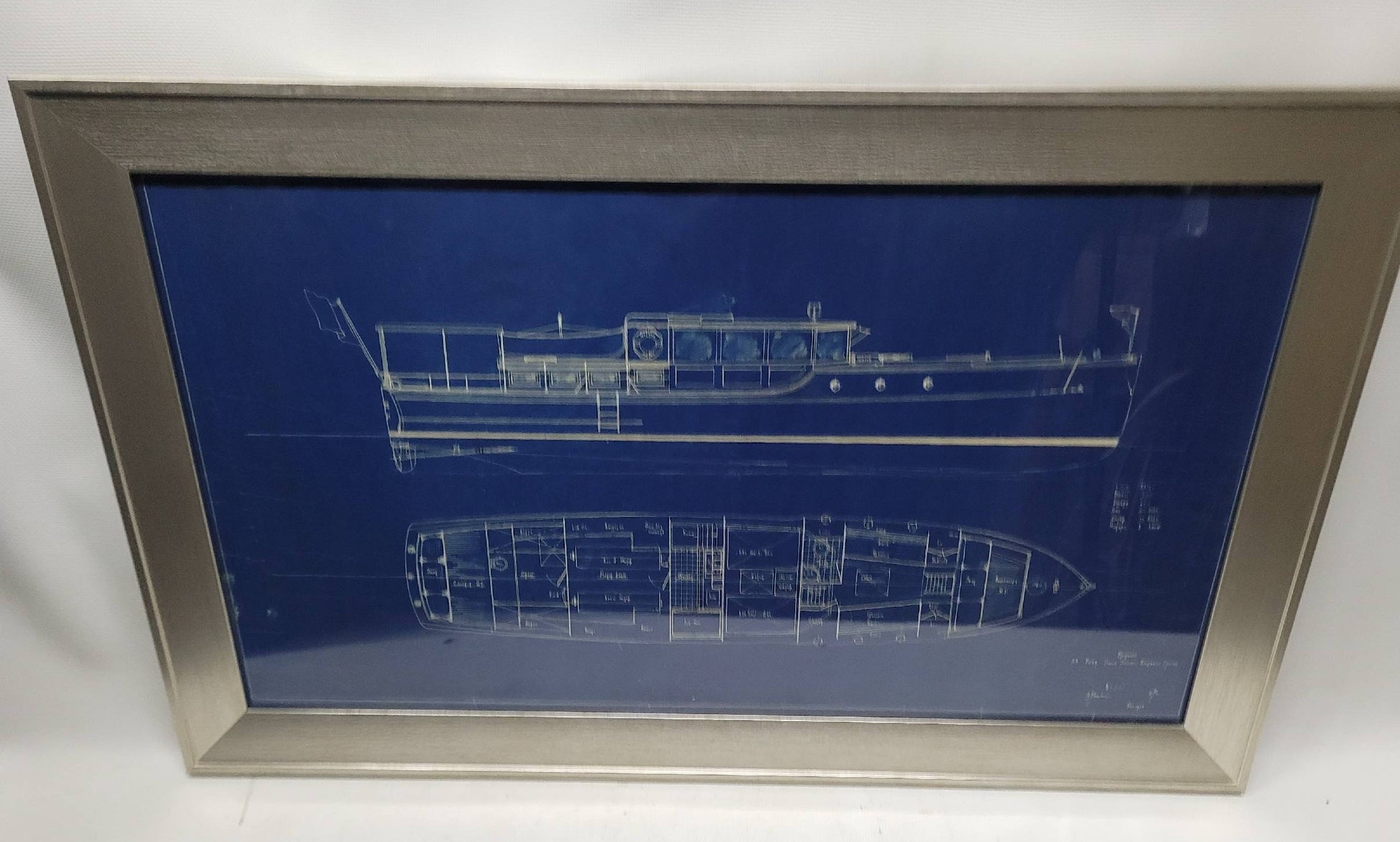

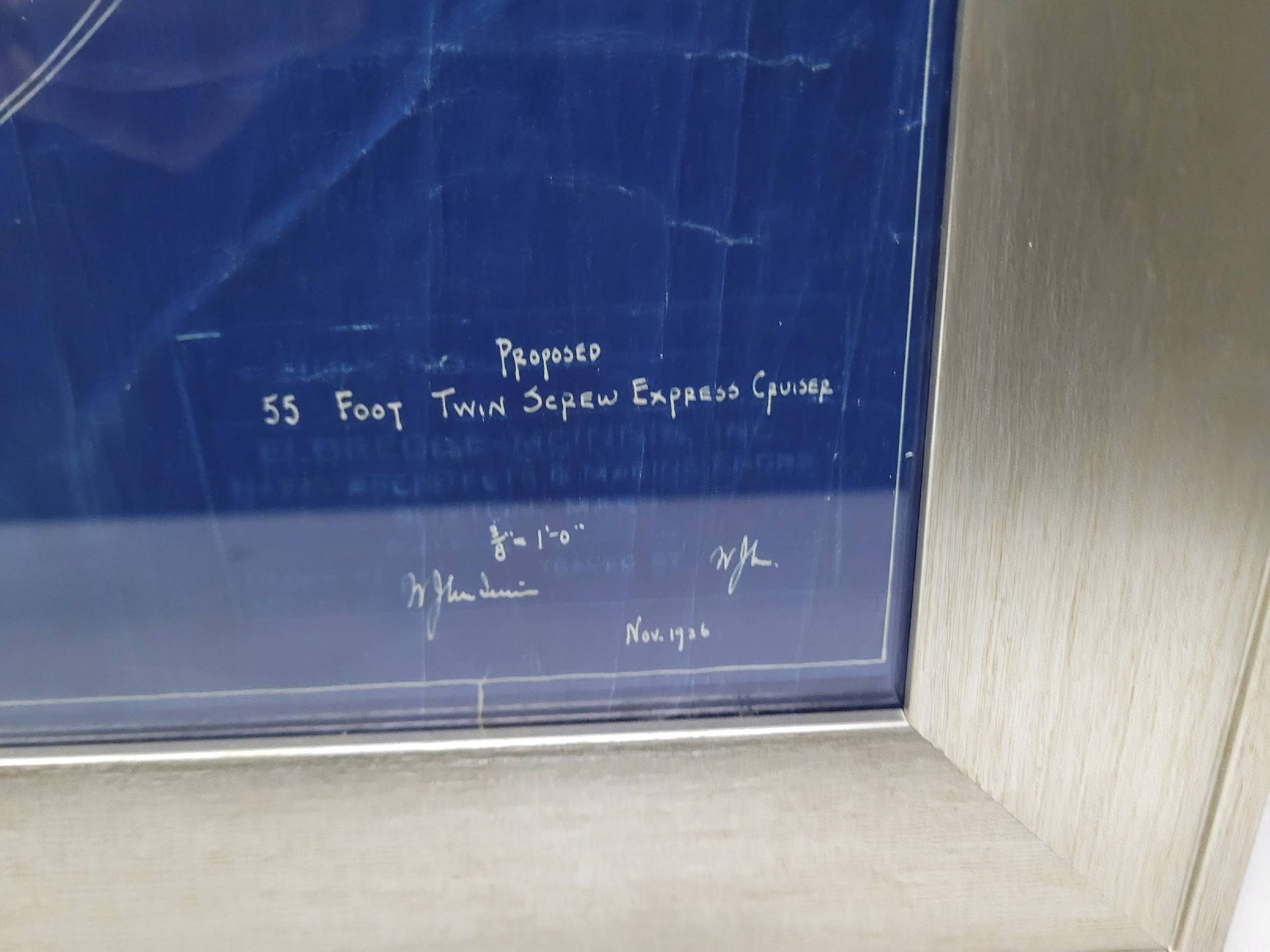

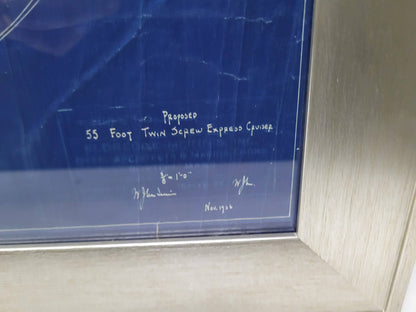

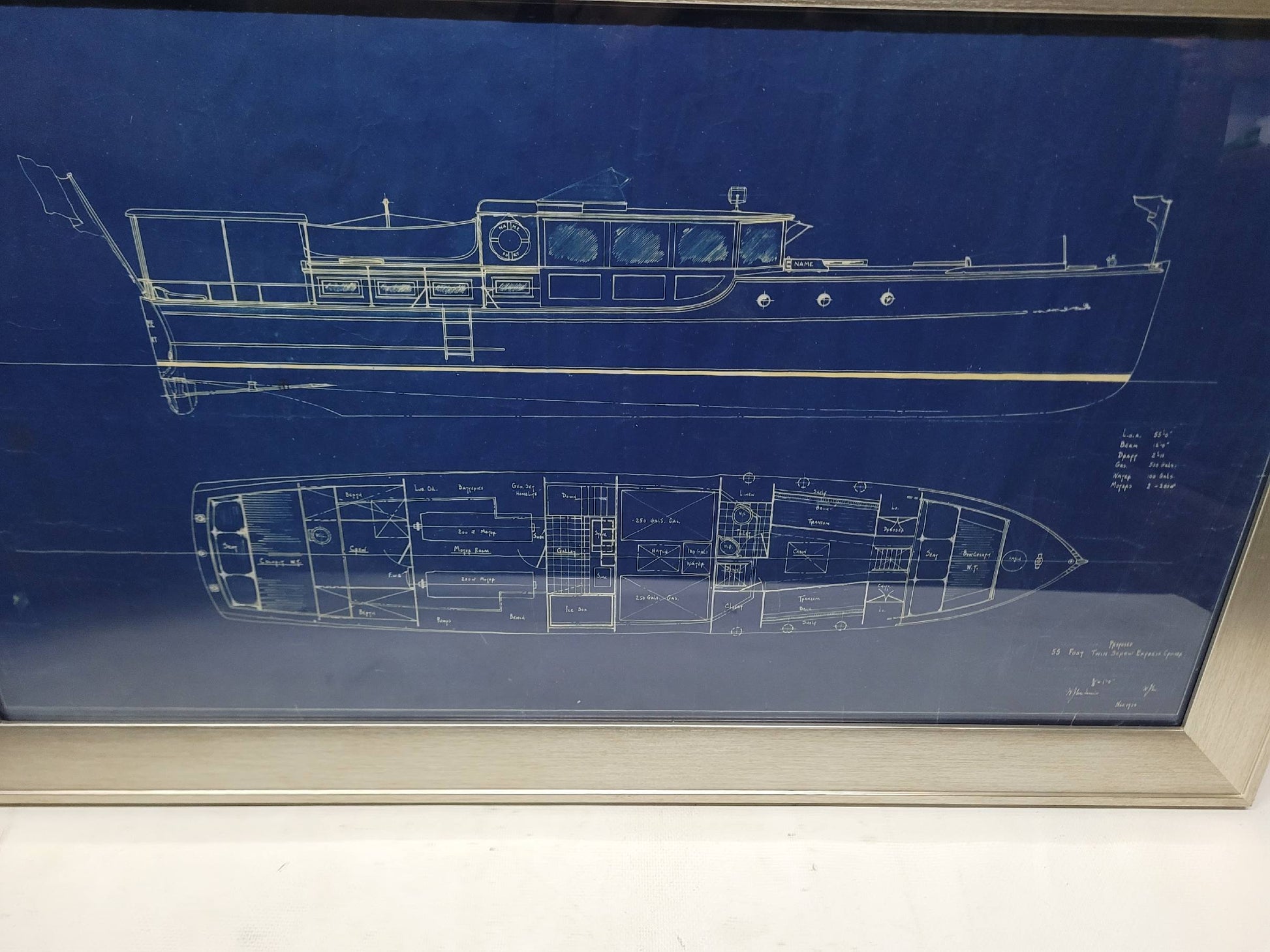

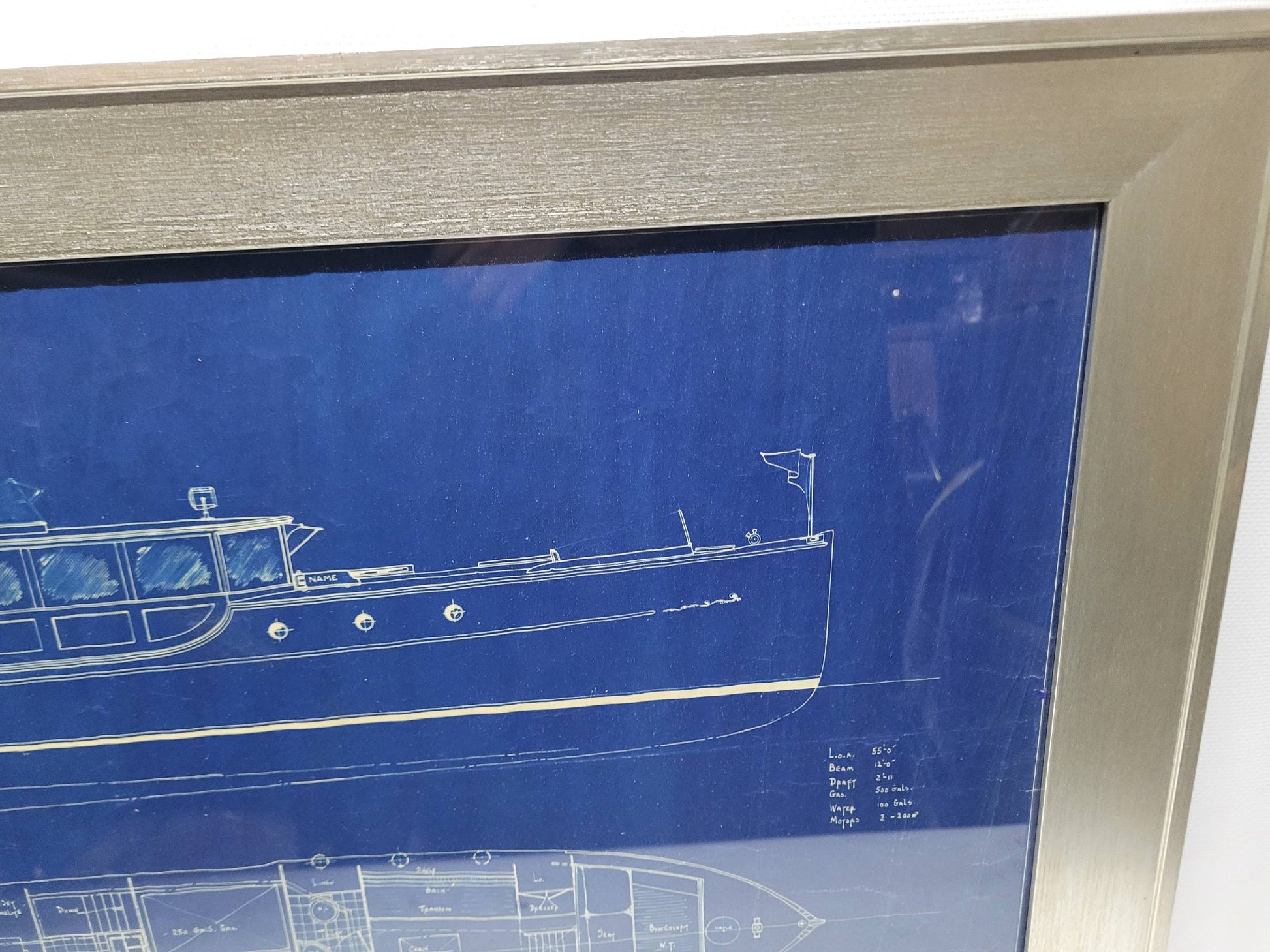

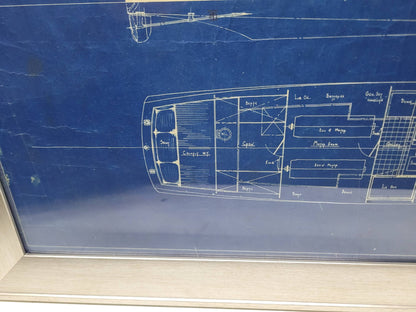

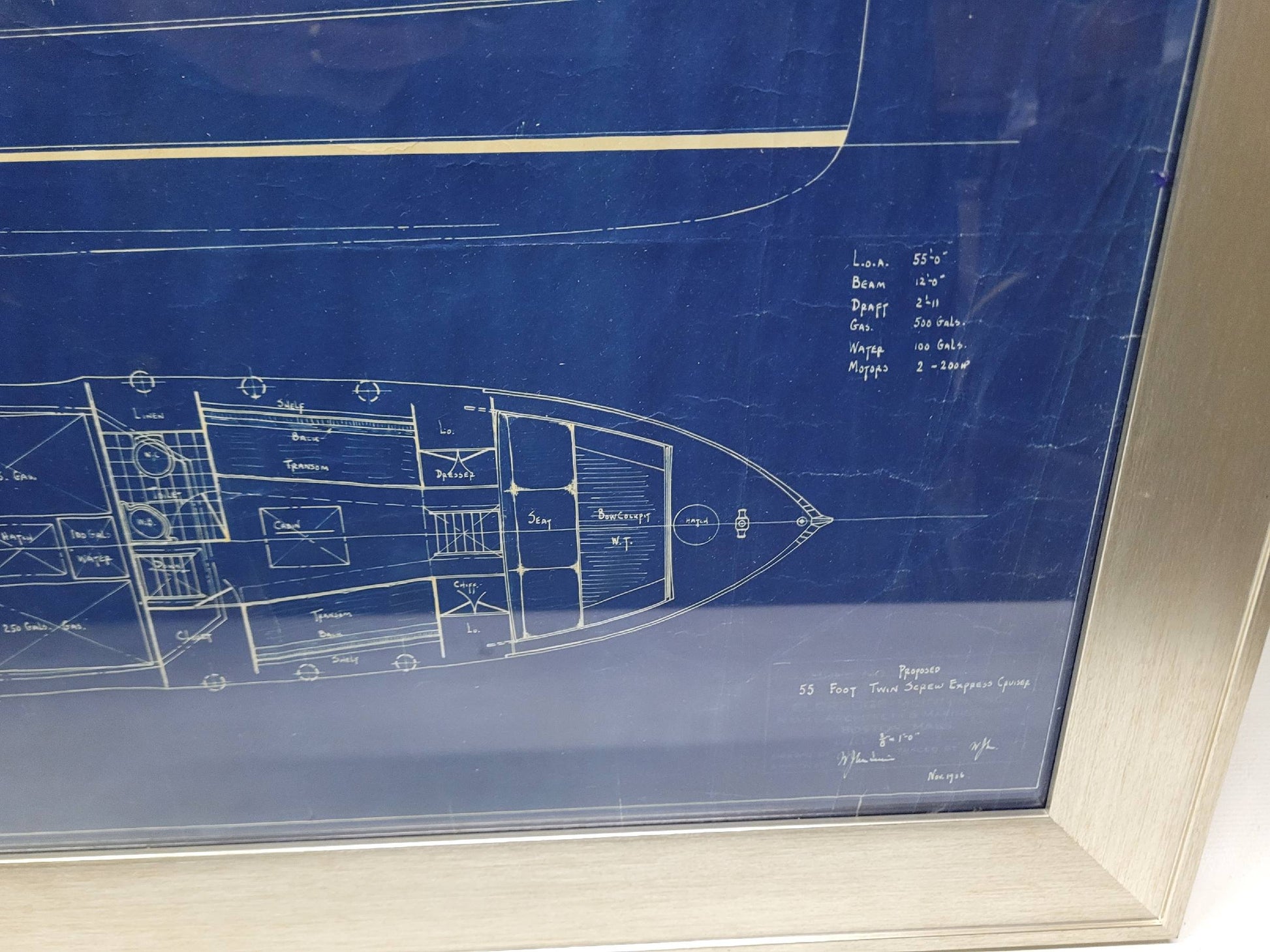

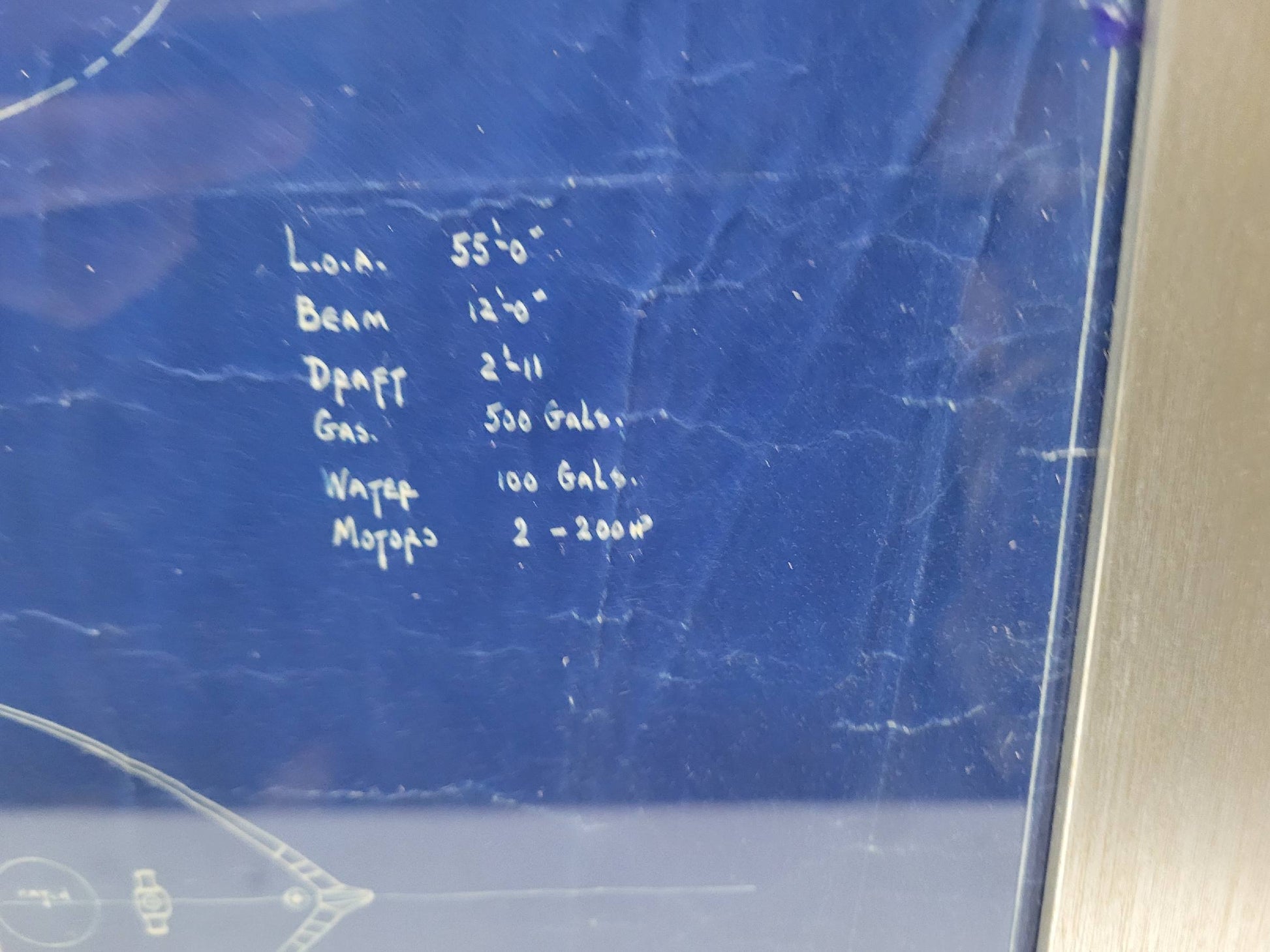

Authentic and original blueprint of a fifty-five-foot twin-screw express cruiser. Dated November 1926. This is a rich blue plan showing a full hull profile with cabins, skylights, flagstaffs, lifering, nameboards, etc. The below-deck drawing shows skylight, berths, bow cockpit, galley, motors, etc. Vessel dimensions are LOA: 55'0", beam: 12'0", draft: 2'11", fuel capacity: 500 gallons, water capacity: 100 gallons, motors: two 200 HP engines.

Weight:    20 lbs.
Overall Dimensions:    21"H x 34"W
Made:    America
Material:    Paper, Glass
Date:    1926
