Yacht Blueprint from John G. Alden

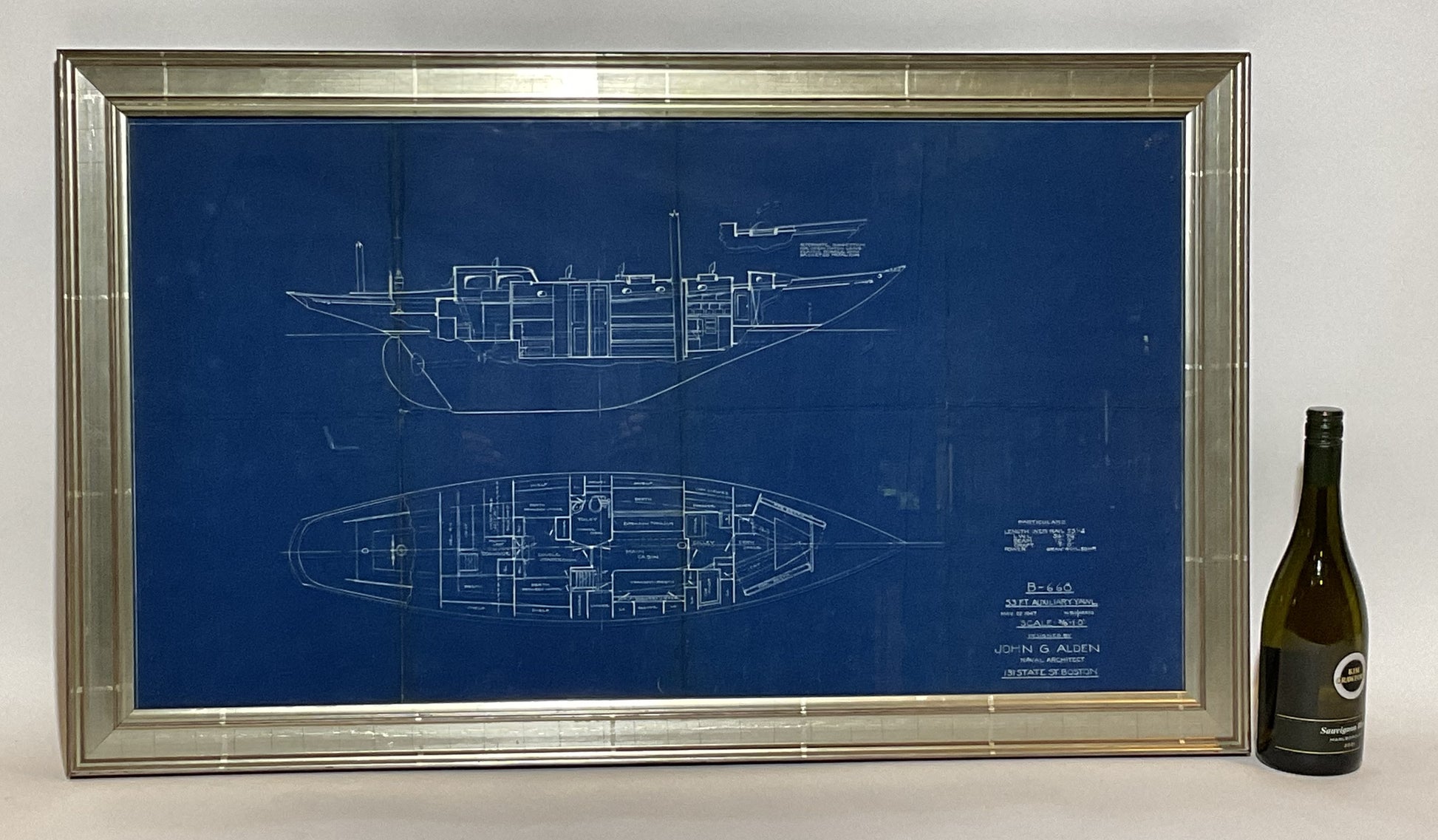

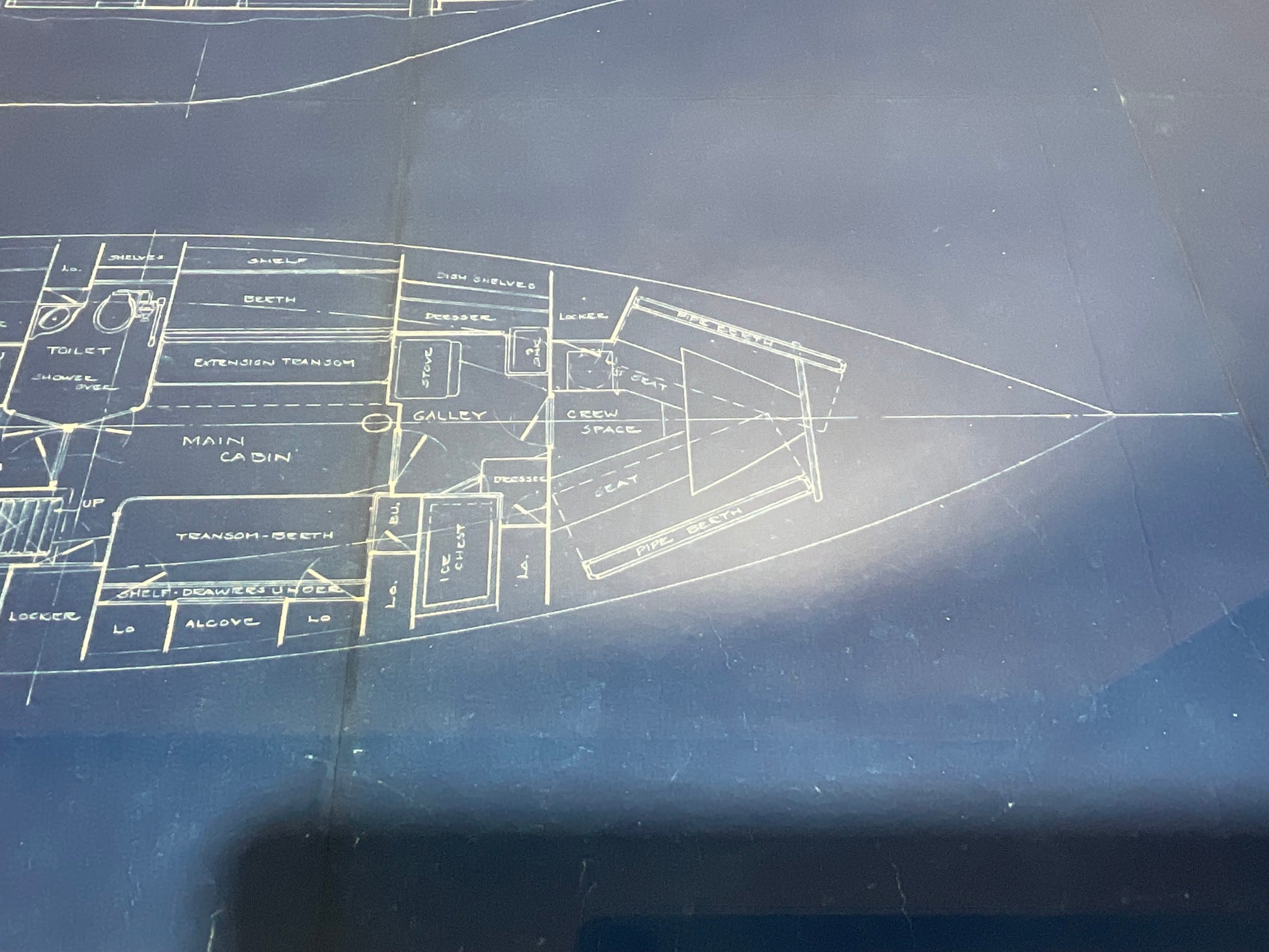

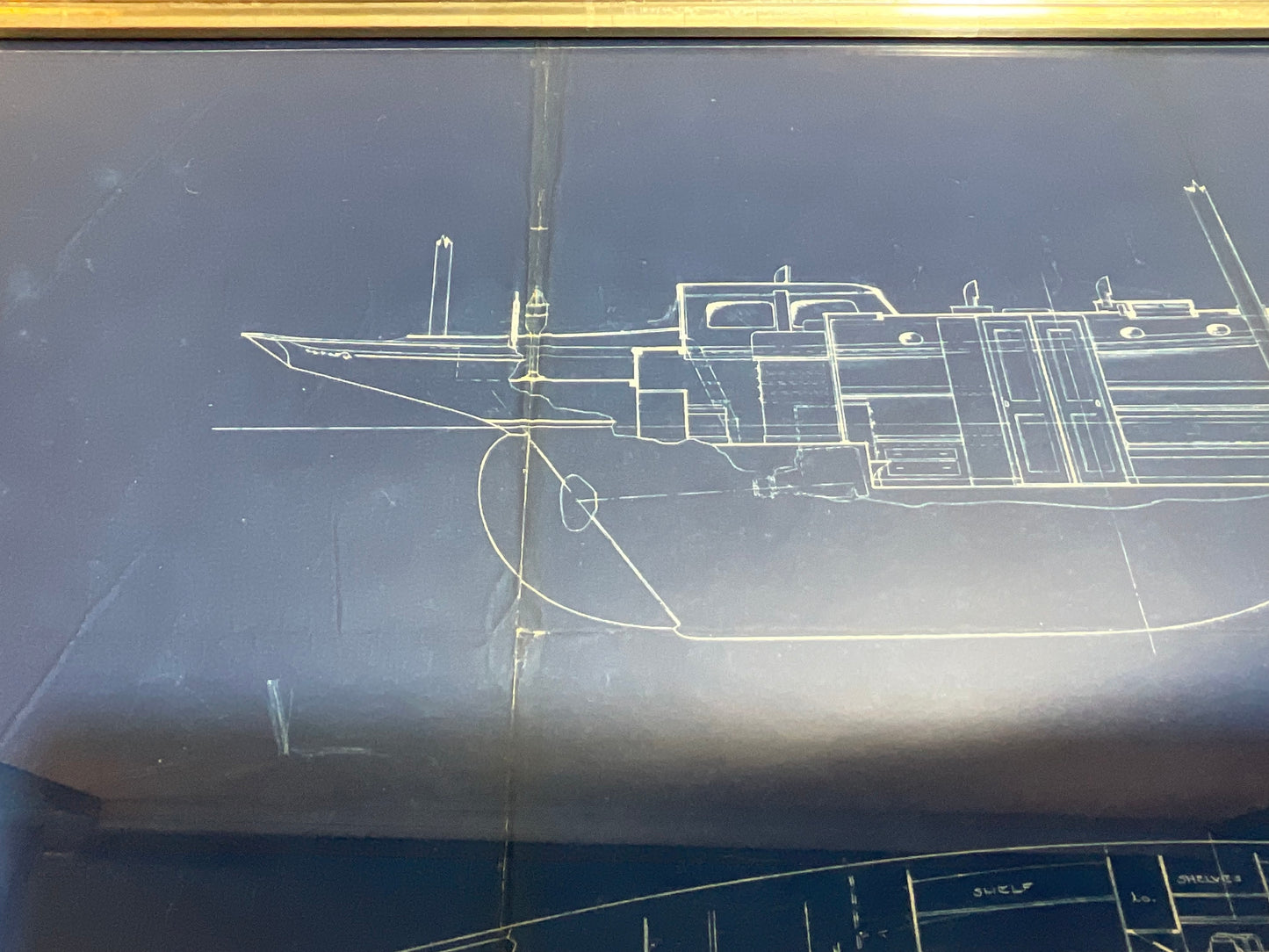

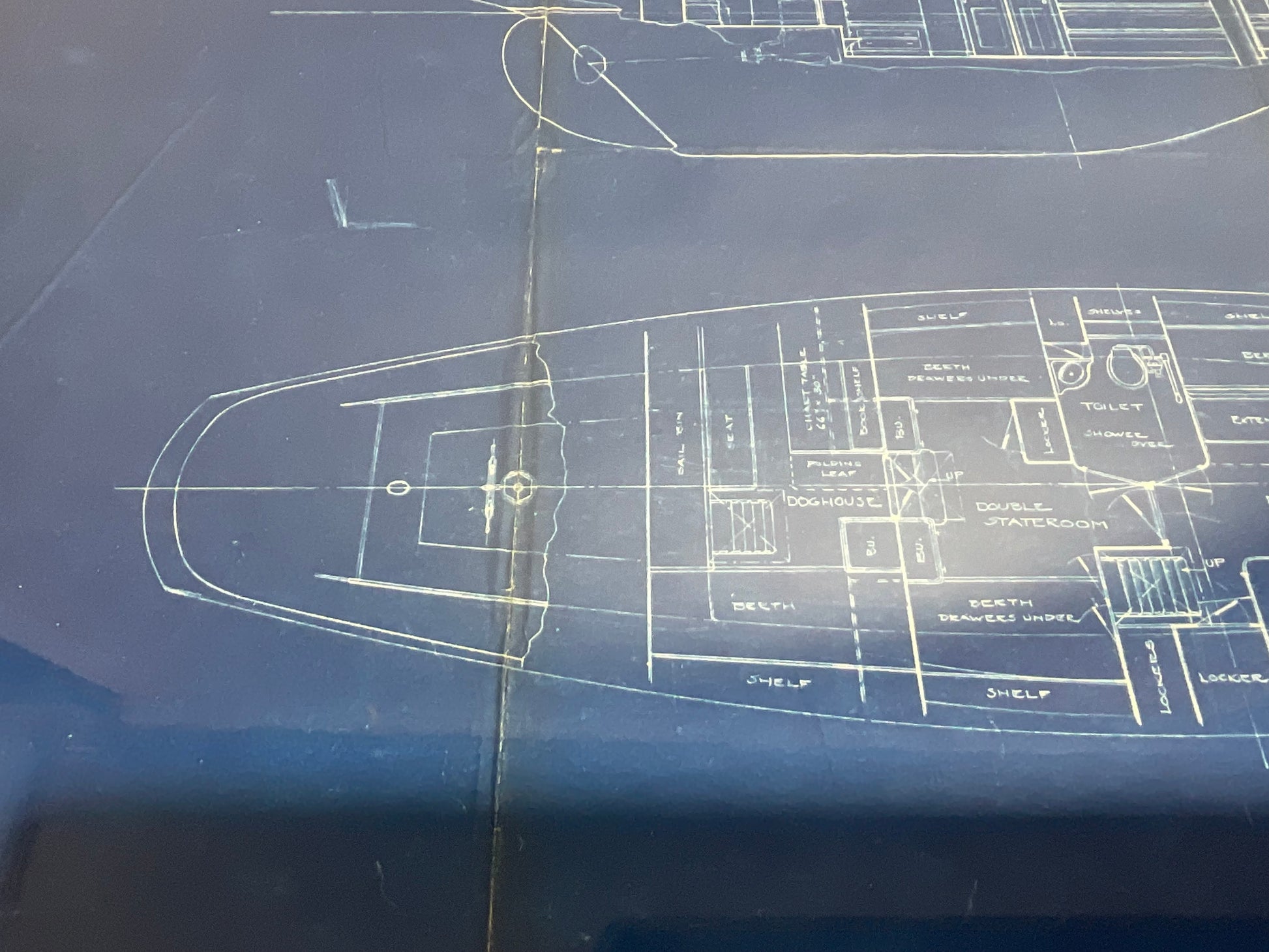

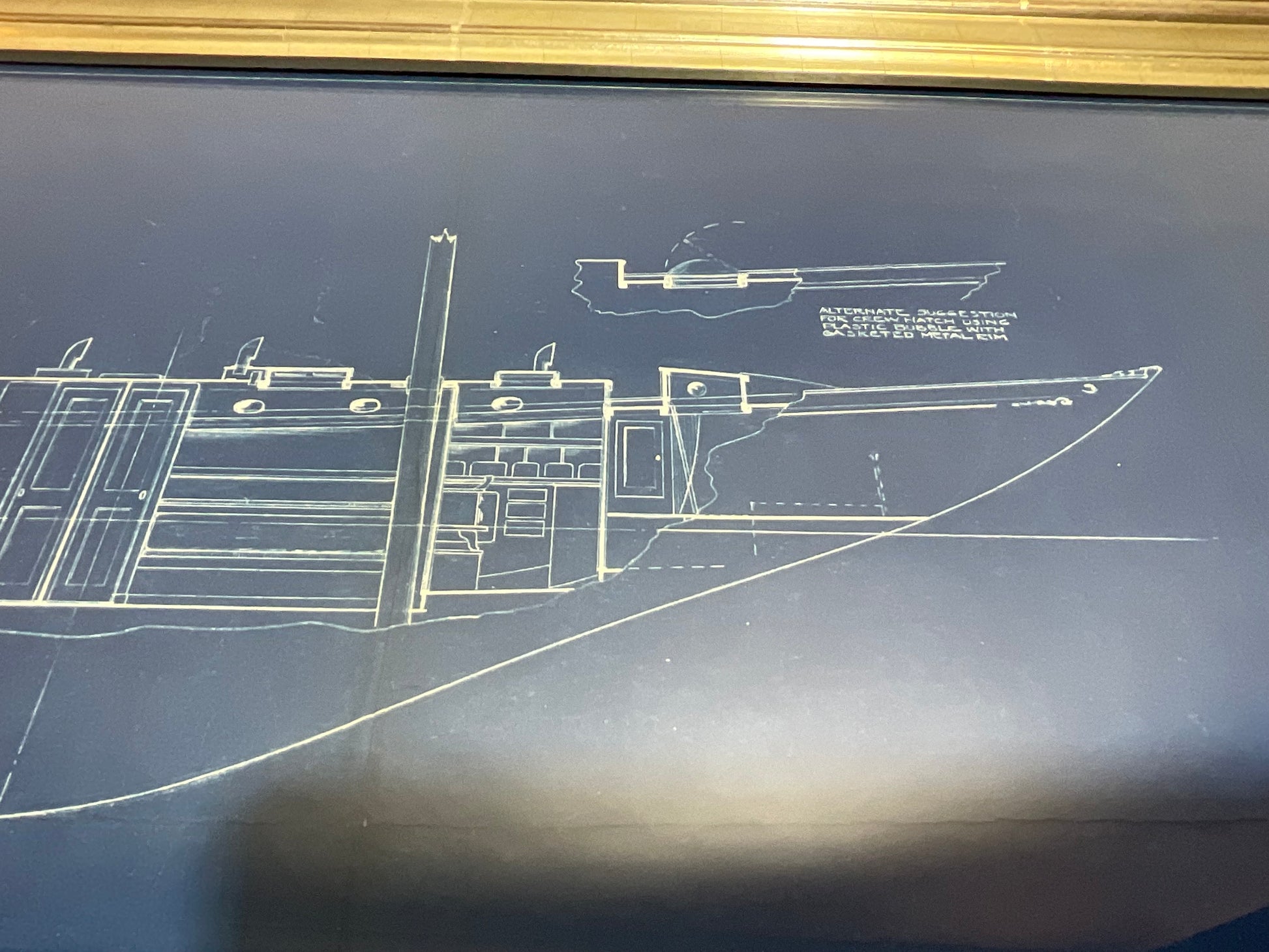

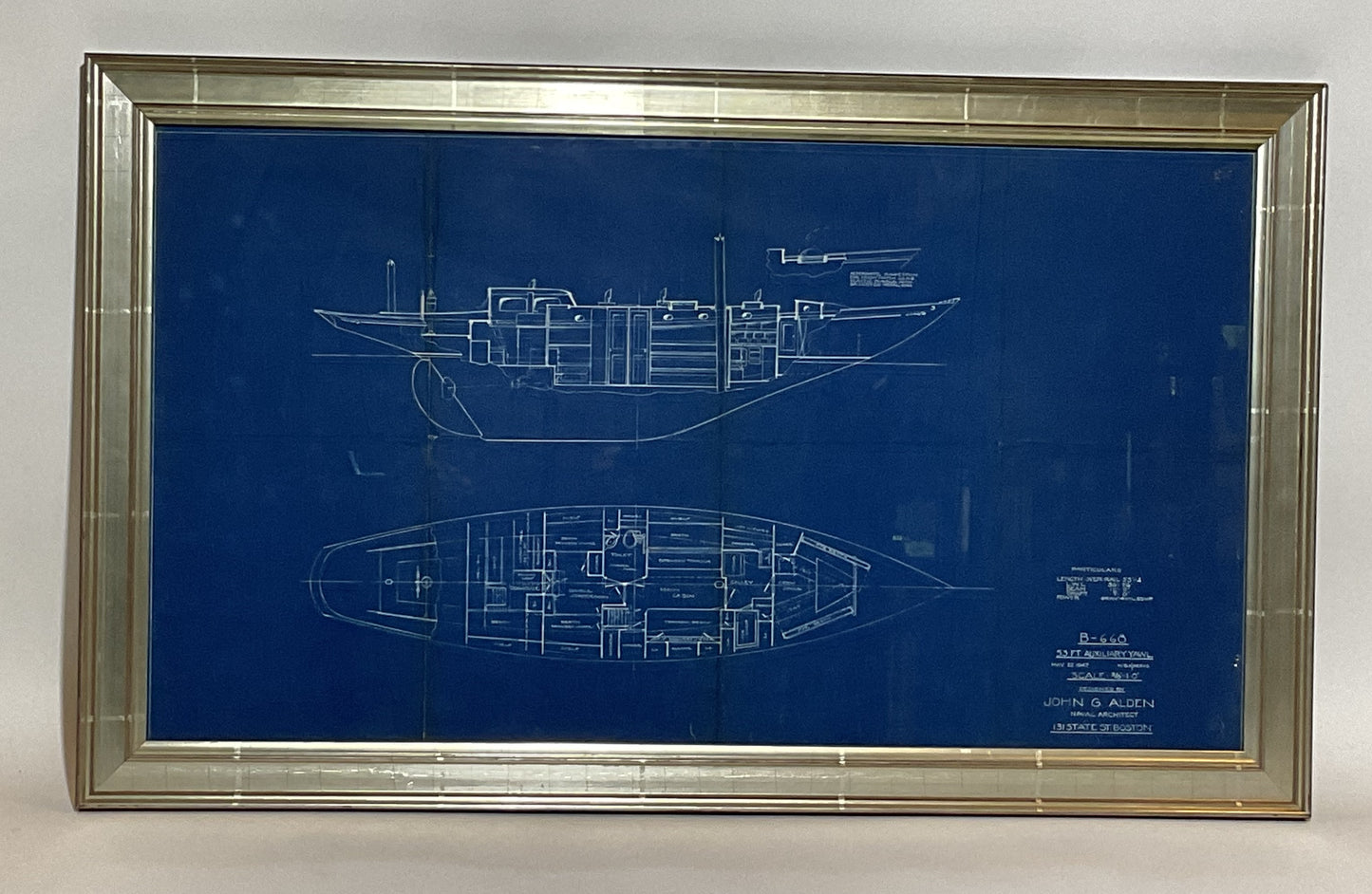

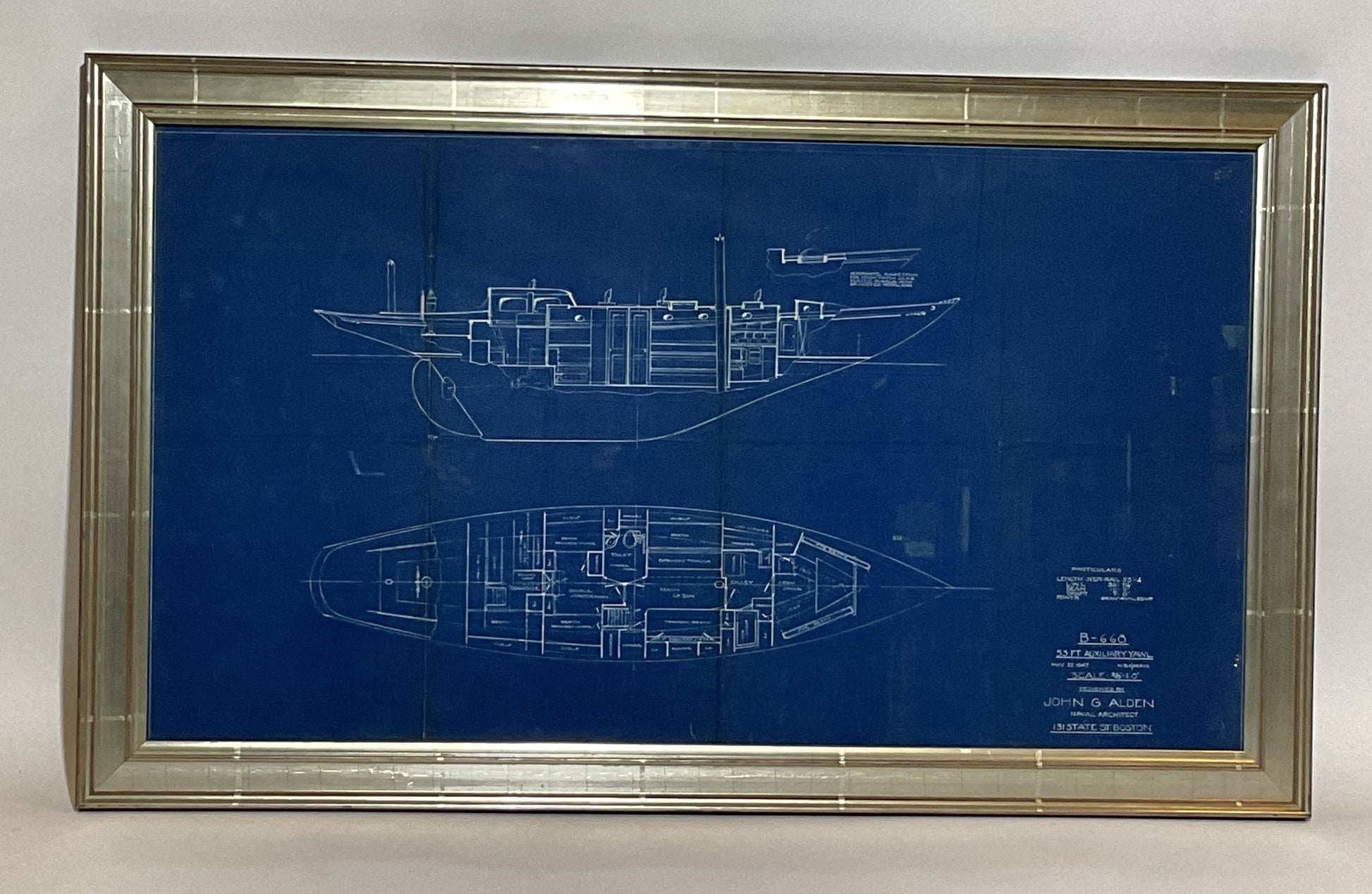

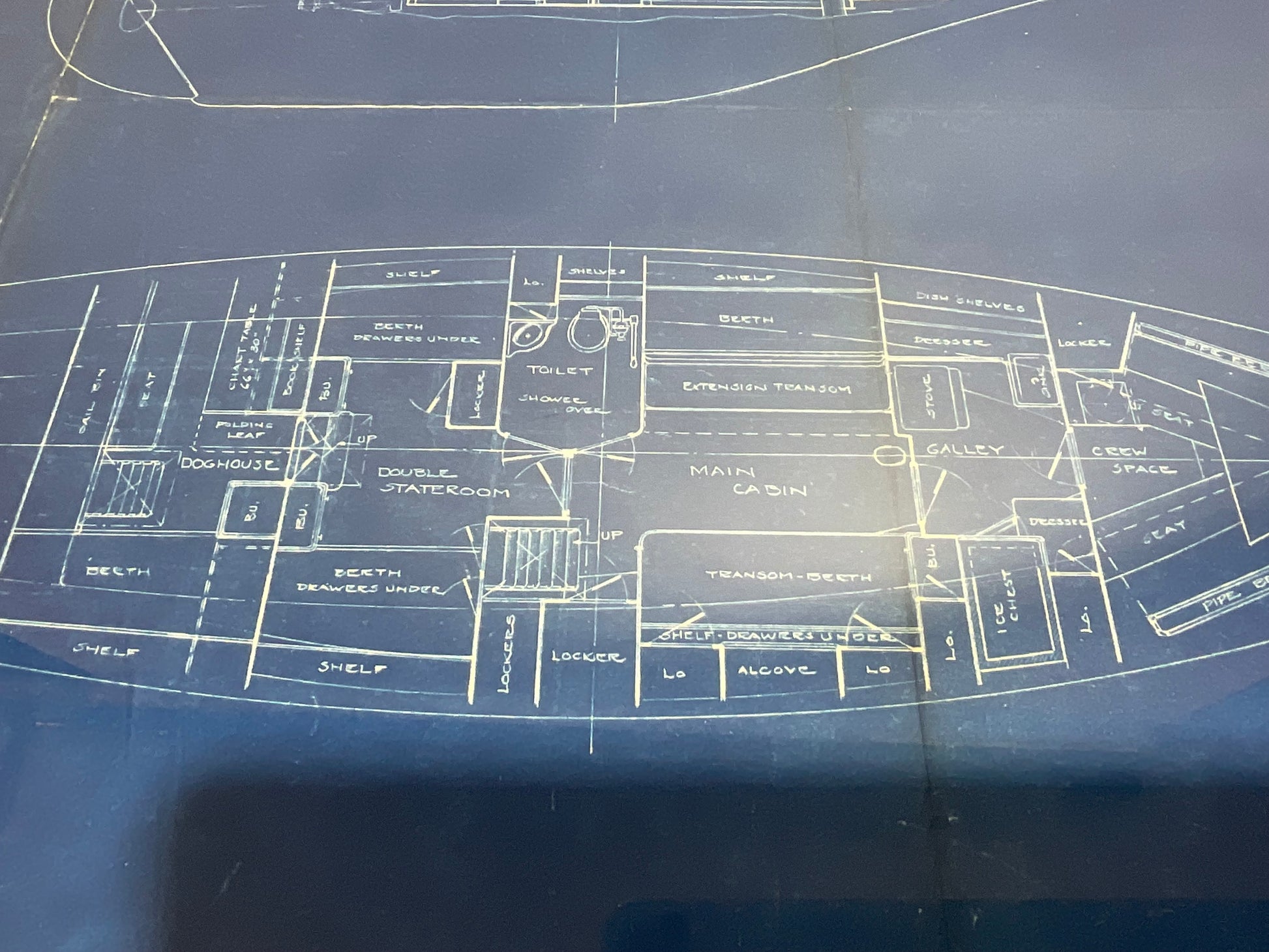

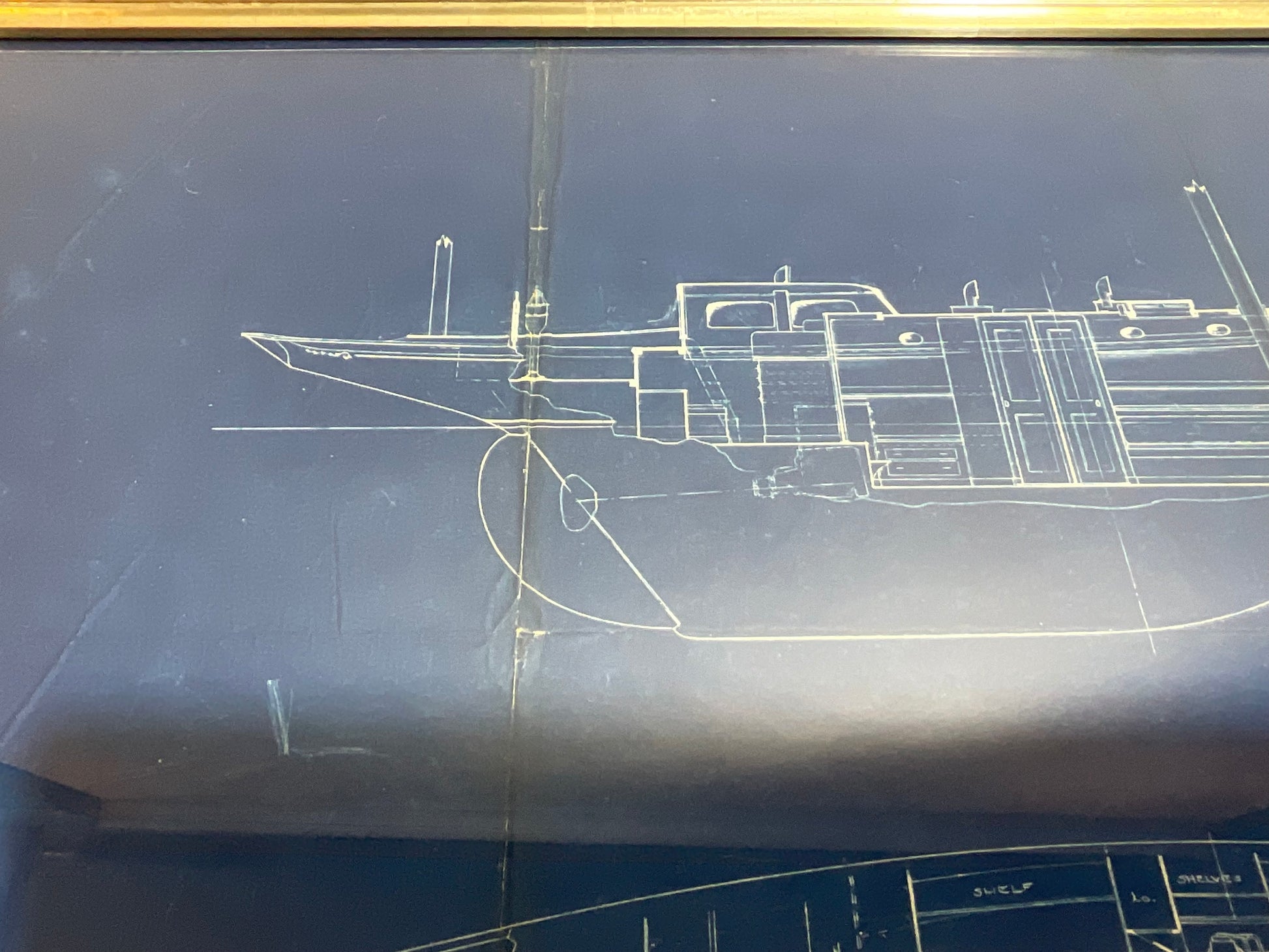

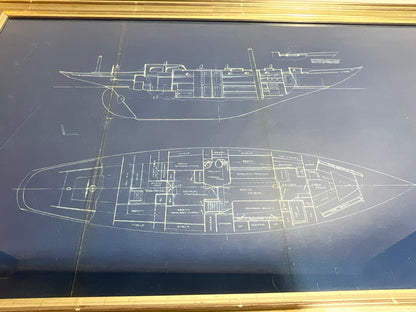

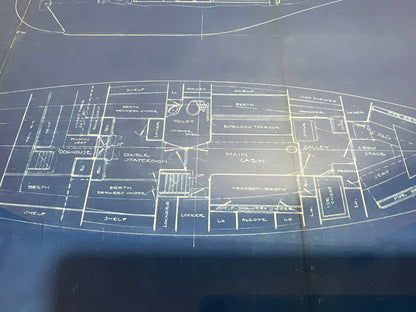

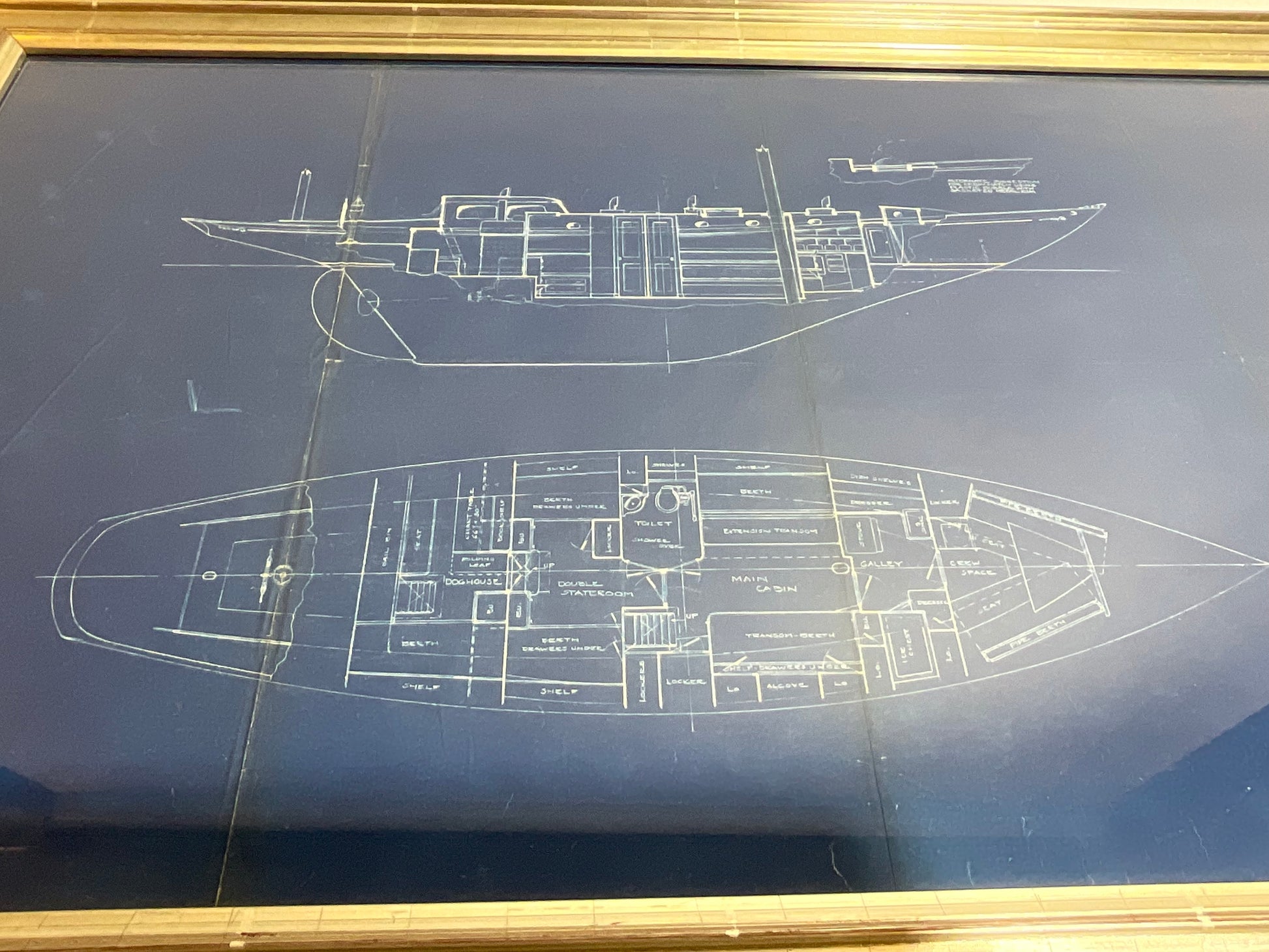

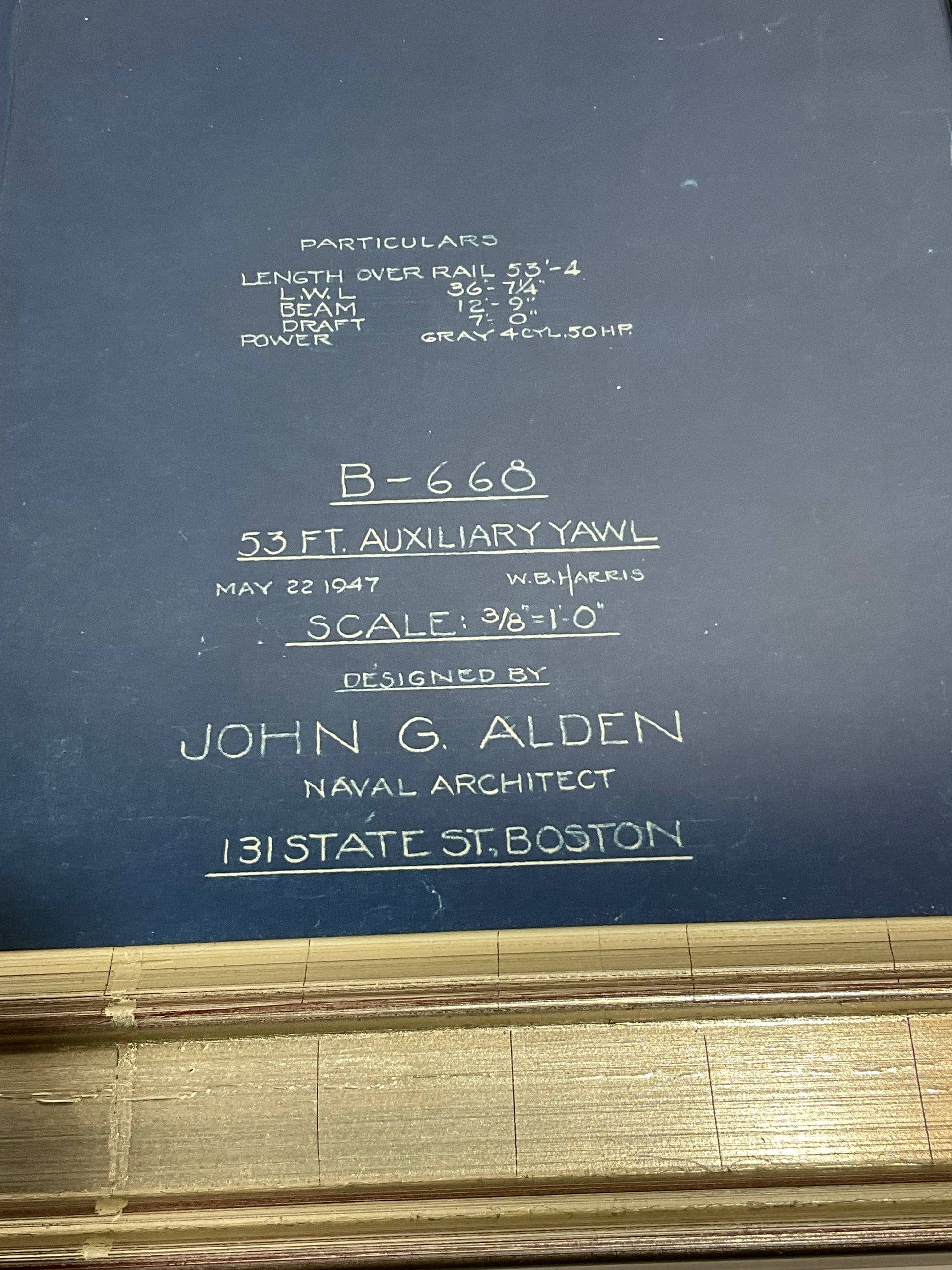

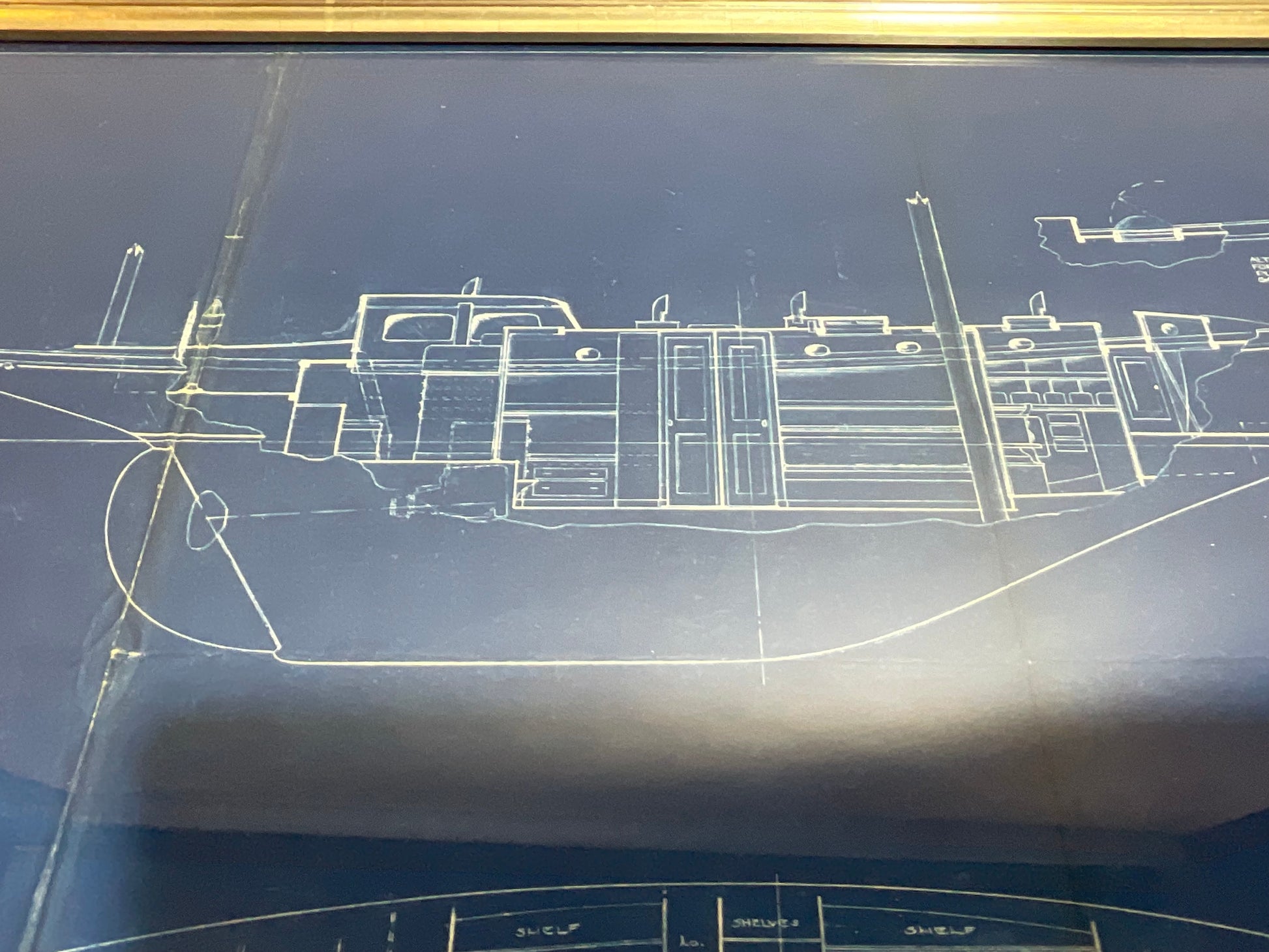

Original yachting blueprint from John G. Alden, naval architect of Boston, Massachusetts. This plan is for Design B-668, a 53-foot auxiliary yawl, dated May 22, 1947, to a scale of 3/8 inch to a foot. This plan shows the cabin layout and hull profile. The cabin layout shows cabins, crew space, berths, doghouse, toilet, galley, stove, etc. A very interesting blueprint. Length of vessel 36 feet 7 inches.

Weight:
Overall Dimensions:
Made:    America
Material:    Paper
Date:    1947
