Yacht Blueprint of an Auxiliary Schooner Yacht.

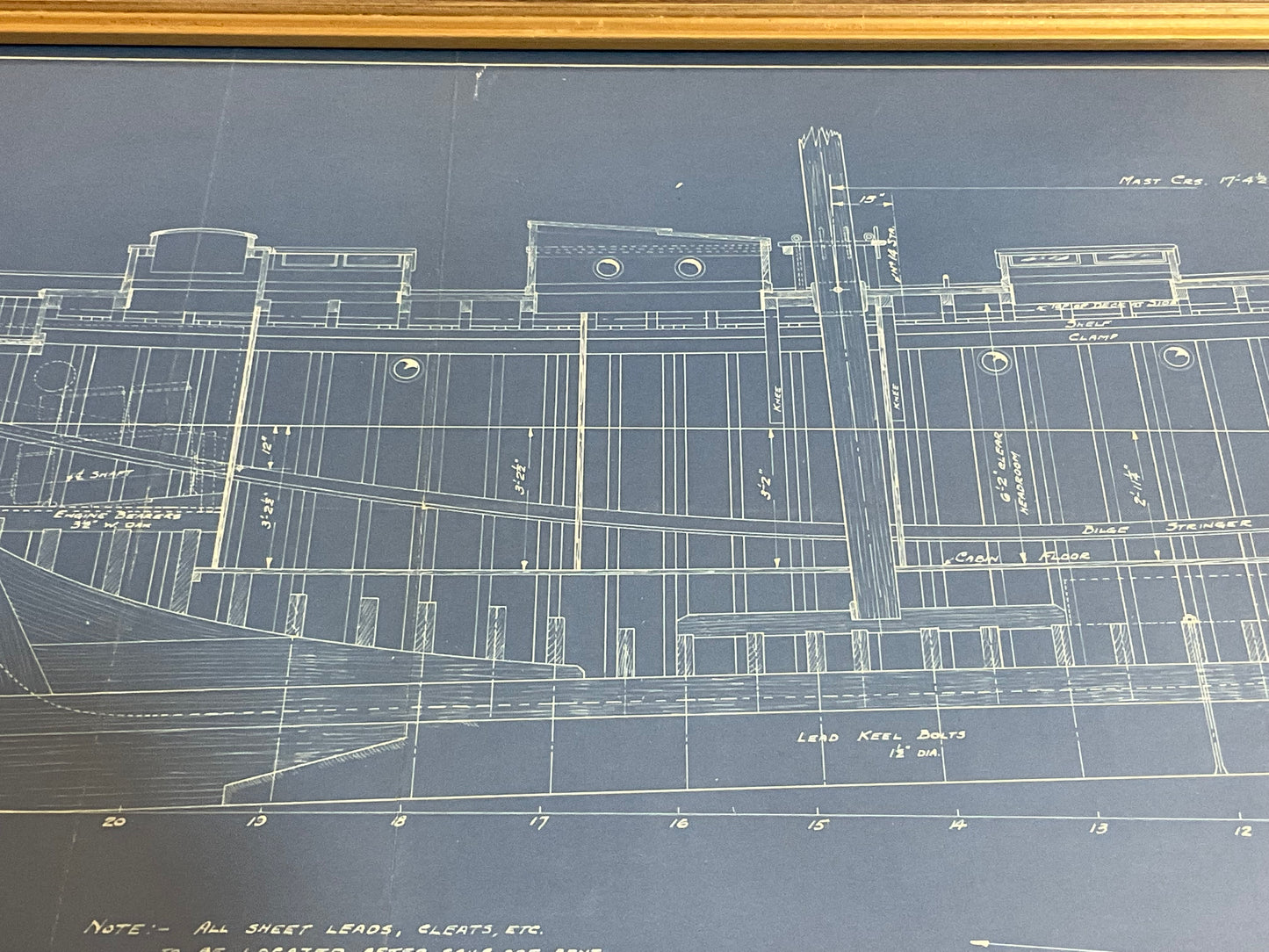

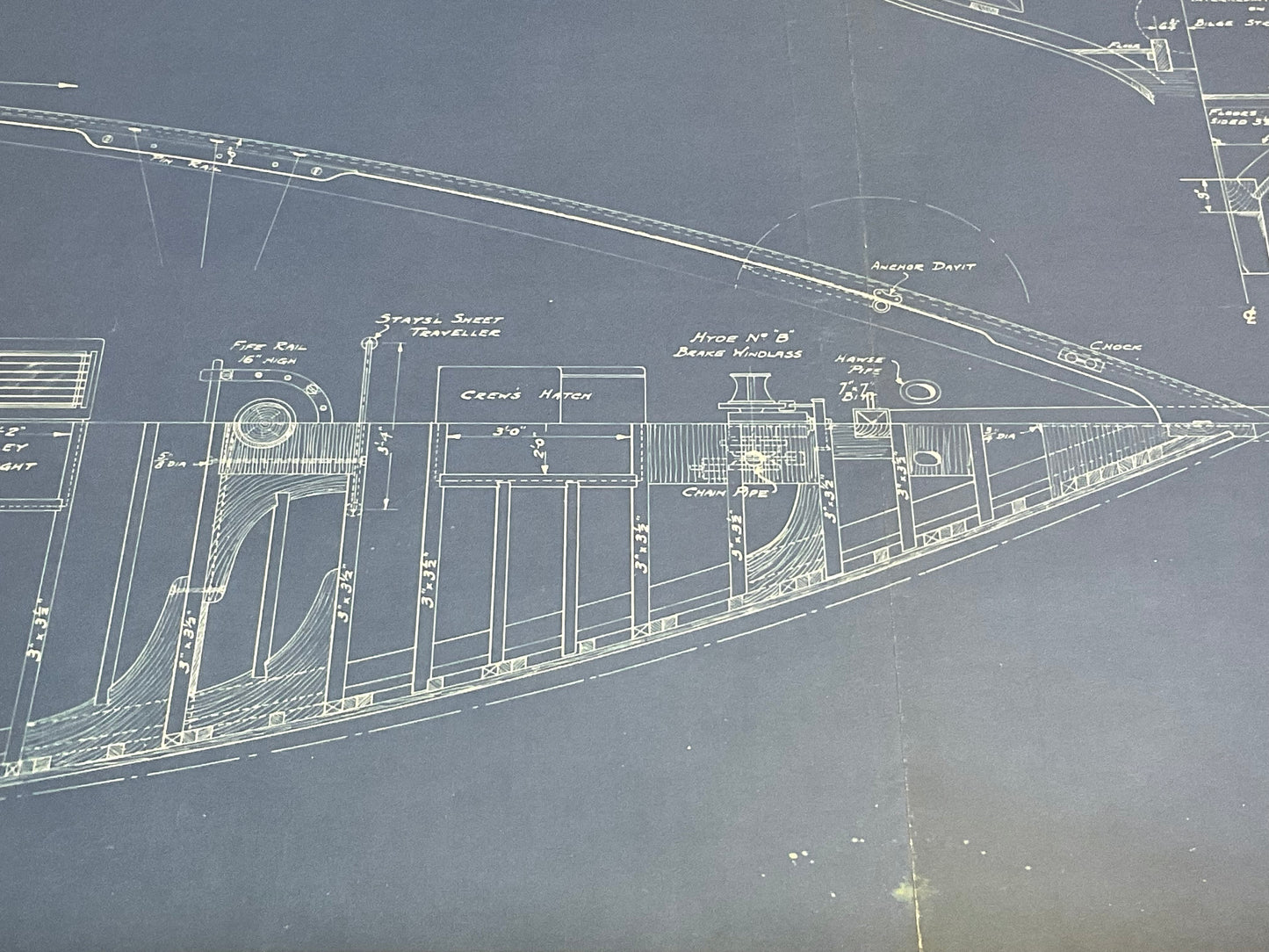

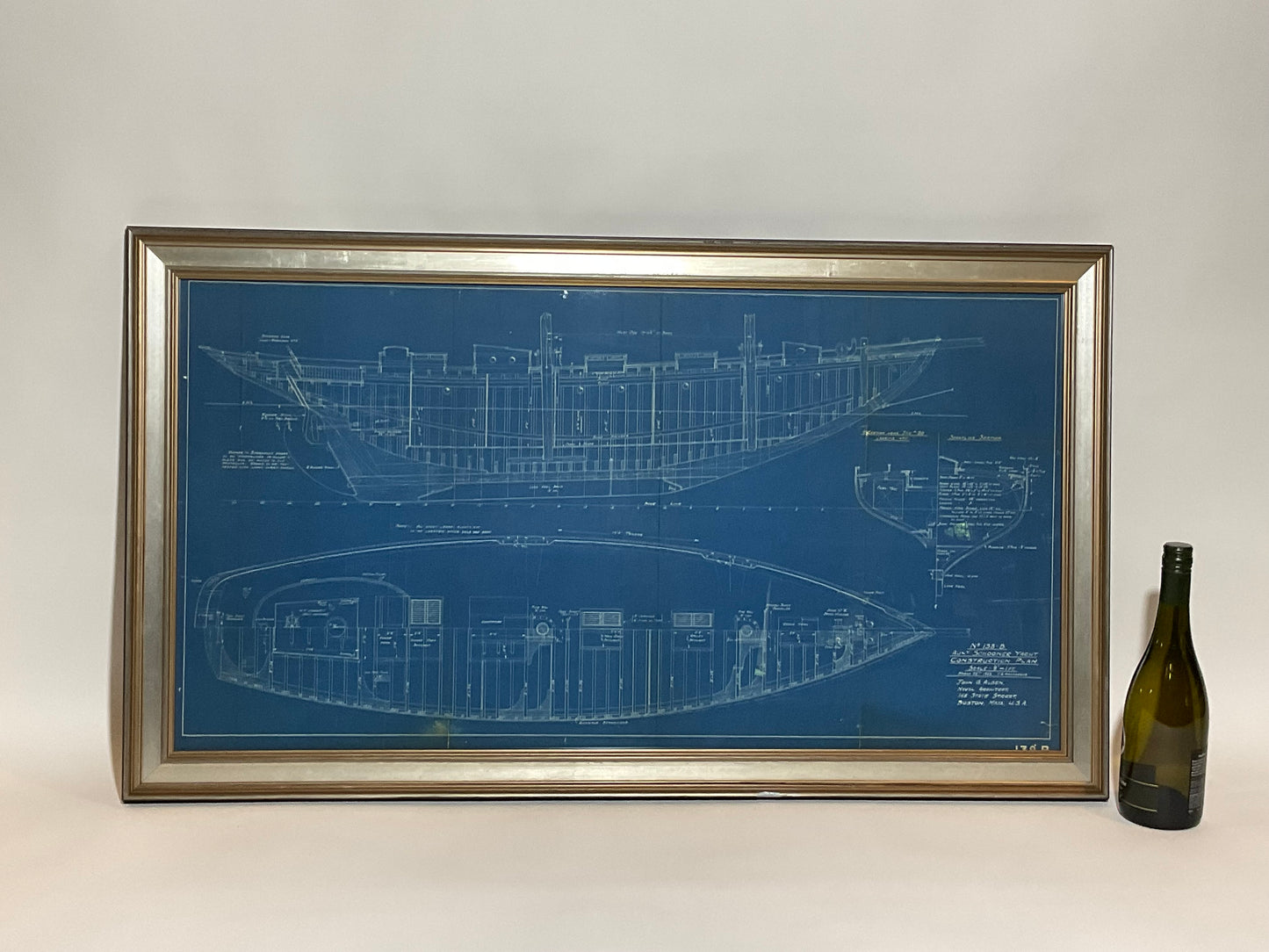

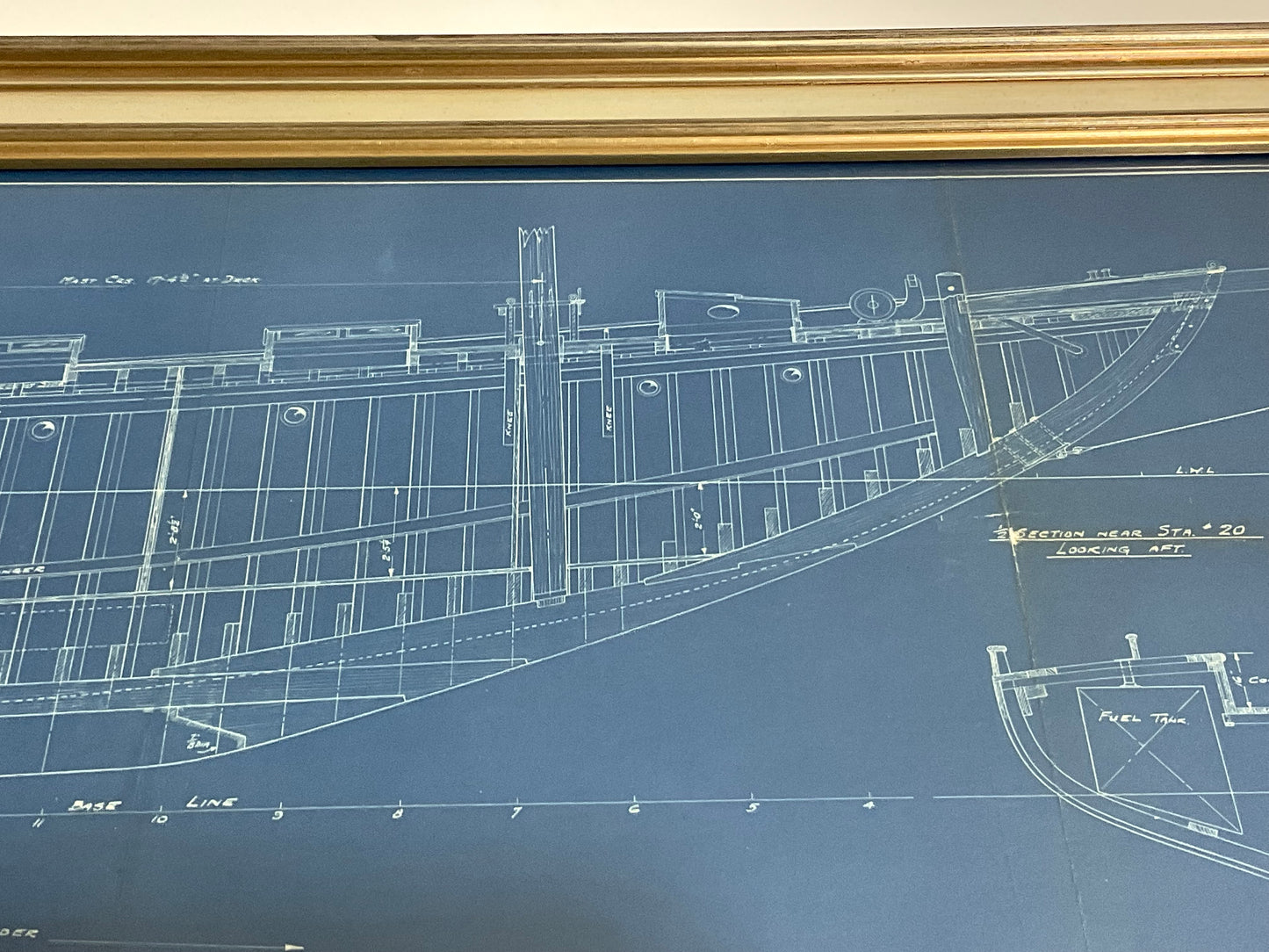

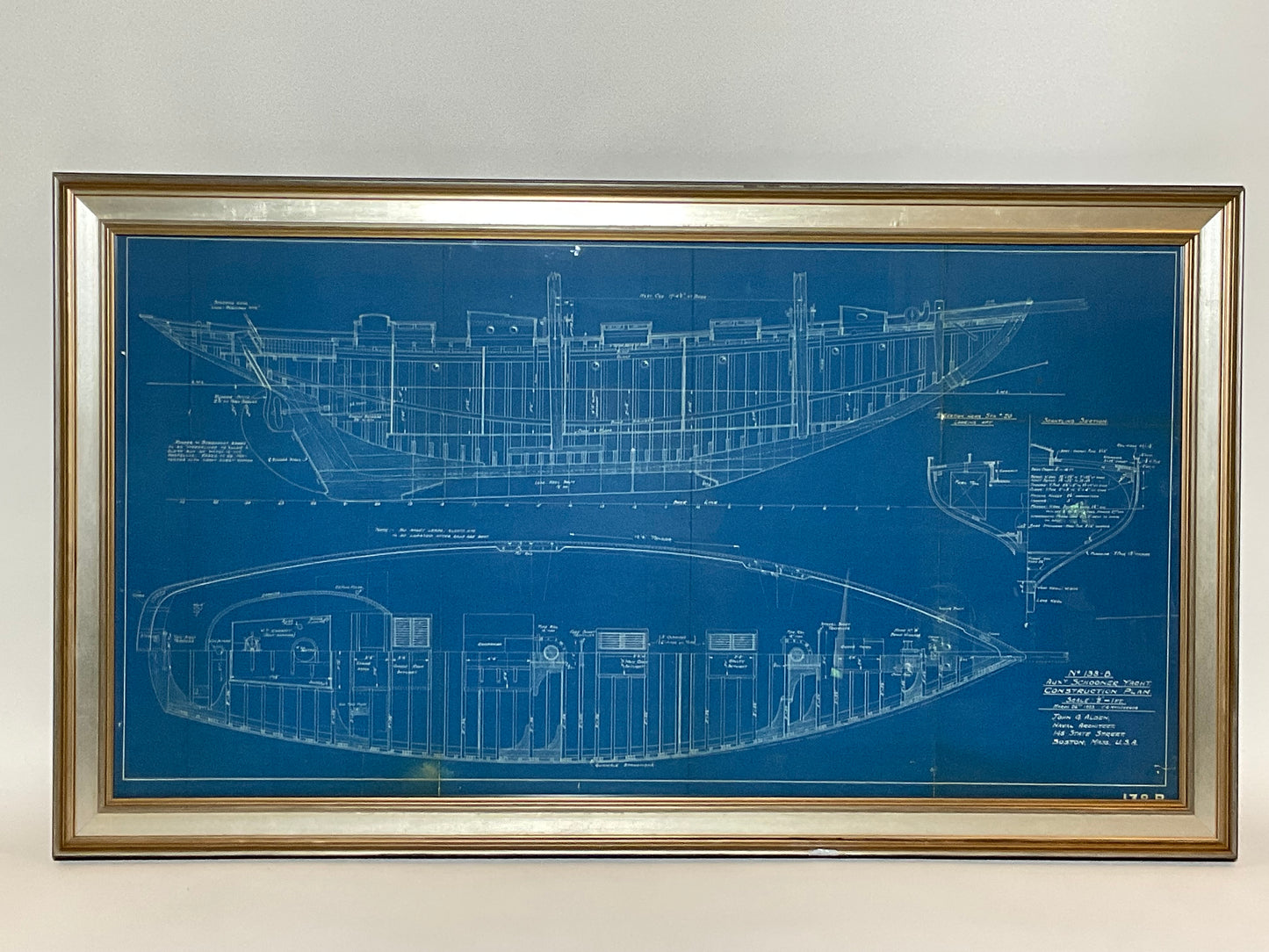

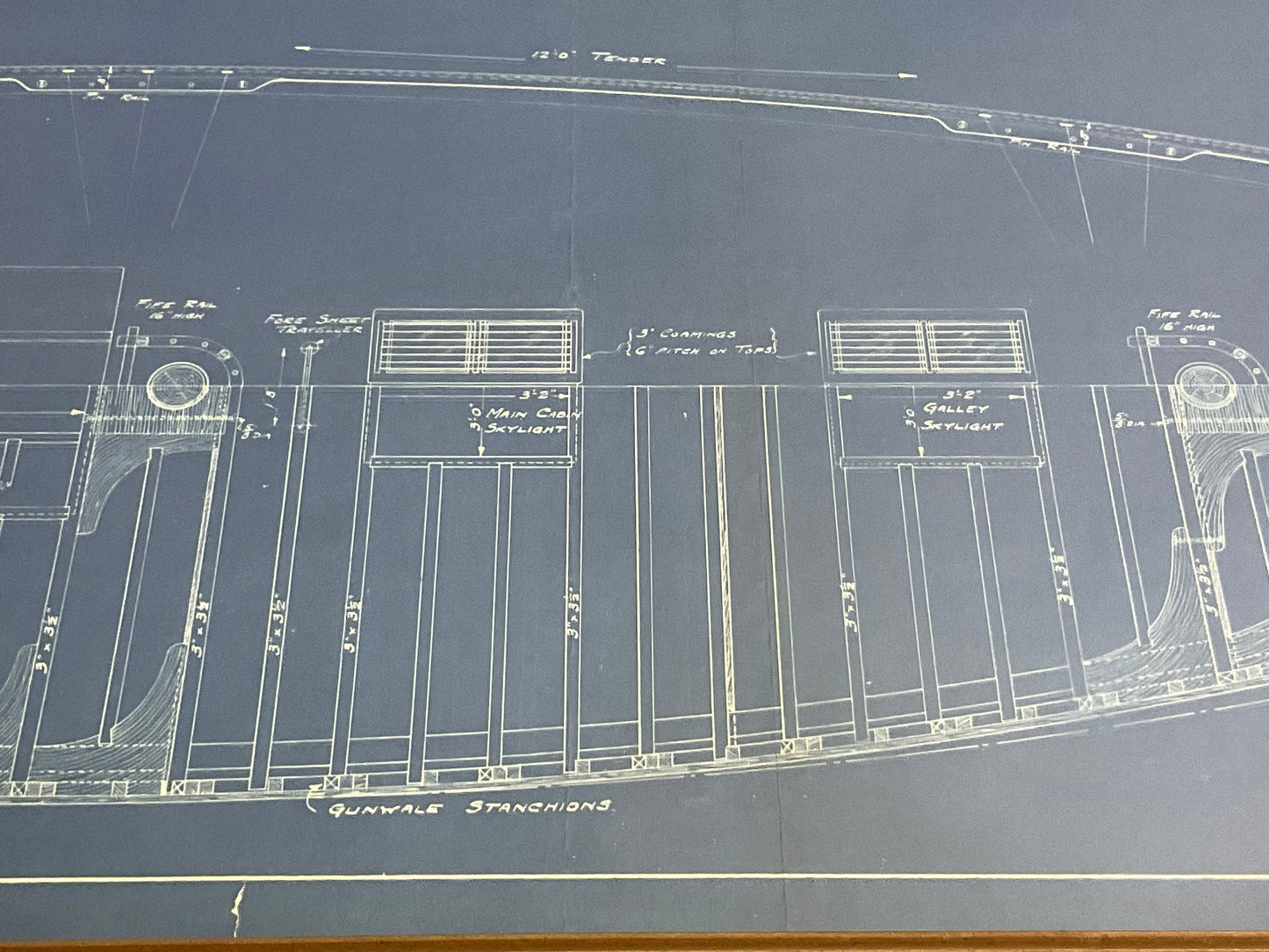

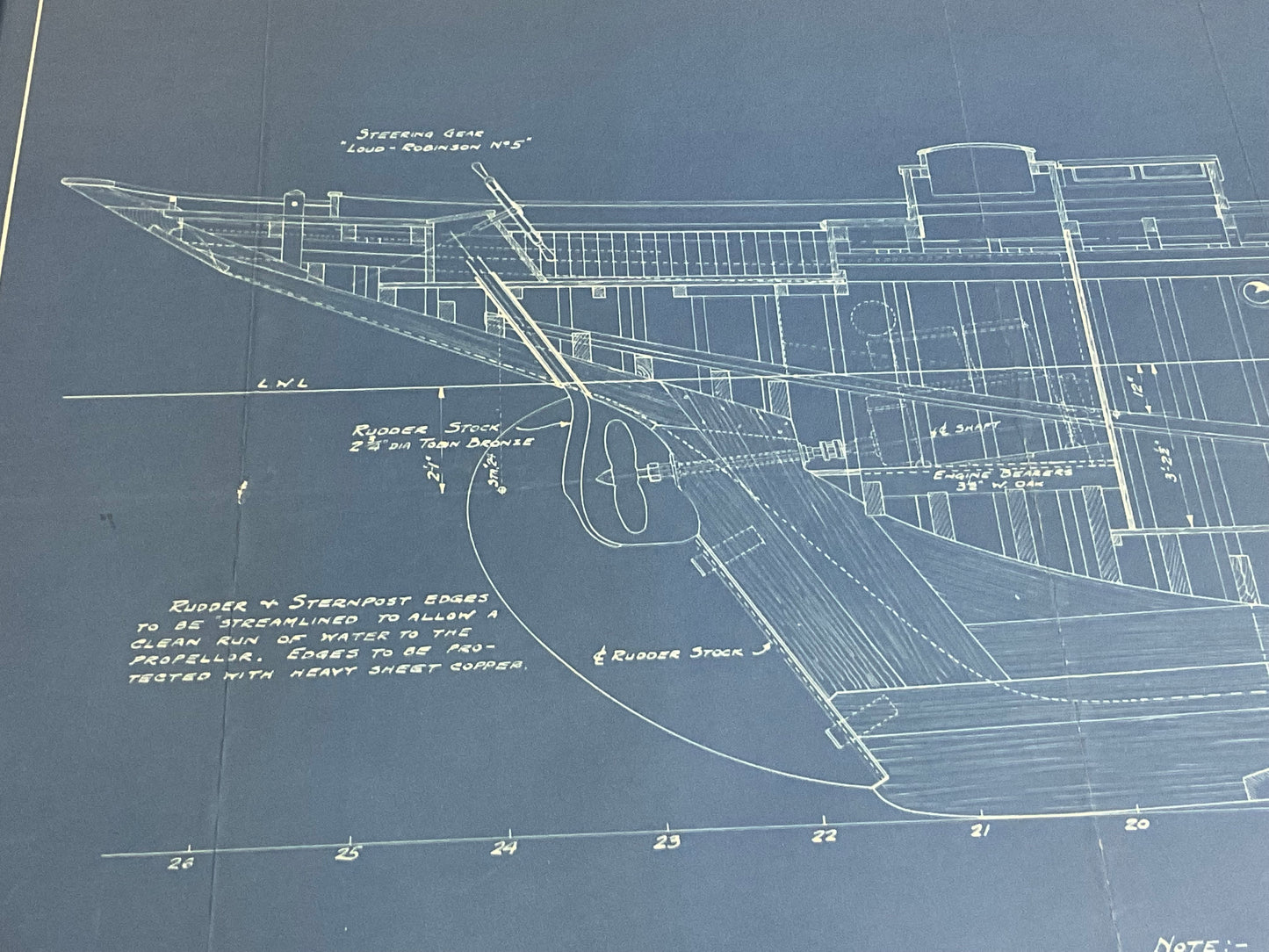

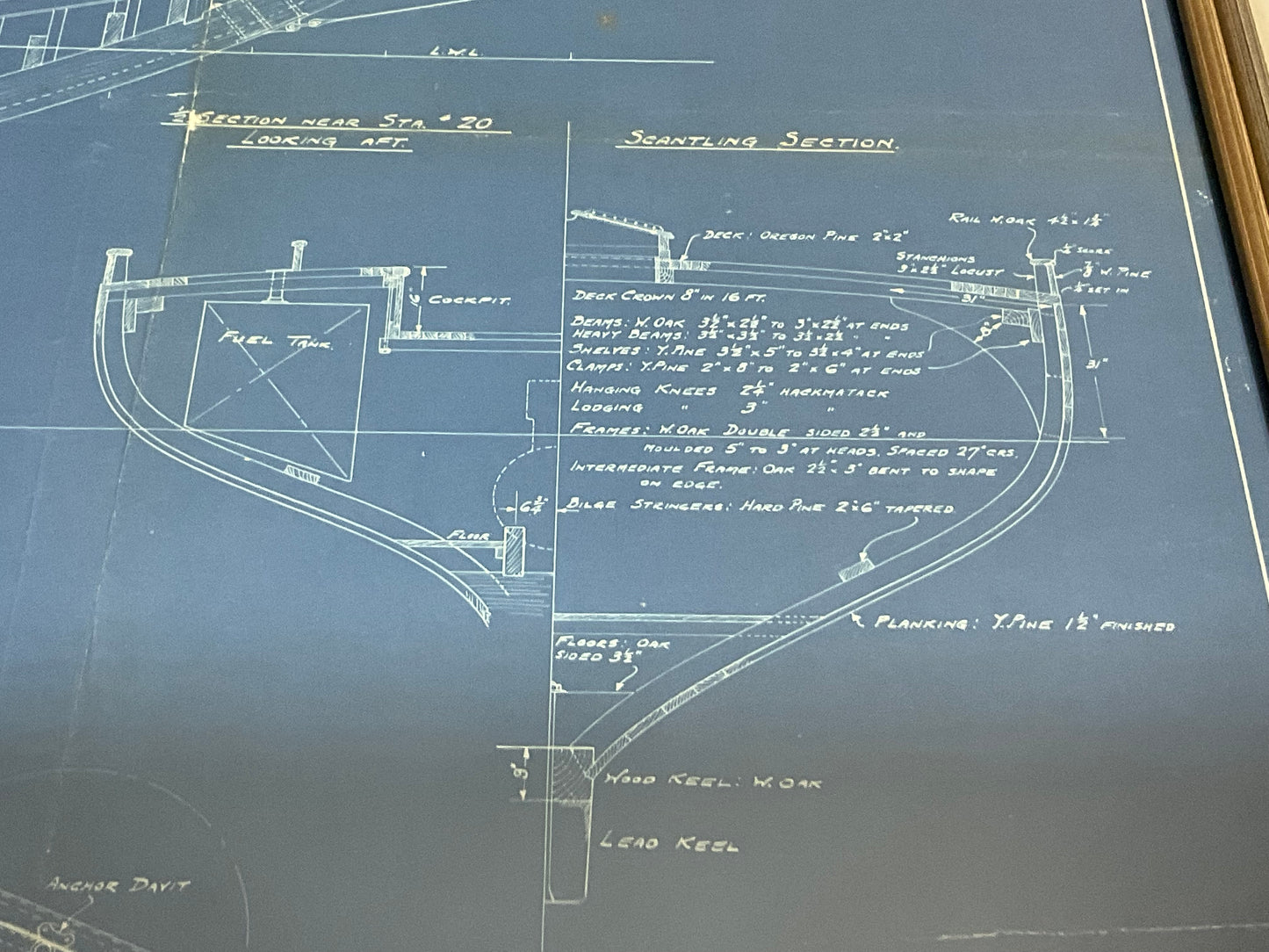

Yacht blueprint showing plan for an auxiliary schooner yacht. This is the construction plan for John Alden Design 138B. This blueprint shows hull and deck frames, keel, skylights, masts, cockpit, rudder, prop, etc.. The drawing is to a scale of one half inch equals one foot, dated March 26, 1923 signed C.G. MacGregor. John G. Alden Naval Architect, 148 State St, Boston MA. USA.

Weight: 10 lbs
Overall Dimensions: 24"H x 41"W
Made: American
Material: Paper
Date: 1923
