Yacht Blueprint of "Gurnet," a Fifty-Foot Ketch – Spectacular Graphics

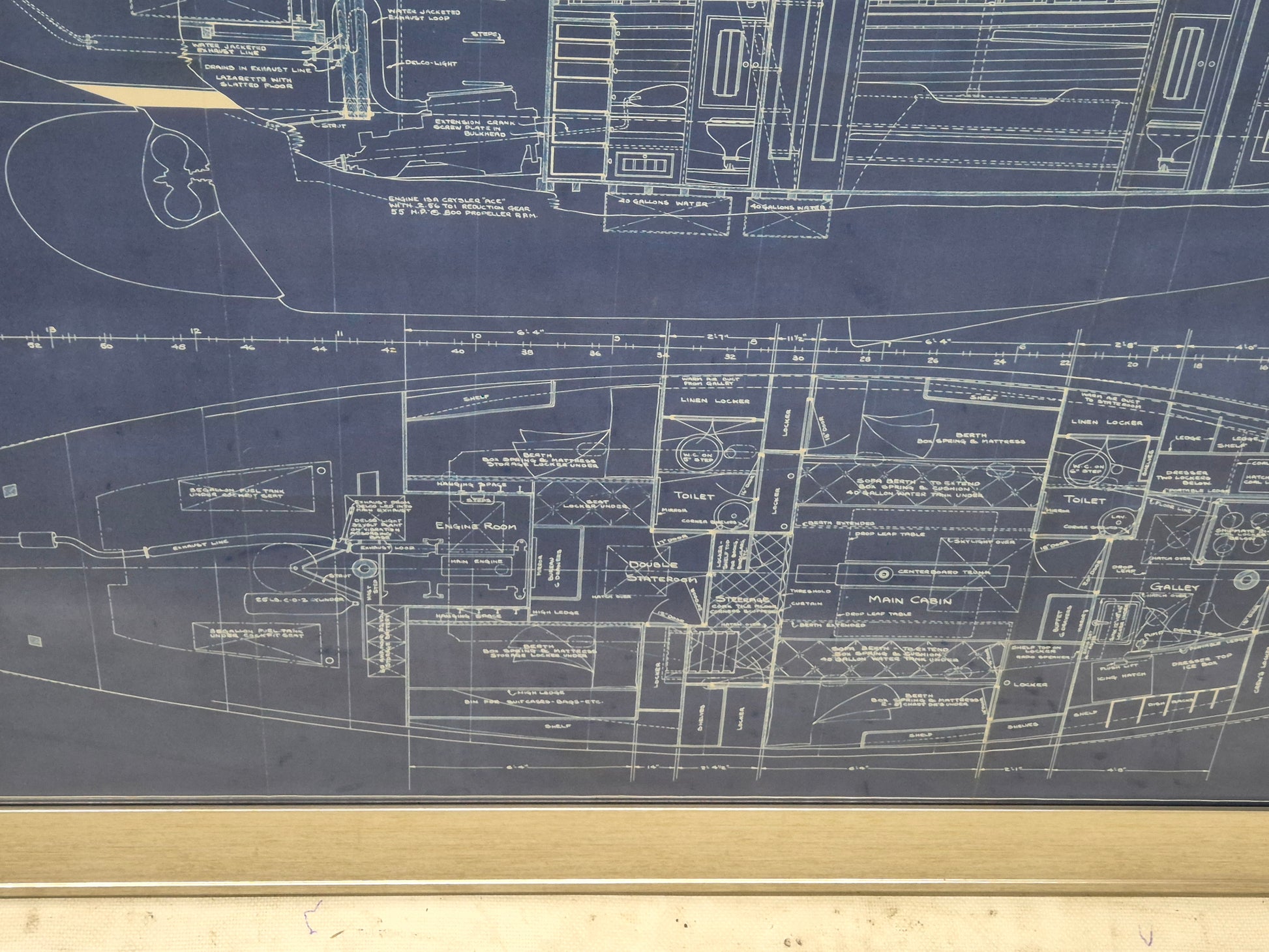

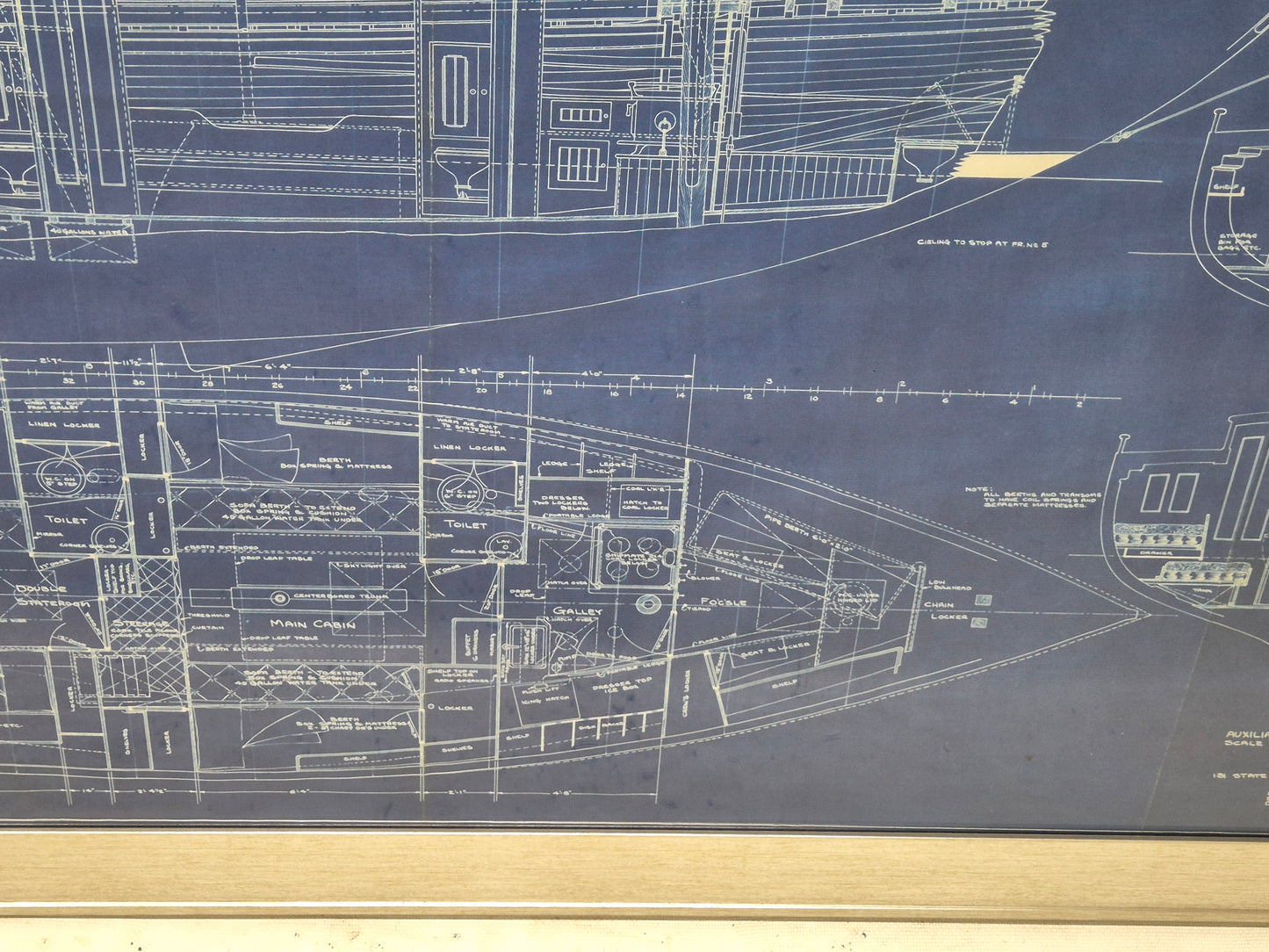

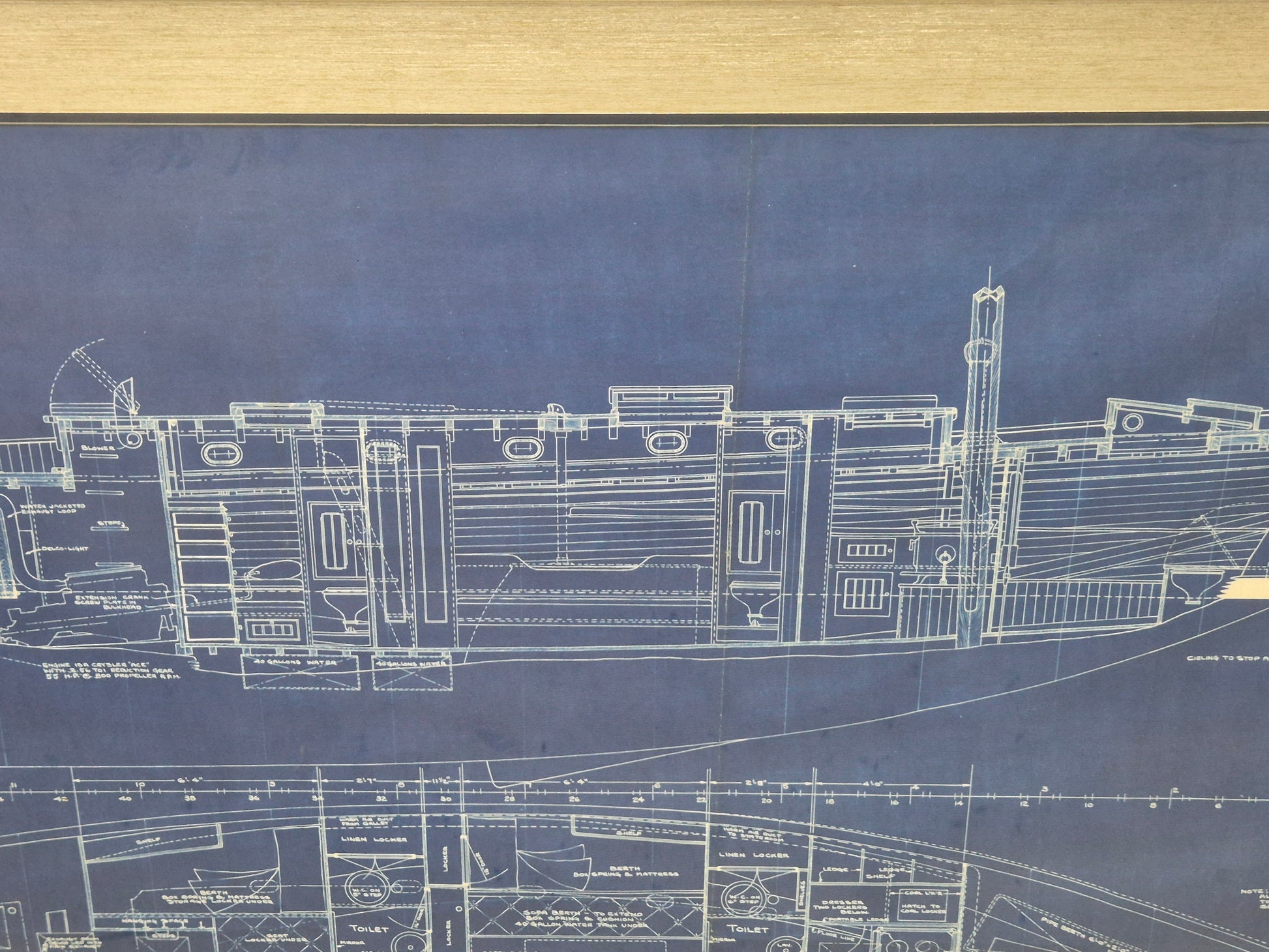

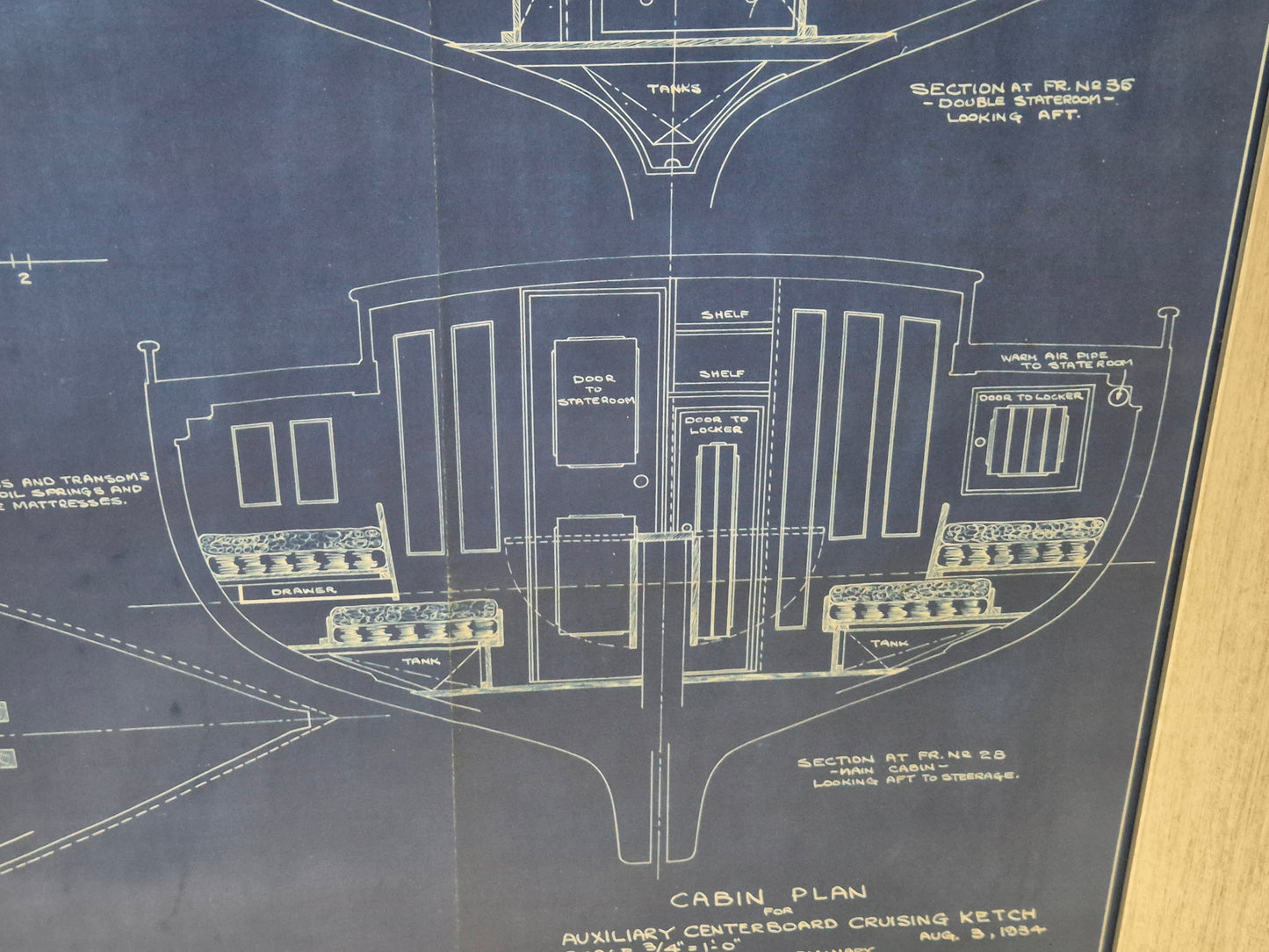

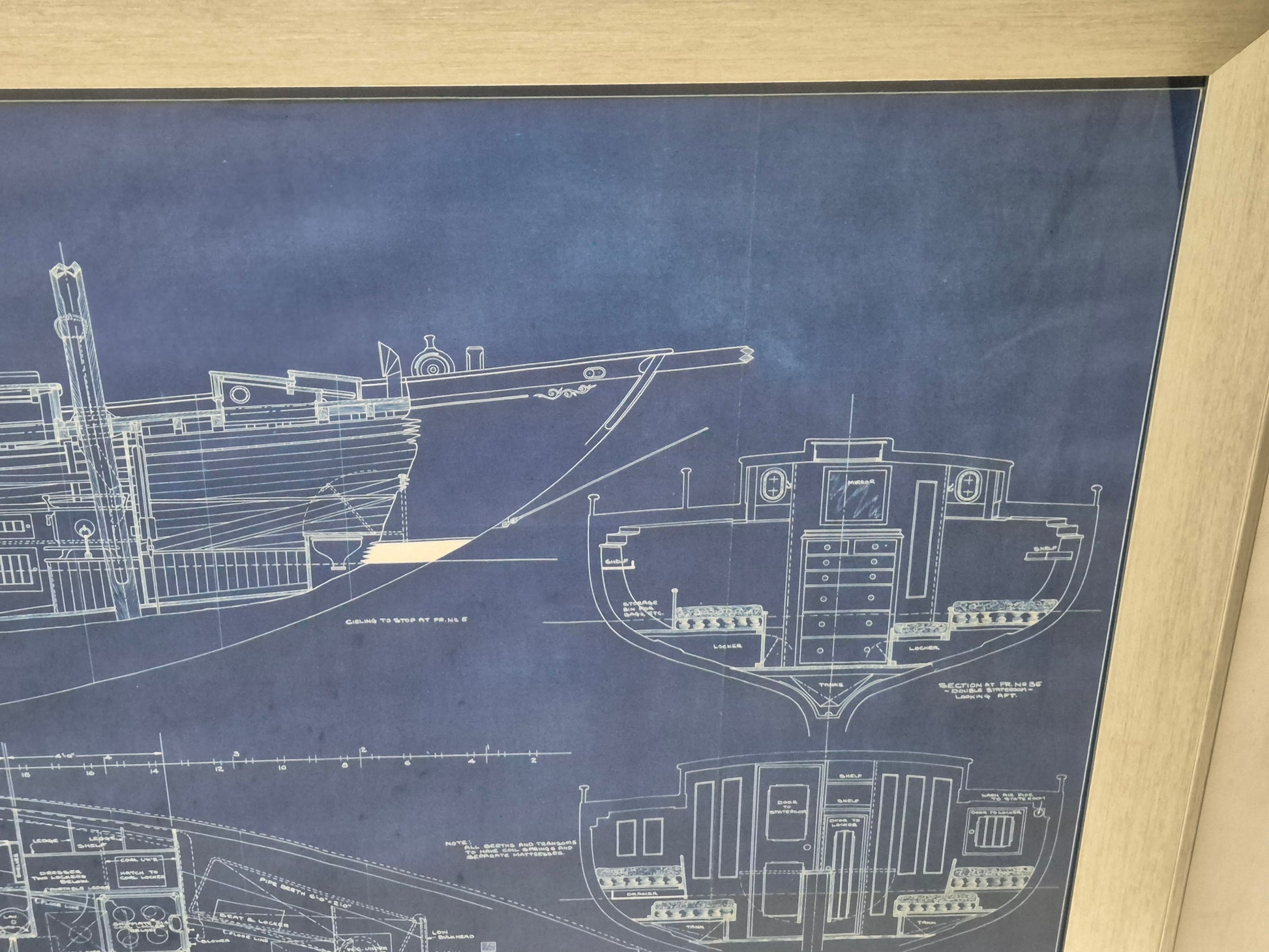

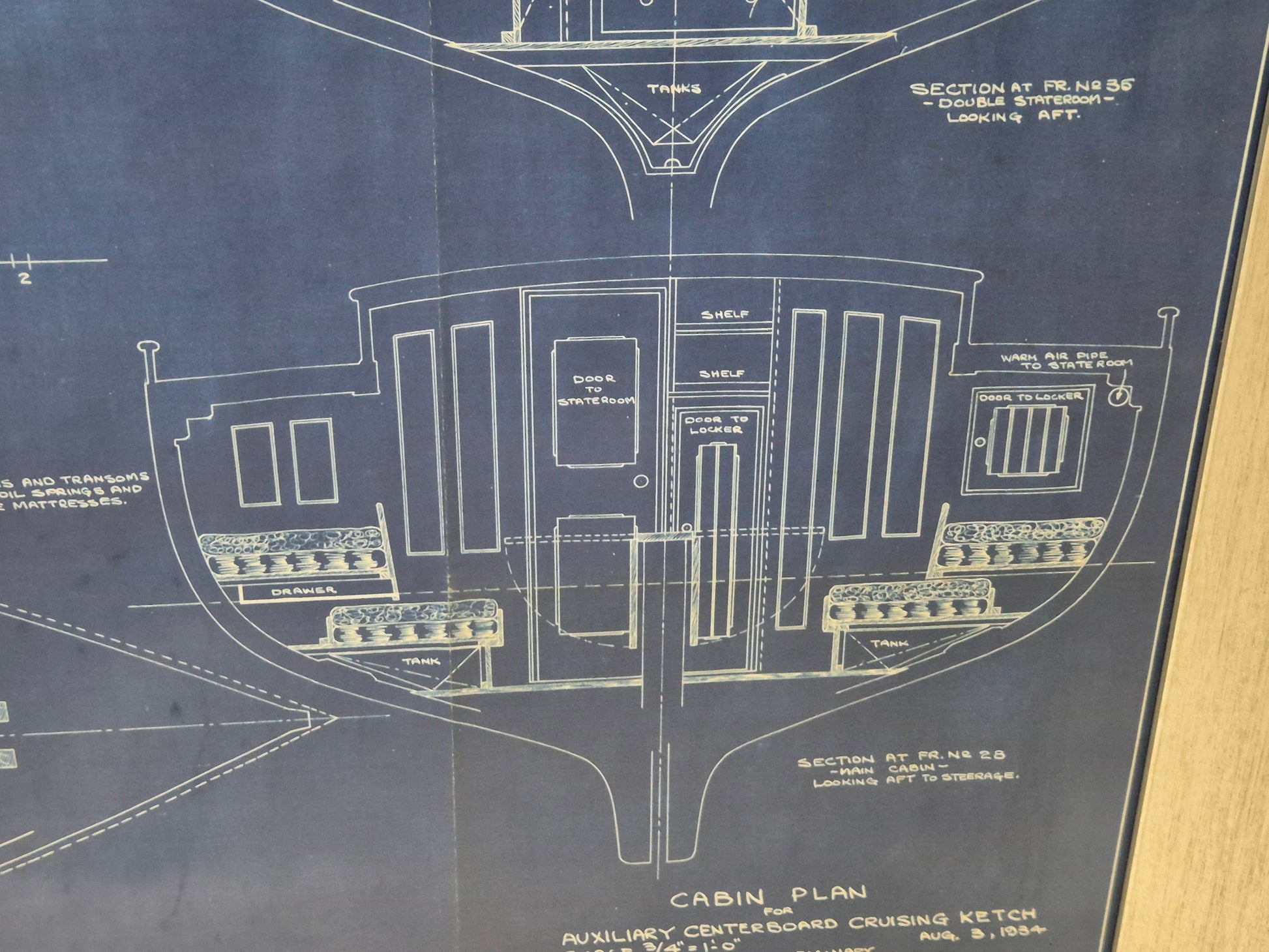

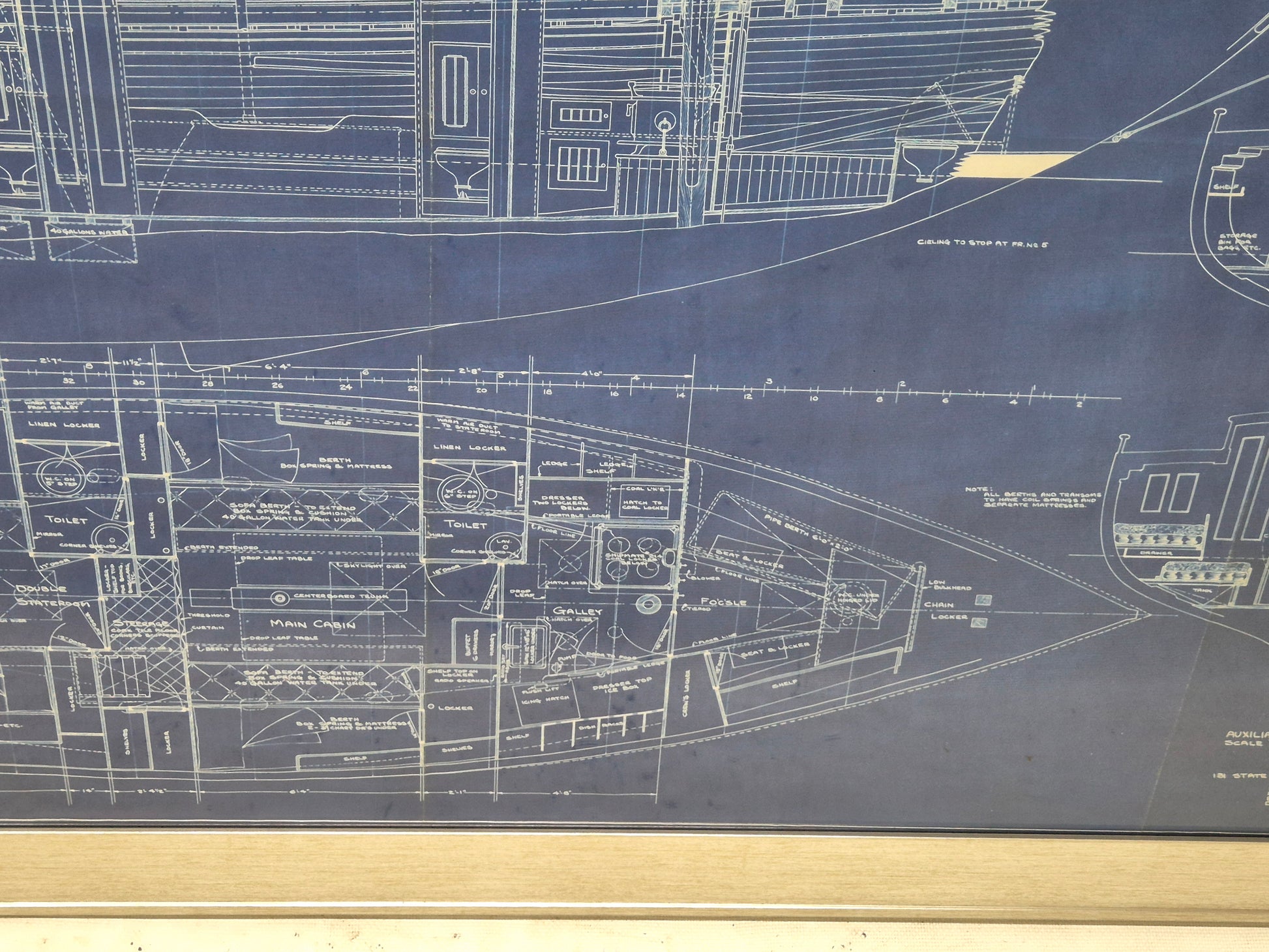

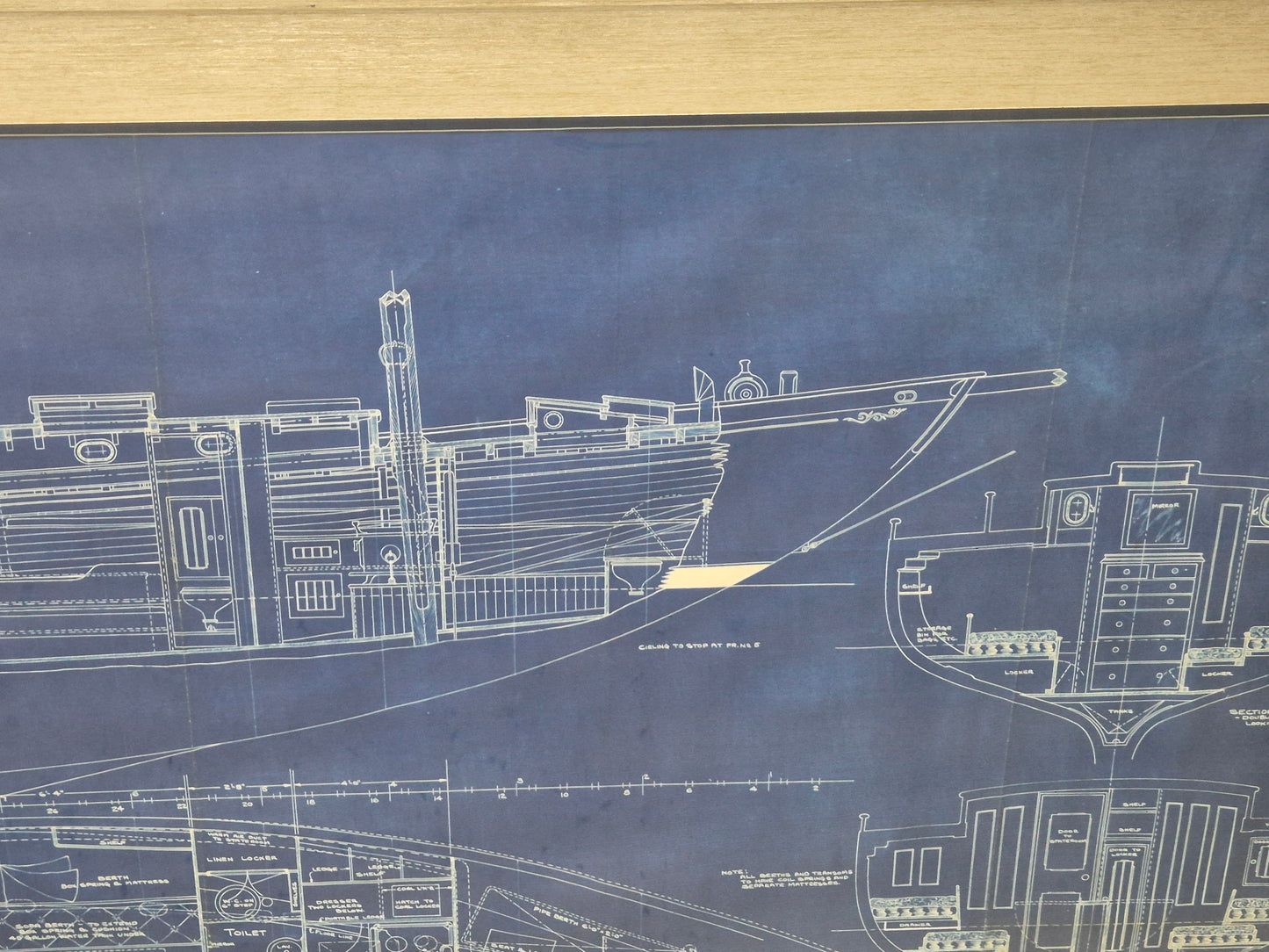

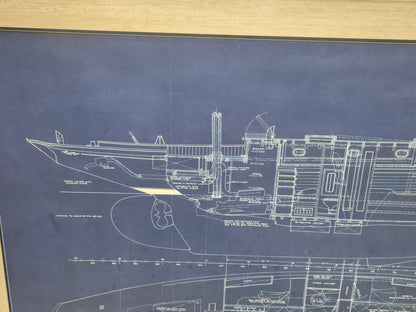

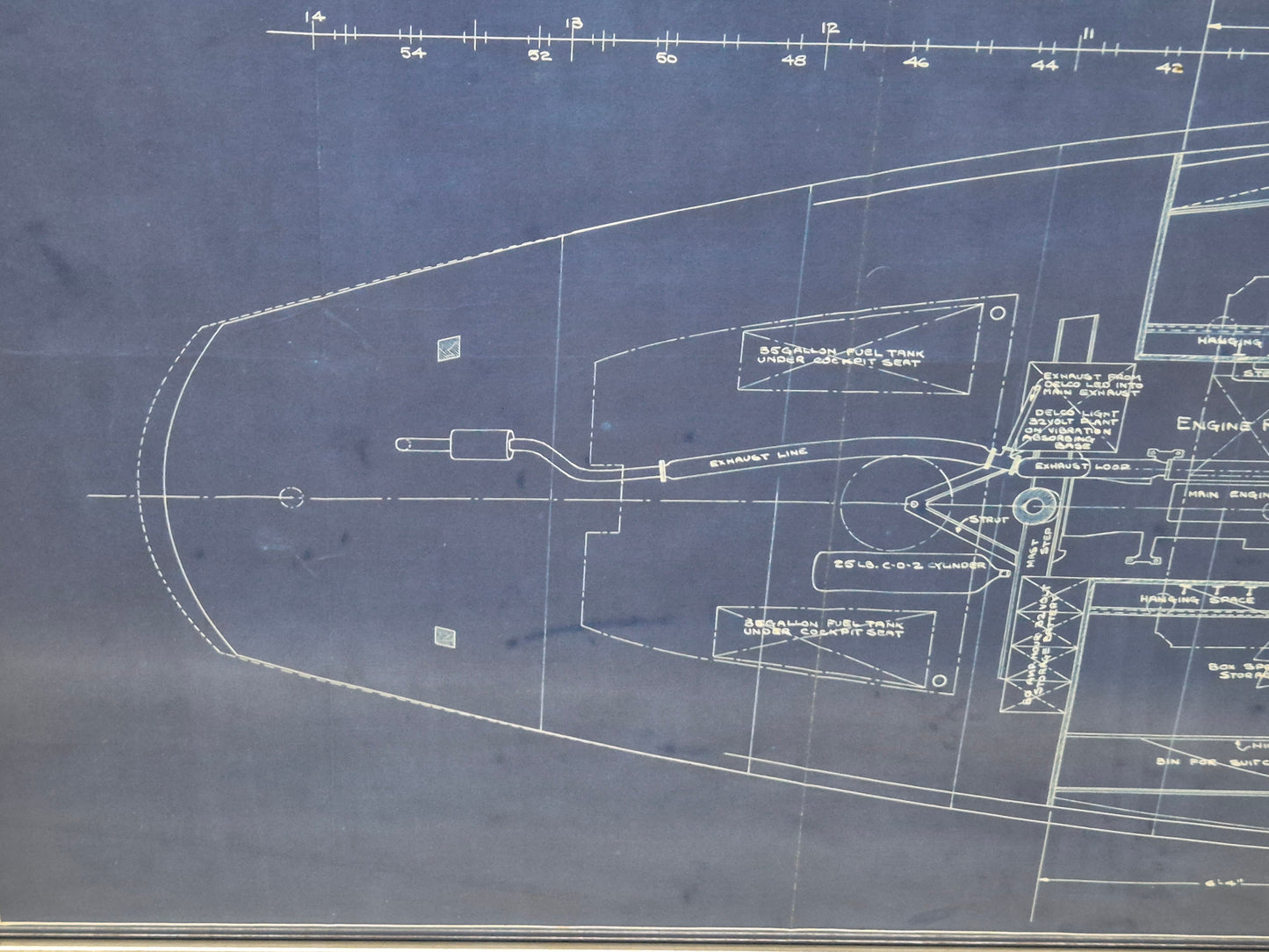

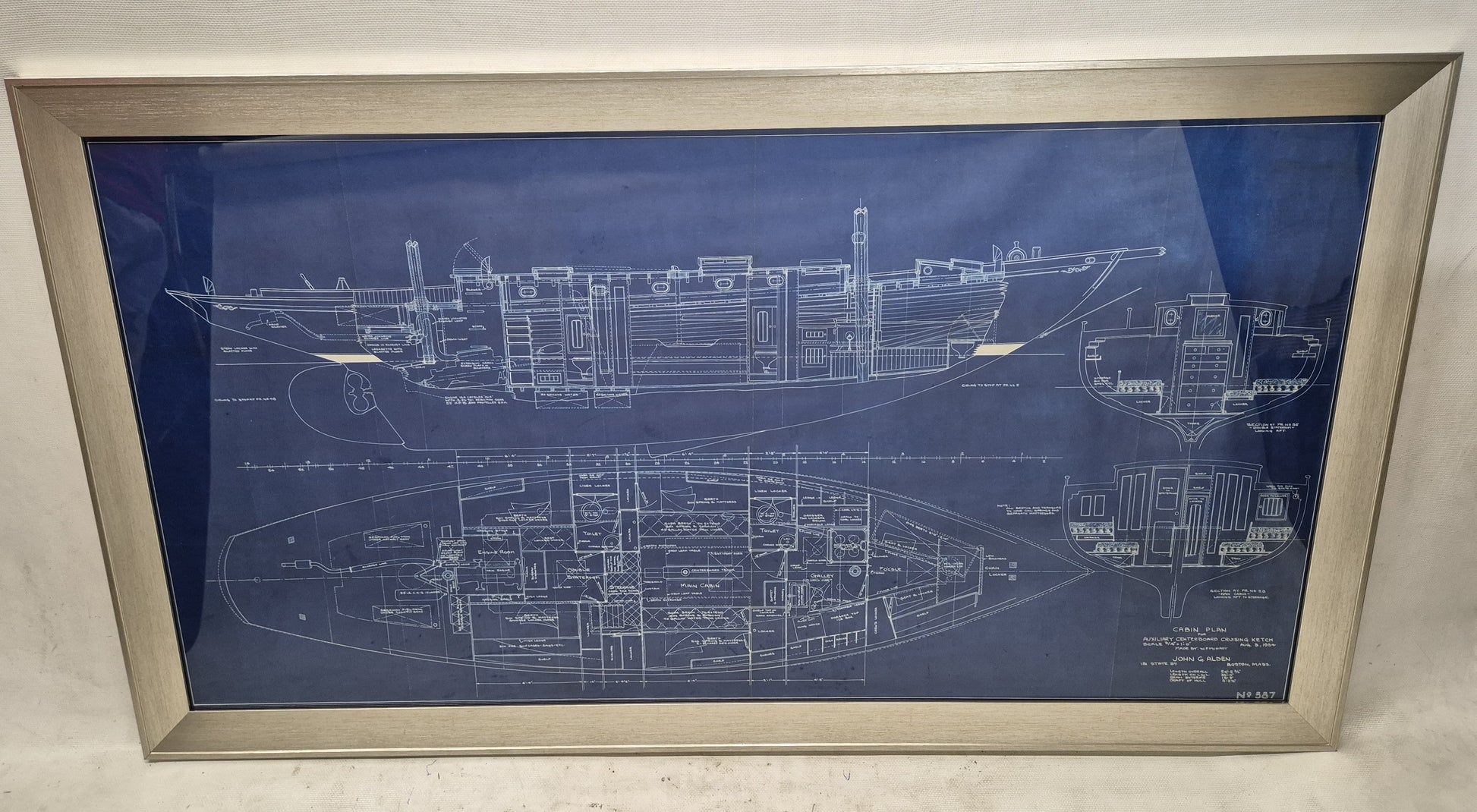

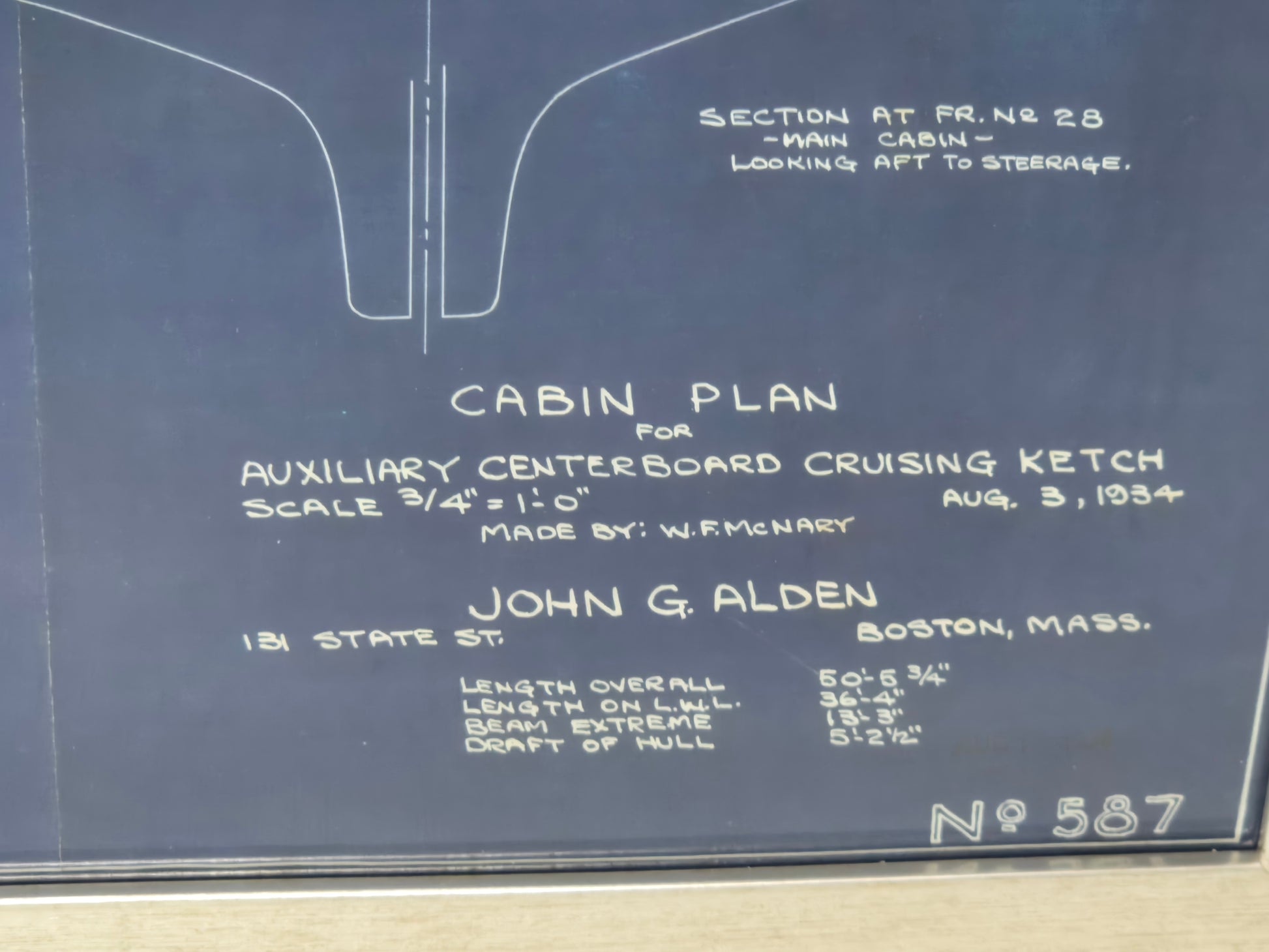

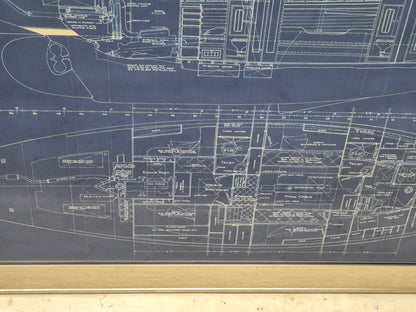

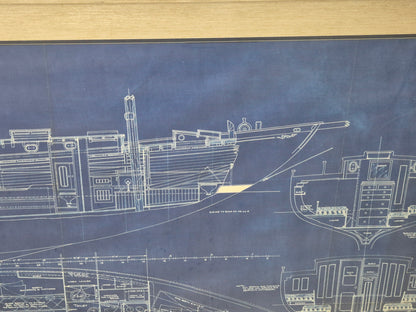

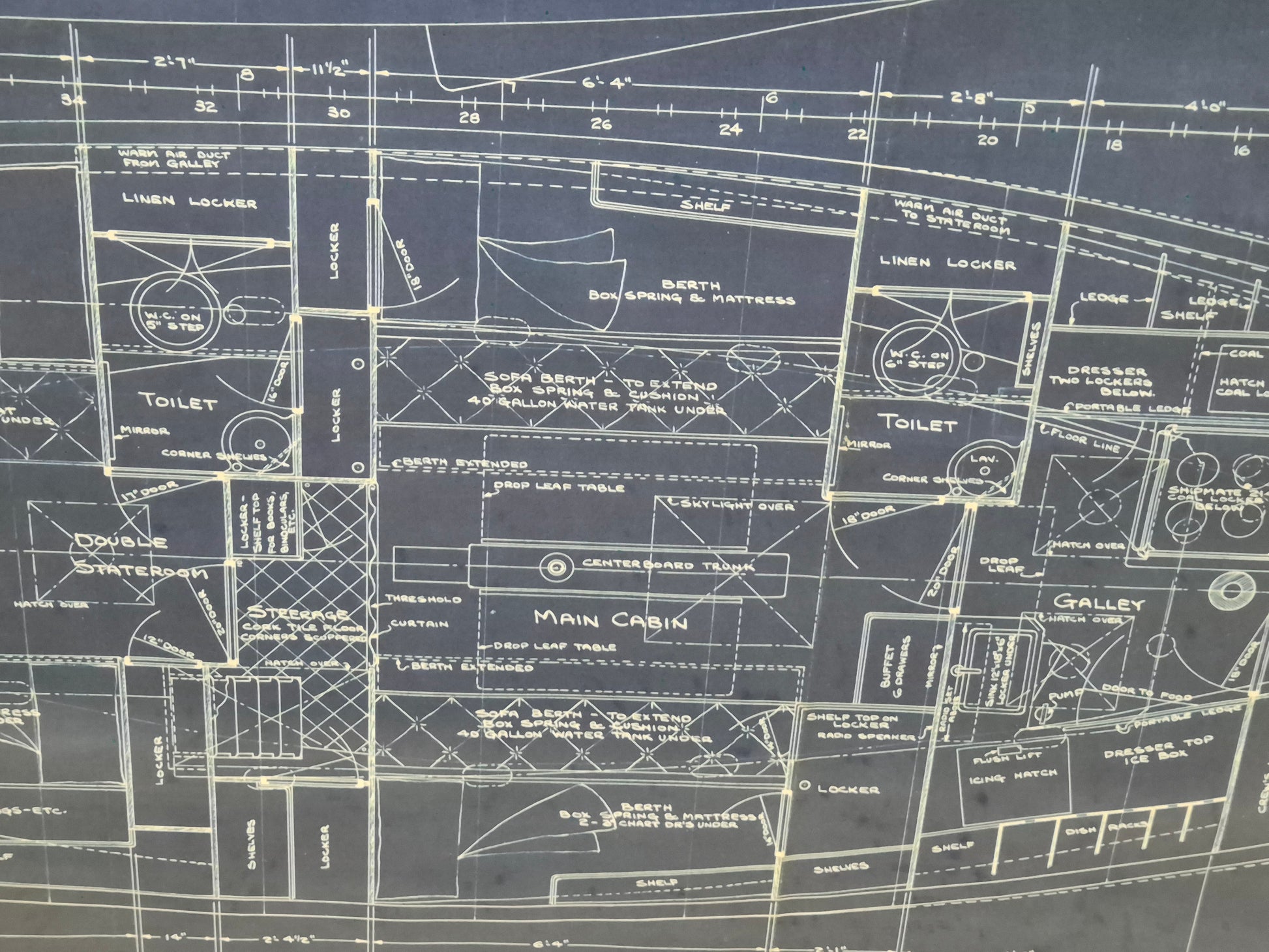

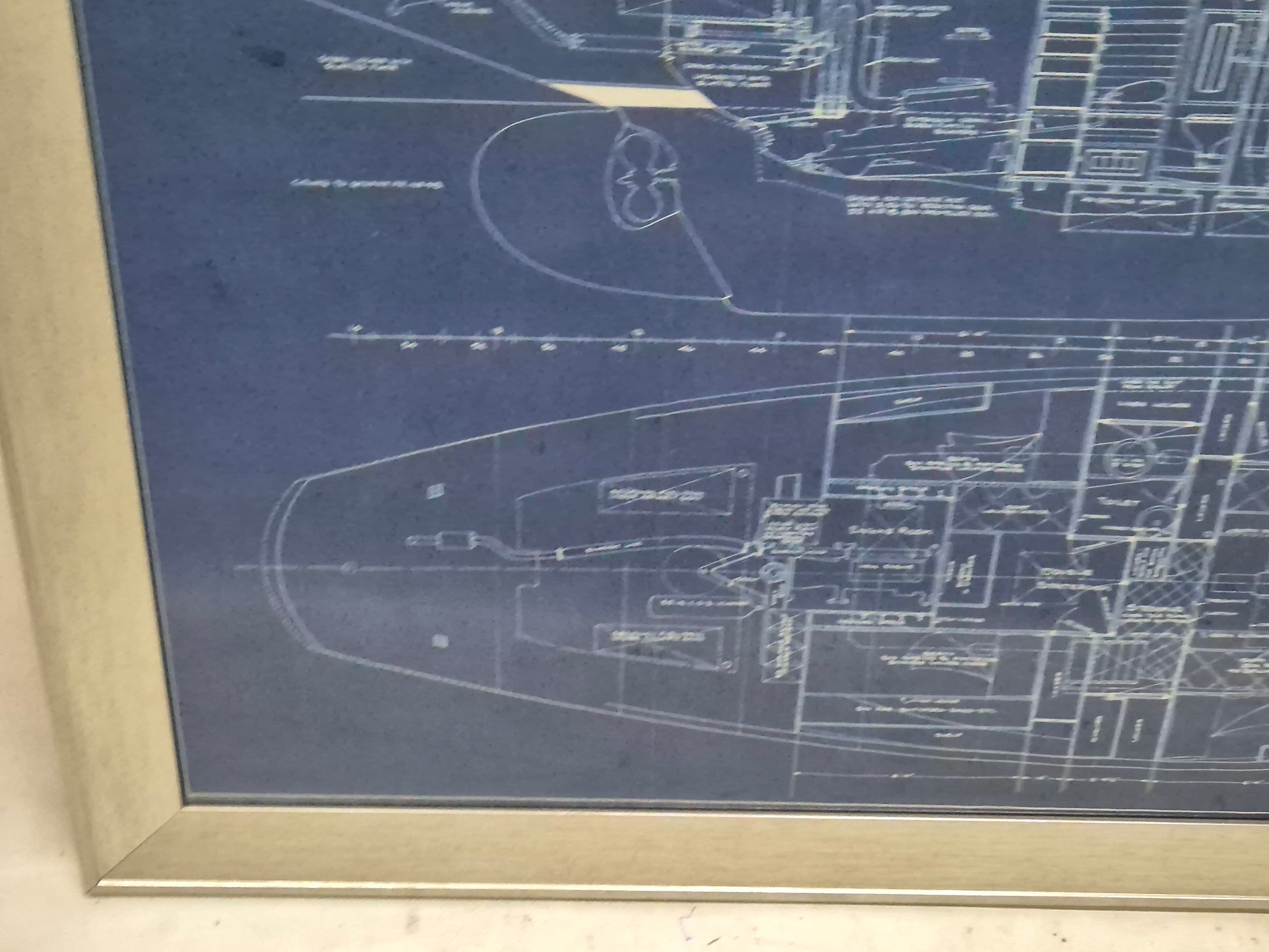

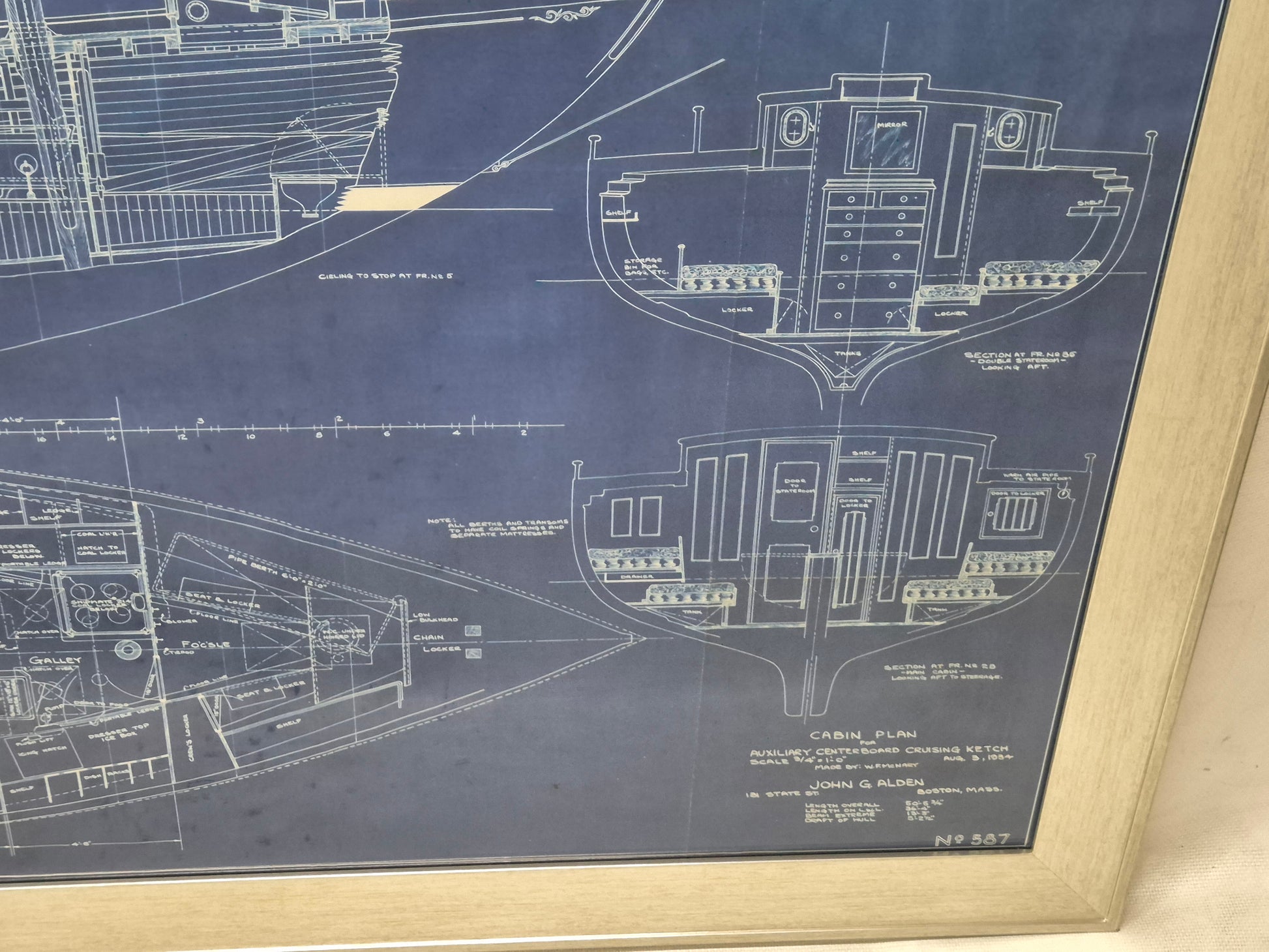

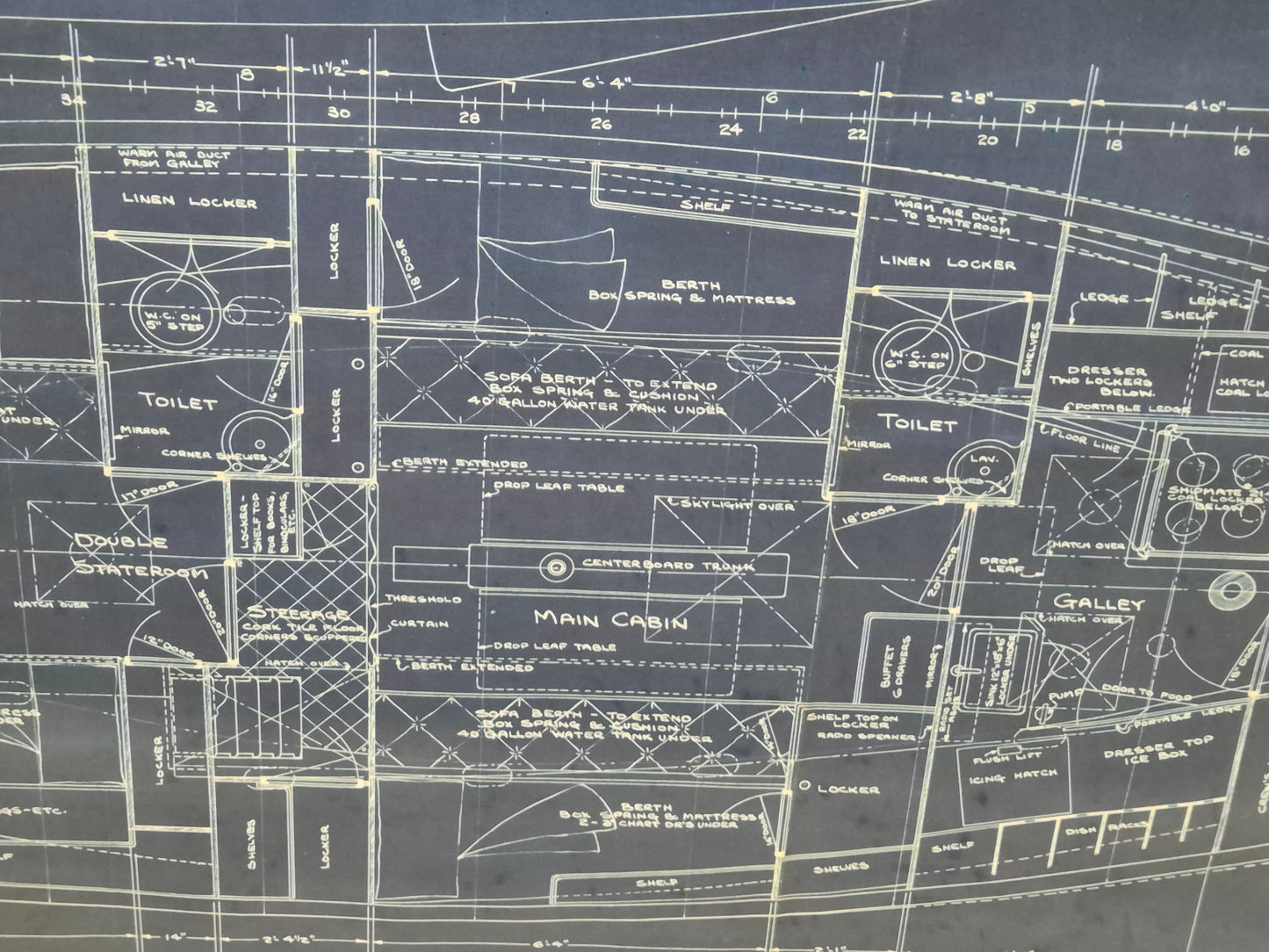

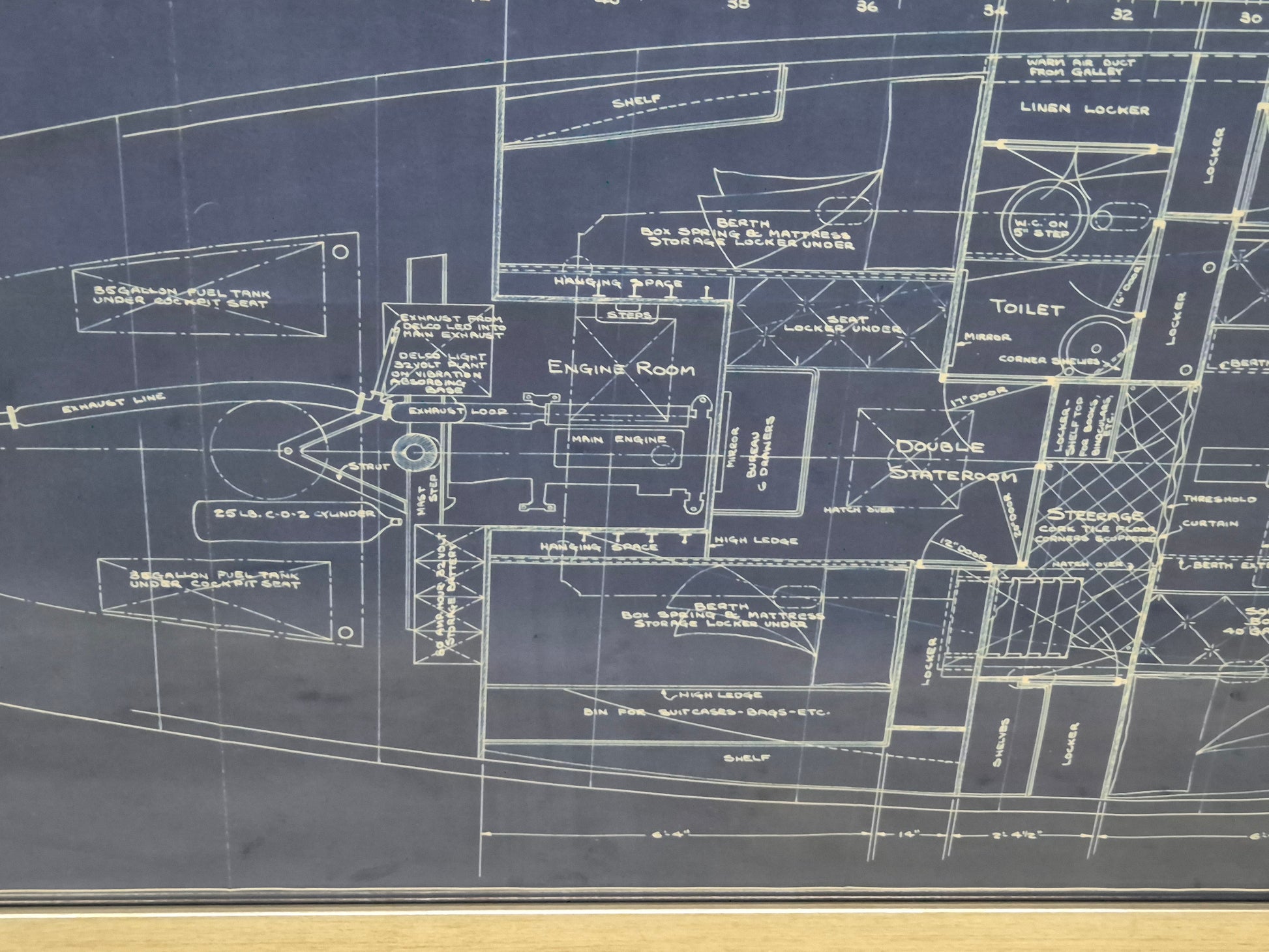

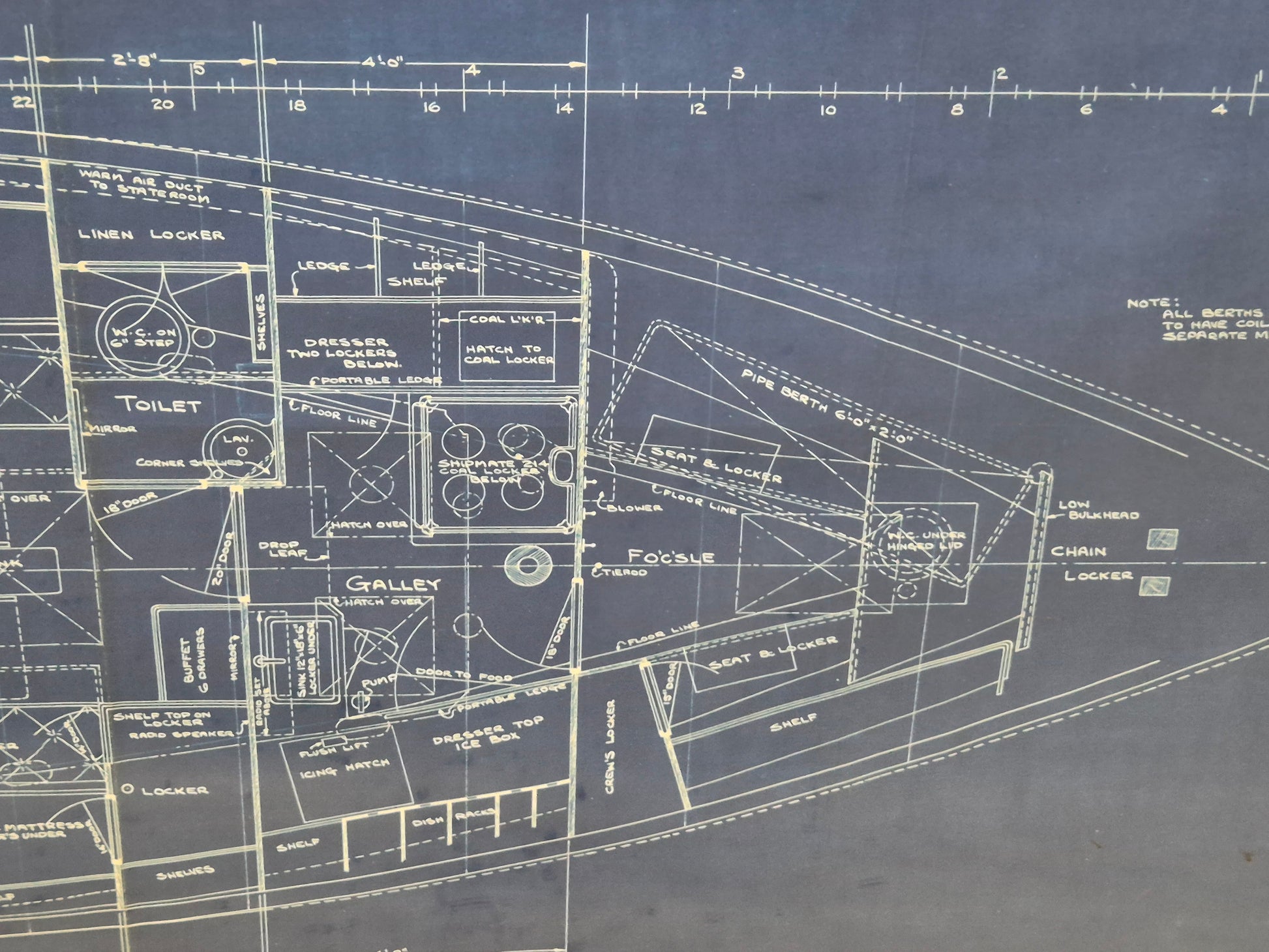

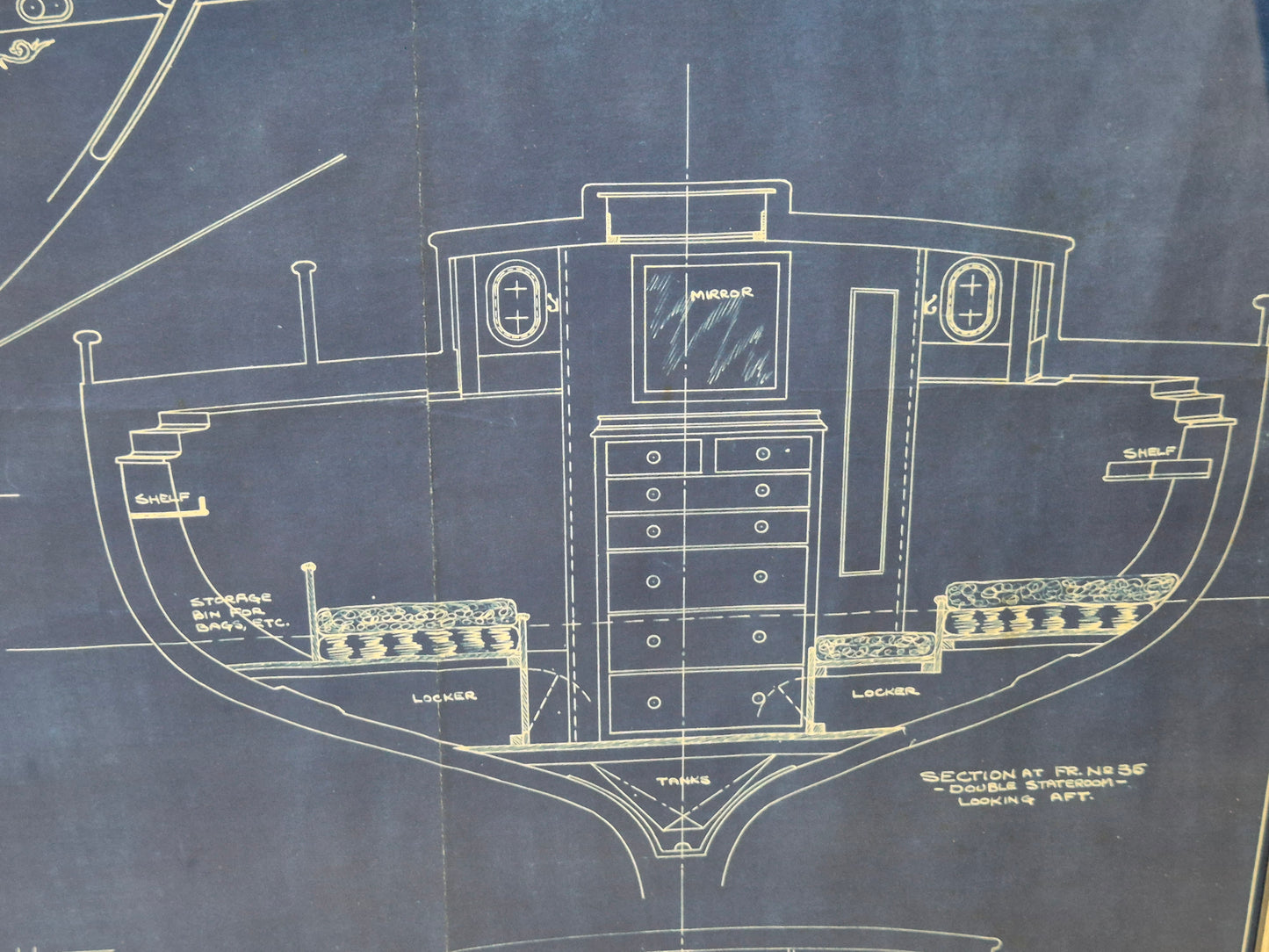

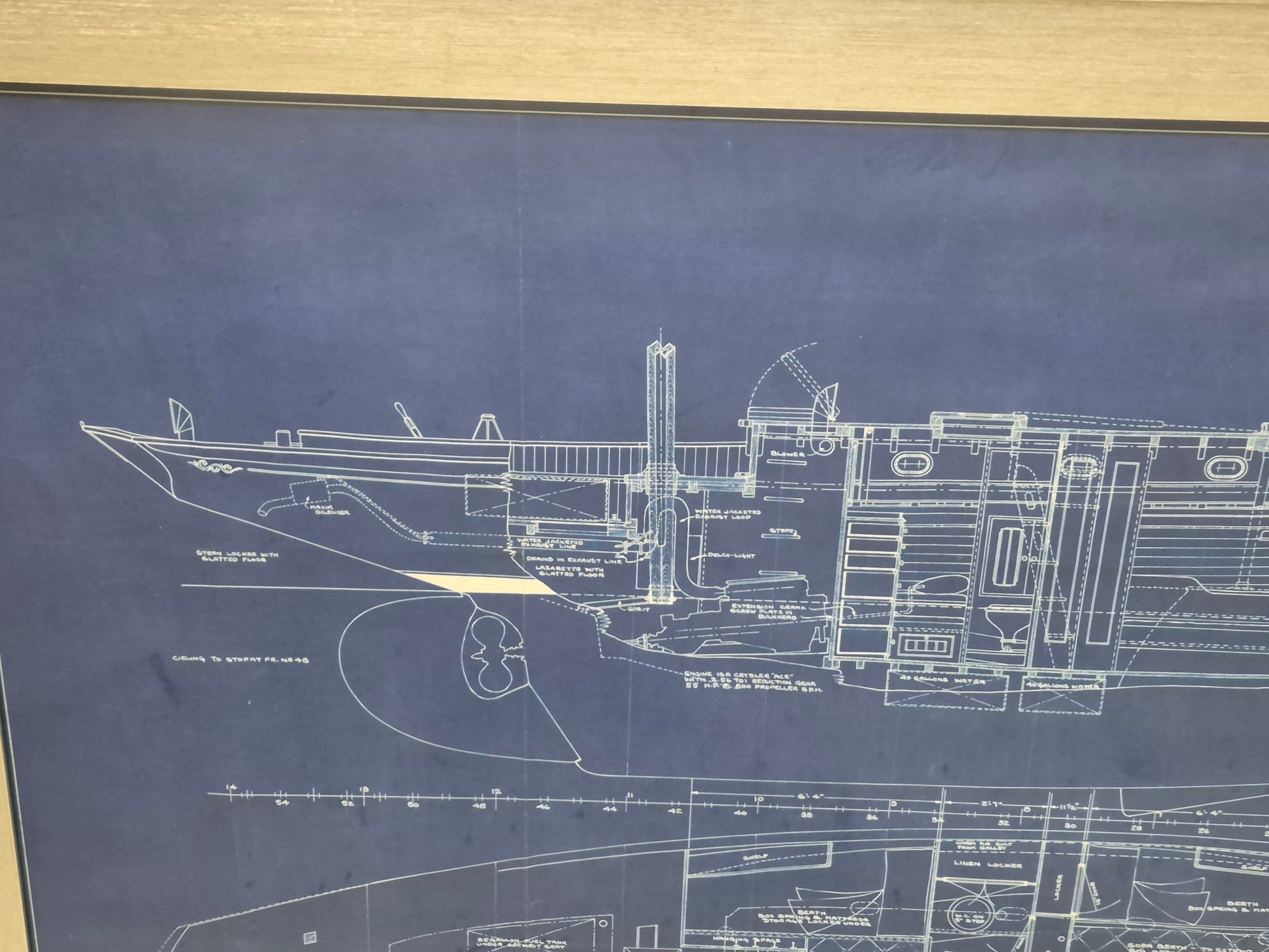

First-class piece of maritime art is this original blueprint of a sailing yacht. The legend panel reads "Cabin plan for Auxiliary" centerboard cruising ketch, scale 3/4 inch equals one foot. August 3, 1934. Made by W.F. McNary. LOA 50'5 3/4", LWL 36'4", Beam Extreme 13'3", Draft of hull 5'2 1/2". This is one of the absolute best blueprints in our spectacular offerings. It has cabins, bunks, stateroom, galley, shelves, linen closets, so many details in a big scale. So much to study and admire.

Weight:    18 lbs.

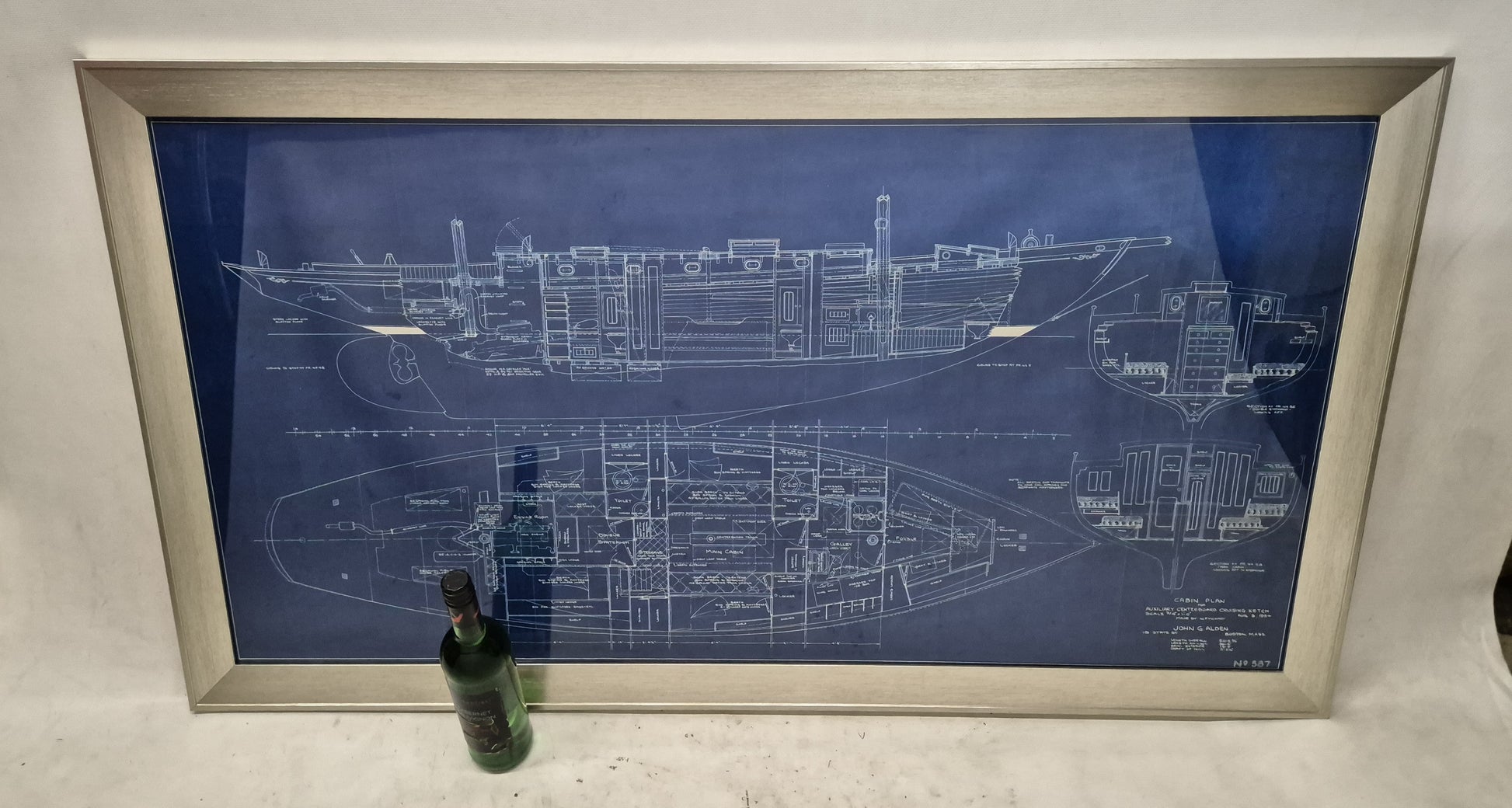

Overall Dimensions: 30"H x 53"W
Made:    America
Material:    Paper
Date:    1934
